STAND

GSF600S BANDIT 2000 (Y) USA (E03)

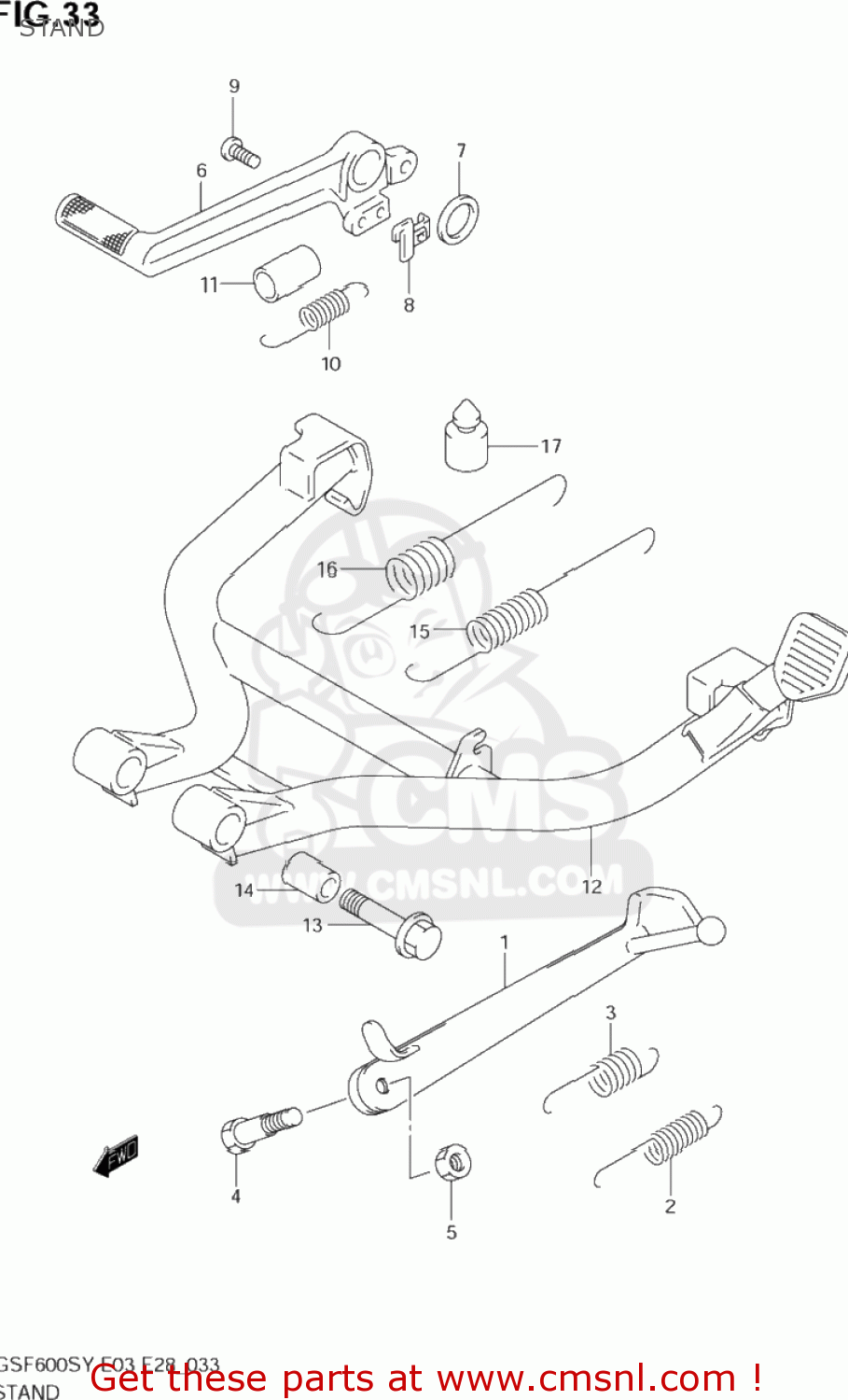

Stand diagram GSF600S BANDIT 2000 (Y) USA (E03)

STAND GSF600S BANDIT 2000 (Y) USA (E03)

STAND GSF600S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231031F00
ref: 1

STAND,PROP

€ 138.50

2

0944312048
ref: 2

SPRING

€ 22.00

3

0944319010
ref: 3

SPRING

€ 6.00

4

0911110058
ref: 4

BOLT(10X37.5)

€ 6.00

5

0831931103
ref: 5
08319-3110A

NUT

€ 3.00

6

4311131E01
ref: 6

PEDAL,BRAKE

€ 100.50

7

0916018022
ref: 7

WASHER(18X24X1)

€ 3.00

8

4356032C00
ref: 8

BRACKET,STOP LAMP SWITCH SPR

€ 3.00

9

0211205163
ref: 9
02112-0516A

SCREW

€ 2.00

10

0944313029
ref: 10

SPRING

€ 5.00

11

4326117C00
ref: 11

TUBE,BRAKE SPRING GUIDE

€ 5.50

12

4210031F00
ref: 12

STAND,CTR

€ 213.50

13

0910310126
ref: 13

BOLT(10X48)

€ 4.50

14

0918010113
ref: 14

SPACER(10X16X25.5)

€ 13.50

15

0944314059
ref: 15

SPRING

€ 9.50

16

0944322013
ref: 16

SPRING OUTER

€ 7.00

17

0932110032
ref: 17
09321-10034

CUSHION

€ 6.50
