REAR CALIPER

GSF600S BANDIT 2000 (Y) USA (E03)

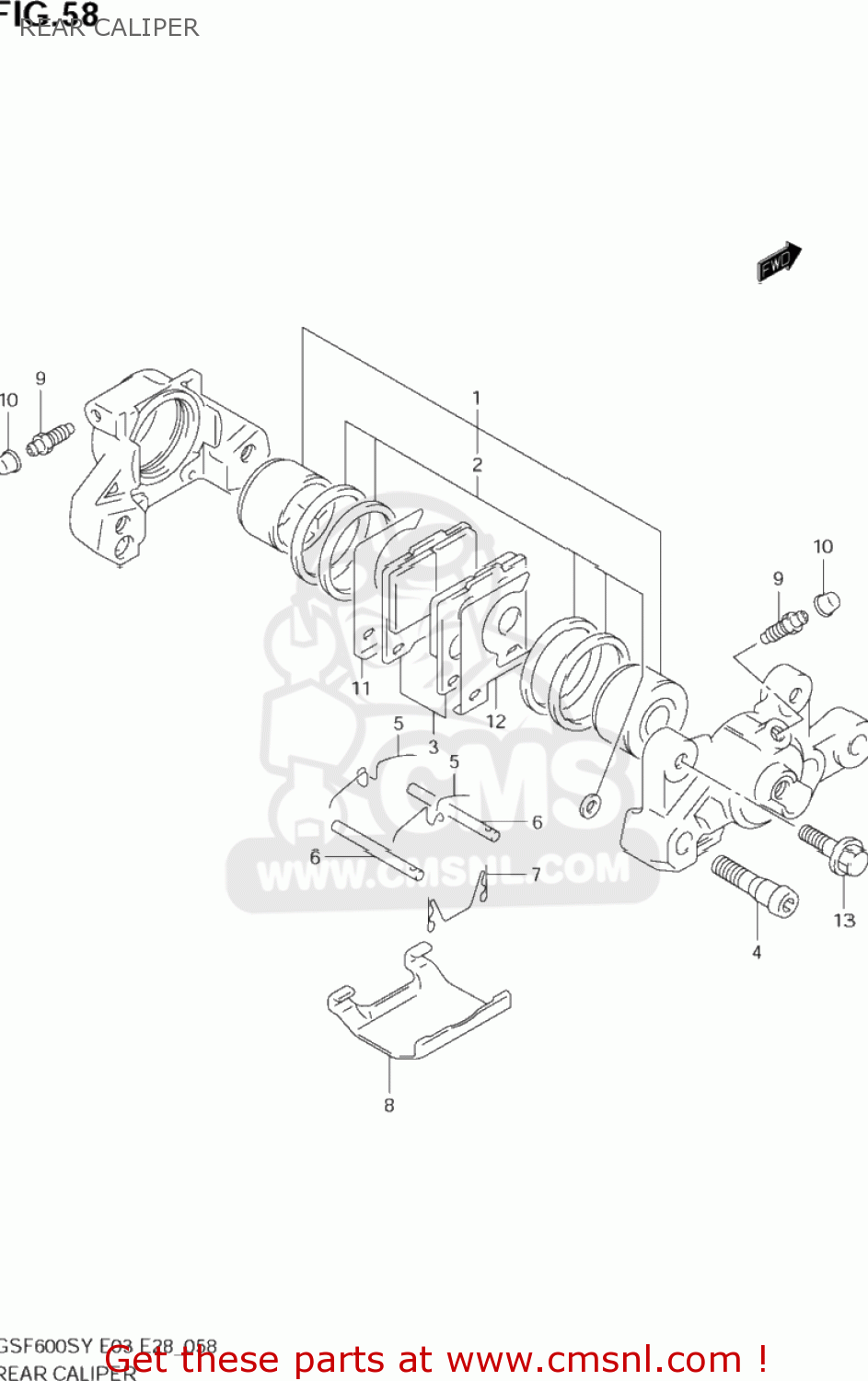

Rear caliper diagram GSF600S BANDIT 2000 (Y) USA (E03)

REAR CALIPER GSF600S BANDIT 2000 (Y) USA (E03)

REAR CALIPER GSF600S BANDIT 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910005CE0
ref:
69100-05CG0-999

CALIPER ASSEMBLY,REAR

€ 770.50

1

6910005850
ref: 1
69100-05851

PISTON SET

€ 122.50

2

6910032820
ref: 2
69101-05840

SEAL SET,PISTON

€ 26.00

3

6910105820
ref: 3

PAD SET (NAS)

€ 52.00

4

5914505C50
ref: 4

BOLT,HOUSING

€ 9.50

5

5914316700
ref: 5

SPRING

€ 7.50

6

6914146E01
ref: 6

PIN,PAD

€ 9.00

7

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

8

5915116701
ref: 8

COVER

€ 13.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5937120C00
ref: 11

SHIM,INNER

€ 7.50

12

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

13

0155008303
ref: 13
01550-0830A

BOLT

€ 3.00
