FUEL COCK

GSF600SU 1996 (T) GERMANY (E22)

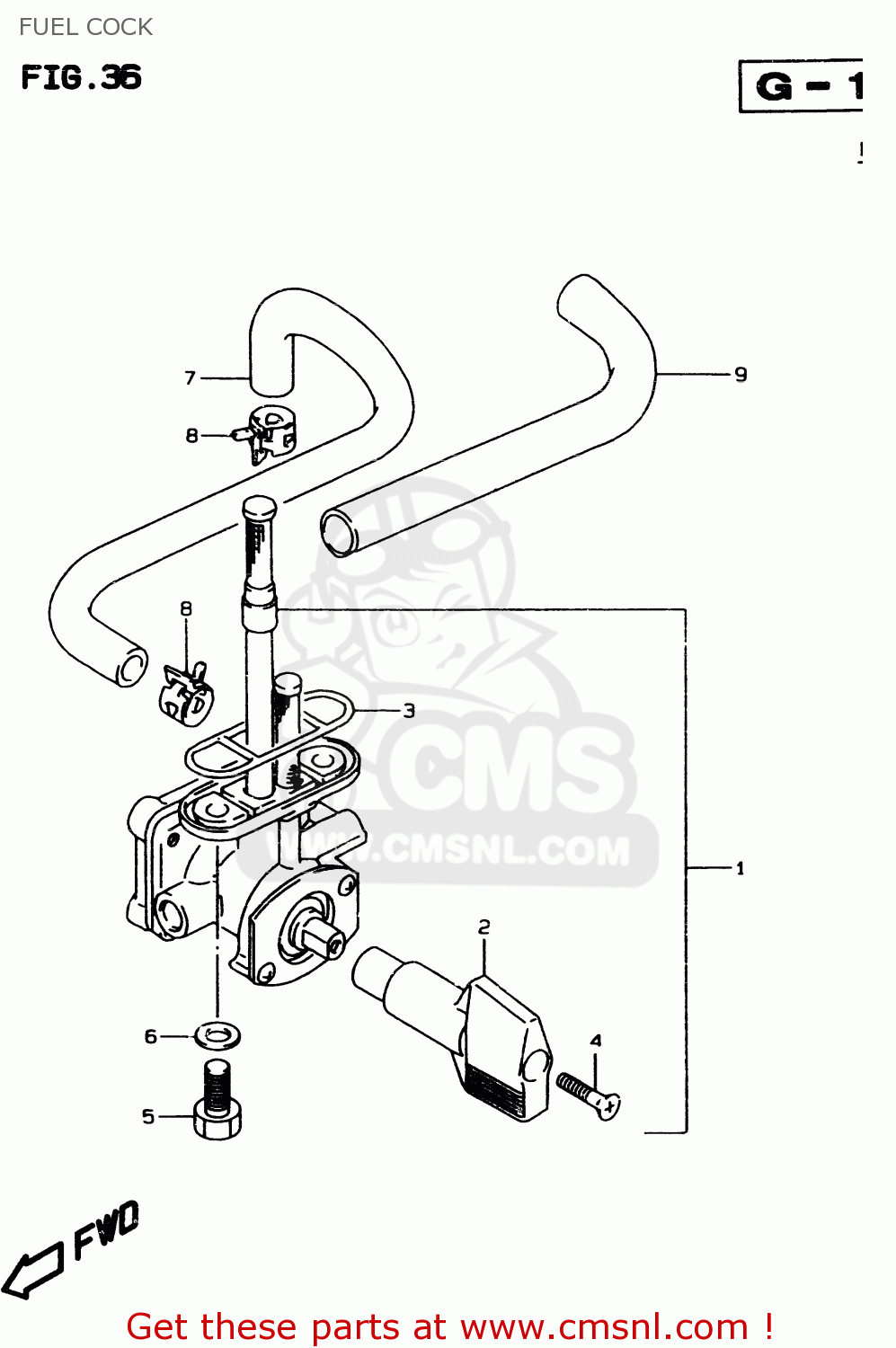

Fuel cock diagram GSF600SU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

4430026E00
ref: 1

COCK ASSEMBLY,FUEL

€ 124.00

4430626E00
ref: 2

LEVER,FUEL COCK

€ 21.50

4434887420
ref: 3

GASKET,JOINT (NAS)

€ 5.00

0212204203
ref: 4

SCREW

€ 2.00

5-1

0912806006
ref: 5-1
MODEL S

BOLT(6X20)

€ 2.00

5-2

0912806057
ref: 5-2
MODEL T/V/W

BOLT(6X20)

€ 2.00

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935570125600
ref: 7

HOSE(7X12X600)

€ 26.00

0940111407
ref: 8

CLIP

€ 2.50

0935114152600
ref: 9

PROTECTOR(14.5X15.5X600)

€ 9.00
