STARTER CLUTCH

GSF600SU 1996 (T) GERMANY (E22)

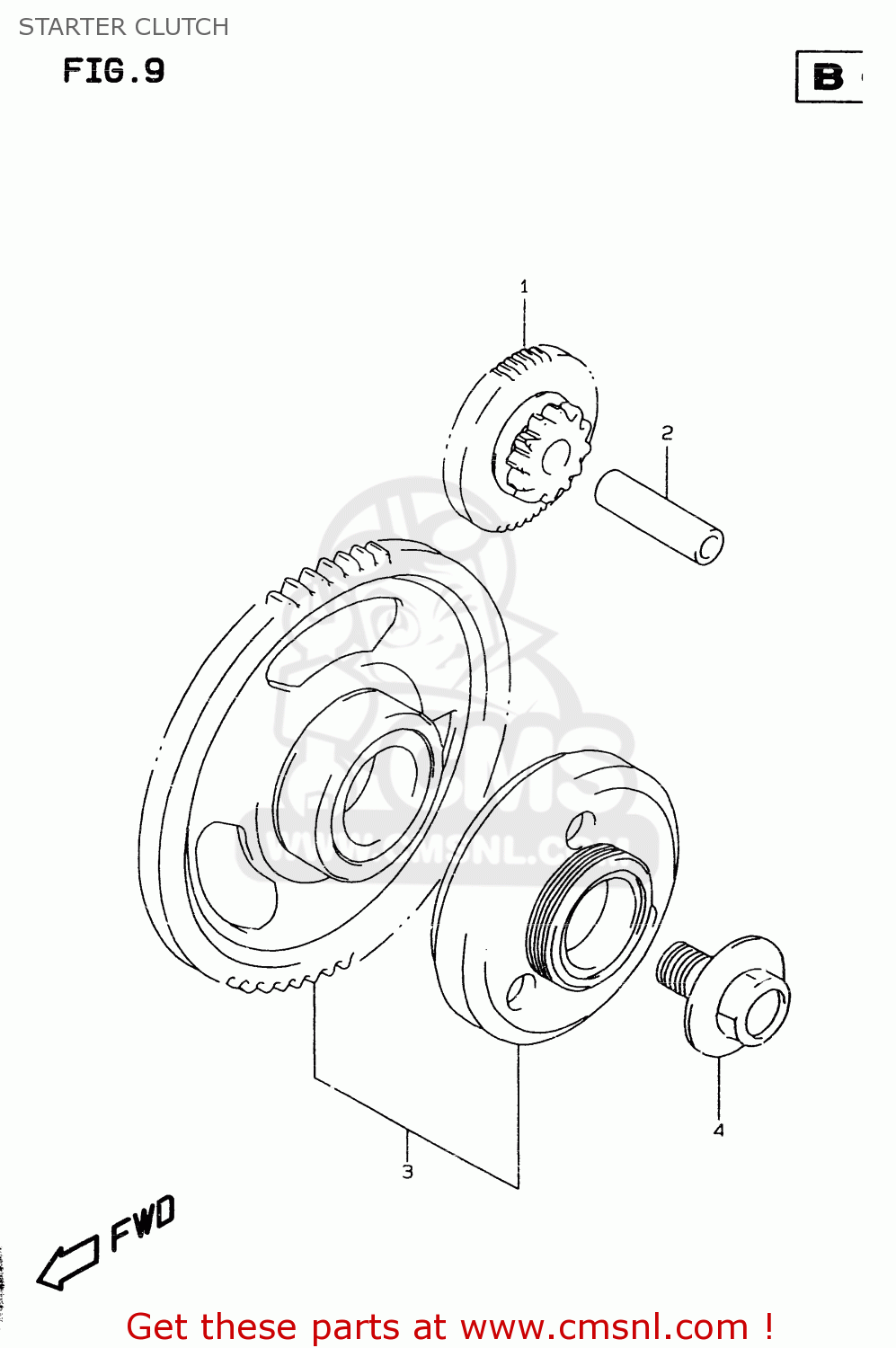

Starter clutch diagram GSF600SU 1996 (T) GERMANY (E22)

STARTER CLUTCH GSF600SU 1996 (T) GERMANY (E22)

STARTER CLUTCH GSF600SU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3
<-12600-17811

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
