OIL COOLER
GSF600SU 1996 (T) GERMANY (E22)

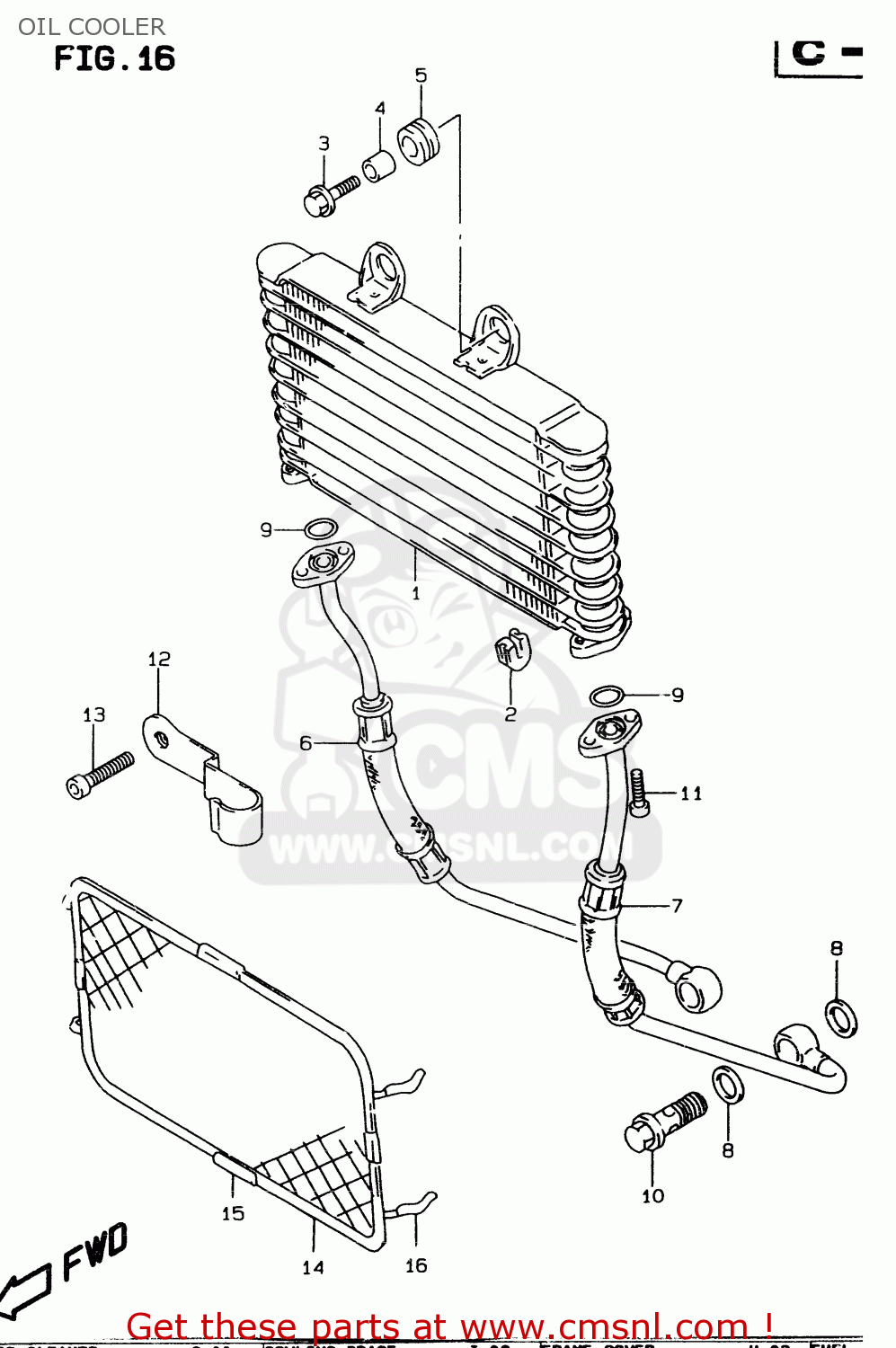

Oil cooler diagram GSF600SU 1996 (T) GERMANY (E22)
OIL COOLER GSF600SU 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1660026E00
ref: 1
COOLER ASSY,OIL
€ 1,008.50
2
1662827A00
ref: 2
CUSHION,OIL COOLER NO.2
€ 3.00
3
0911606143
ref: 3
BOLT 6X20
€ 2.00
4
0918006310
ref: 4
SPACER(6.5X10X10)
€ 2.00
5
0932010015
ref: 5
CUSHION
€ 2.50
6-1
1646026E00
ref: 6-1
MODEL S/T
HOSE,OIL COOLER,RIGHT
€ 169.50
6-2
1646026E20
ref: 6-2
MODEL V/W
HOSE COMP,OIL COOLER,RIGHT
€ 169.50
7
1647026E00
ref: 7
HOSE,OIL COOLER,LEFT
€ 173.00
8
0916816002
ref: 8
GASKET(16X22X2) (NAS)
€ 2.00
9-1
0928012008
ref: 9-1
MODEL S/T
O RING(D:2.4,ID:12.3)
€ 3.00
9-2
0928012012
ref: 9-2
MODEL V/W
O RING(D:2.4,ID:11.8)
€ 5.00
10
0936016002
ref: 10
BOLT UNION
€ 12.00
11
0713006163
ref: 11
BOLT,OIL FILLE
€ 3.00
12
1649026E00
ref: 12
MODEL V/W
CLAMP,OIL HOSE
€ 6.00
13
0713006123
ref: 13
MODEL V/W
BOLT,STRANGER
€ 2.50
14
1665026E00
ref: 14
MODEL W
GUARD COMP,OIL COOLER
€ 59.00
15
1665427E00
ref: 15
MODEL W
PROTECTOR,CTR
€ 3.00
16
0935230503600
ref: 16
MODEL W,L:600->40
HOSE(3X5X600)
€ 8.00
