SIGNAL GENERATOR

GSF600SU 1996 (T) GERMANY (E22)

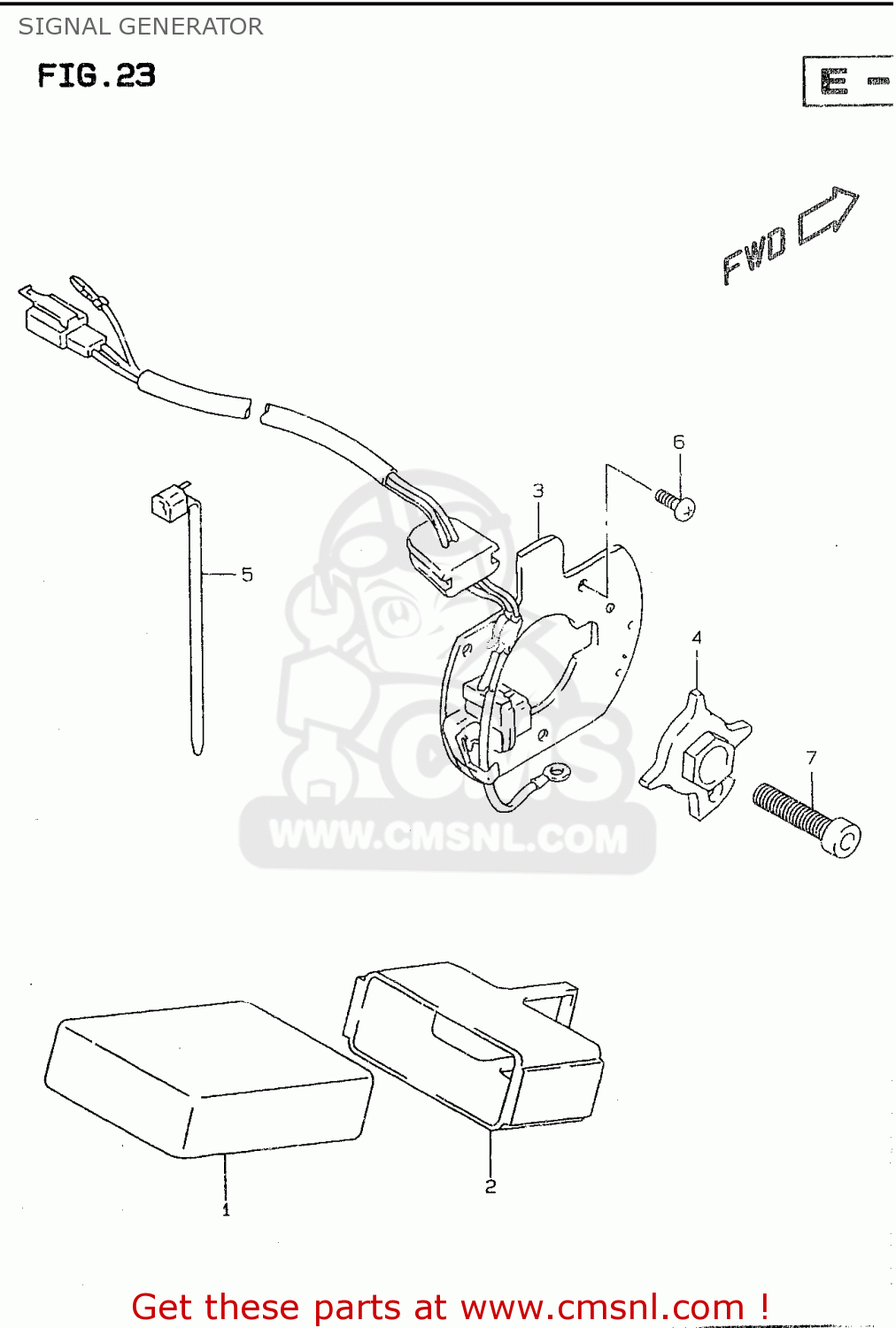

Signal generator diagram GSF600SU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3290026E00
ref: 1-1

IGNITOR ASSY

€ 682.50

1-2

3290026E20
ref: 1-2
E18

IGNITER ASSY

€ 533.00

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5-1

0940714403
ref: 5-1
MODEL S

CLAMP(L:125)

€ 2.50

5-2

0940711401
ref: 5-2
MODEL T/V/W

CLAMP(L:95)

€ 2.50

0211205103
ref: 6

SCREW

€ 2.00

0713008303
ref: 7

BOLT

€ 3.00
