RIDER HANDLE

GSF600SU 1996 (T) GERMANY (E22)

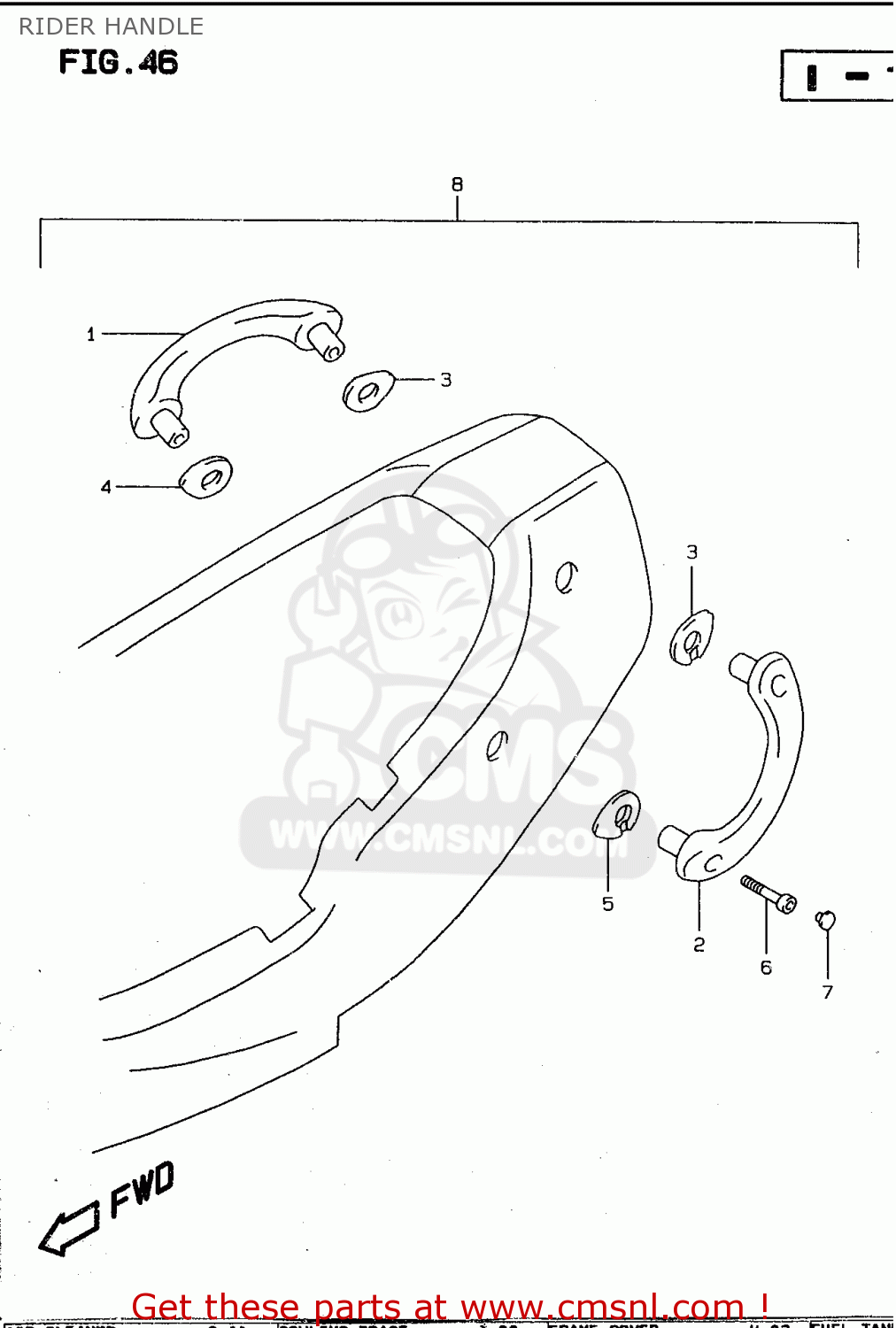

Rider handle diagram GSF600SU 1996 (T) GERMANY (E22)

RIDER HANDLE GSF600SU 1996 (T) GERMANY (E22)

RIDER HANDLE GSF600SU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

4621126E00019
ref: 1-1
GSF600ST/SUT

HANDLE,PILLION RIDER,R

€ 87.50

1-2

4621126E0035W
ref: 1-2
GSF600SV/SUV MODEL W

HANDLE,PILLION RIDER,R

€ 83.00

2-1

4622126E00019
ref: 2-1
GSF600ST/SUT

HANDLE,PILLION RIDER,L

€ 87.50

2-2

4622126E0035W
ref: 2-2
GSF600SV/SUV MODEL W

HANDLE,PILLION RIDER,L

€ 101.00

3

4623626E00
ref: 3
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE UPR

€ 7.50

4

4623826E00
ref: 4
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE LWR,R

€ 14.00

5

4623926E00
ref: 5
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE LWR,L

€ 7.50

6

0713008453
ref: 6
GSF600ST/SUT/SV/SUV

BOLT

€ 3.00

7

0925006004
ref: 7
GSF600ST/SUT/SV/SUV

CAP(OD:14.5)

€ 1.50

8-1

4620026810019
ref: 8-1
OPT GSF600S/US/T/UT

HANDLE SET,PILLION RIDER(BLACK

€ 159.50

8-2

462002681035W
ref: 8-2
OPT GSF600V/UV

HANDLE SET,PILLION RIDER(GRAY)

€ 154.50
