ALTERNATOR
GSF600SU 1997 (V) GERMANY (E22)

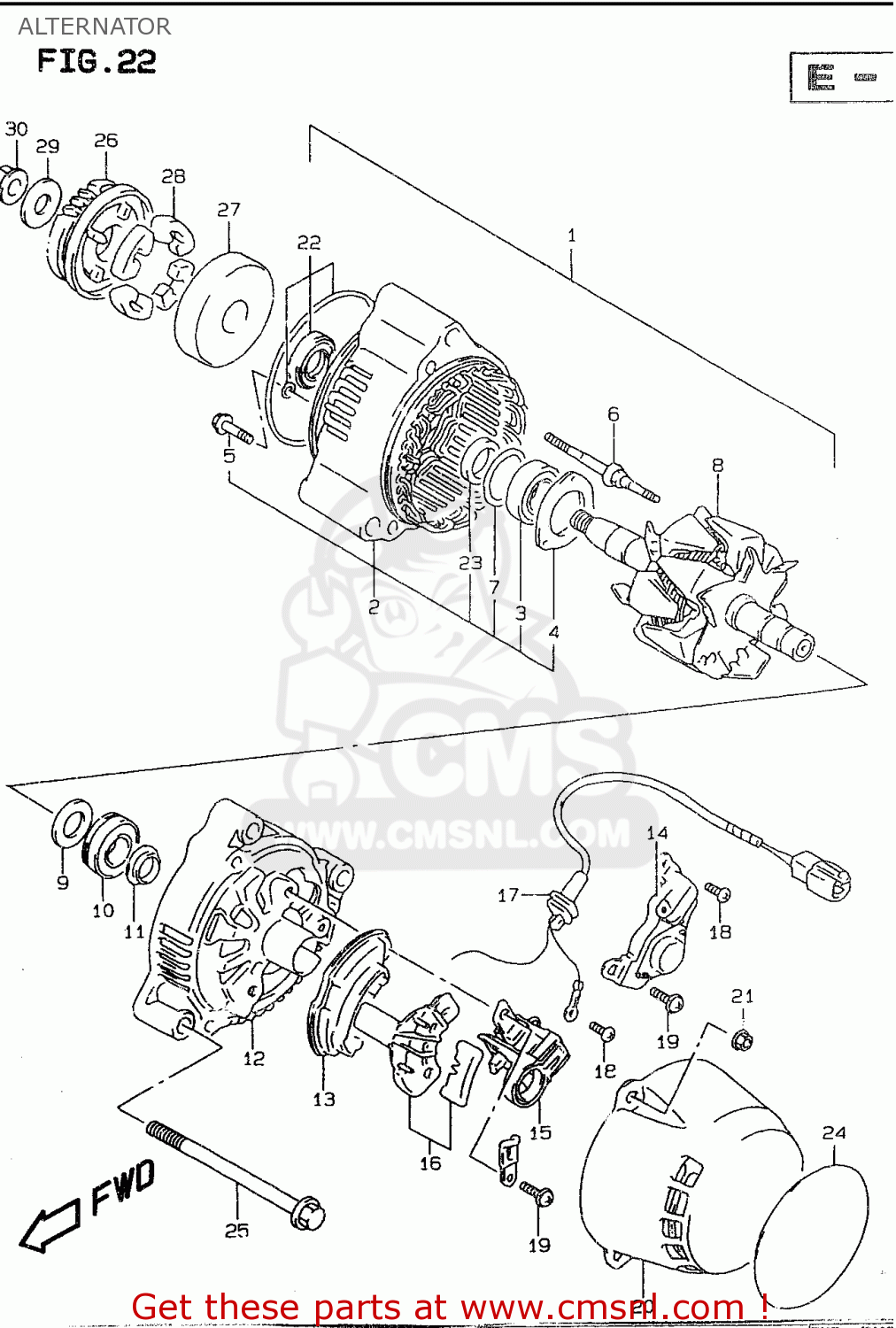

Alternator diagram GSF600SU 1997 (V) GERMANY (E22)
ALTERNATOR GSF600SU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3140017C04
ref: 1
ALTERNATOR ASSY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3158548B00
ref: 4
RETAINER
€ 9.00
5
3158648B00
ref: 5
SCREW,BEARING RETAINER
€ 3.50
6
3158785250
ref: 6
STUD BOLT
€ 9.00
7
3161348B00
ref: 7
COVER,BEARING
€ 5.50
8
3171048B04
ref: 8
ALTERNATOR ASSY
€ 277.50
9
3161382610
ref: 9
COVER,BEARING
€ 3.50
10
3161248B00
ref: 10
BEARING
€ 42.50
11
3161327A10
ref: 11
COVER(2)
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
€ 225.50
14
3250027A00
ref: 14
REGULATOR
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
€ 55.50
16
3168717E00
ref: 16
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
€ 22.00
18
0211204063
ref: 18
SCREW 4X6
€ 2.00
19
3168827A00
ref: 19
SCREW
€ 2.50
20
3161448B00
ref: 20
COVER
€ 67.50
21
0831610053
ref: 21
NUT
€ 2.50
22
3178027X50
ref: 22
SERVICE KIT(A)
€ 47.50
23
3177606B00
ref: 23
SPACER
€ 22.00
24
3161527E00
ref: 24
<-31615-17C00
PLATE,ALTERNATOR ABSORBER
€ 10.00
25
0155008903
ref: 25
BOLT
€ 3.50
26-1
2273019C01
ref: 26-1
MODEL T/V
GEAR,GENERATOR DRIVEN
€ 112.50
26-2
2273019C02
ref: 26-2
MODEL W
GEAR,GENERATOR DRIVEN
€ 112.50
27-1
2273327A04
ref: 27-1
MODEL T/V
HOUSING,GENERATOR GEAR
€ 95.00
27-2
2273327A05
ref: 27-2
MODEL W
HOUSING,GENERATOR GEAR DAMPER
€ 95.00
28
2123106B00
ref: 28
DAMPER,GENERATOR DRIVEN
€ 5.50
29
0821110283
ref: 29
WASHER
€ 3.00
30
0831620103
ref: 30
NUT
€ 3.50
