REAR FENDER (MODEL S)

GSF600SU 1997 (V) GERMANY (E22)

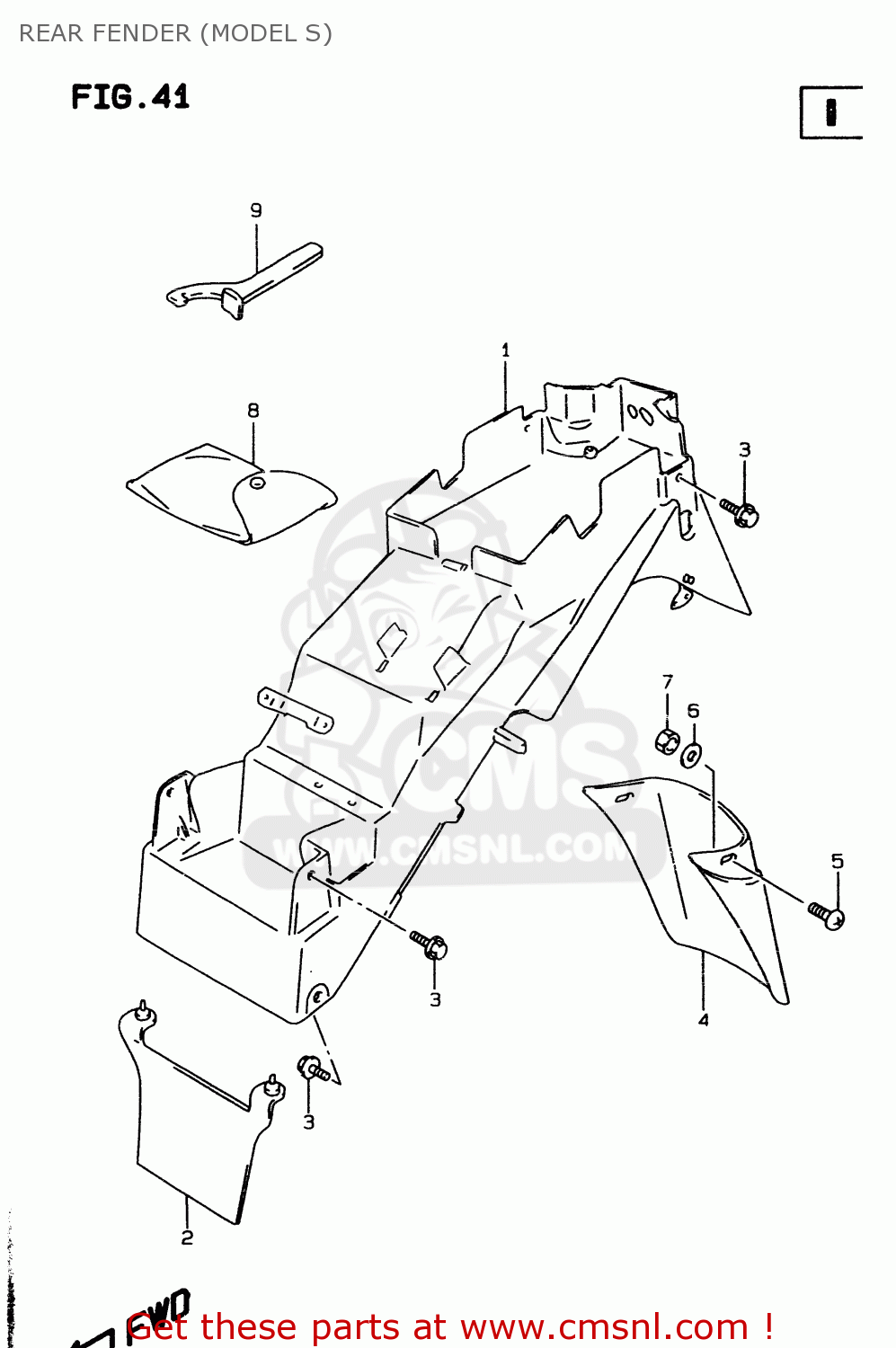

Rear fender (model s) diagram GSF600SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

6311026E00
ref: 1-1

FENDER COMP,RR

€ 141.50

1-2

6311026E10
ref: 1-2
E18

FENDER, REAR

€ 0.00

1-3

6311026E20
ref: 1-3
E22

FENDER, REAR

€ 141.50

6341126E00
ref: 2

MUDGUARD,RR FENDER FR

€ 21.00

0911106066
ref: 3

BOLT(6X16)

€ 2.50

4-1

6331126E00
ref: 4-1
E18

EXTENSION, REAR FENDER

€ 29.00

4-2

6331126E10
ref: 4-2
E22

EXTENSION, REAR FENDER

€ 25.00

0214206163
ref: 5
E18,E22

SCREW

€ 2.50

0916006006
ref: 6
E18,E22

WASHER

€ 2.00

0831921068
ref: 7
E18,E22

NUT 6MM

€ 2.00

0980021010
ref: 8

TOOL ASSY

€ 53.00

0982200005
ref: 9

CLAMP

€ 22.00
