TURN SIGNAL LAMP (MODEL T/V/W)

GSF600SU 1997 (V) GERMANY (E22)

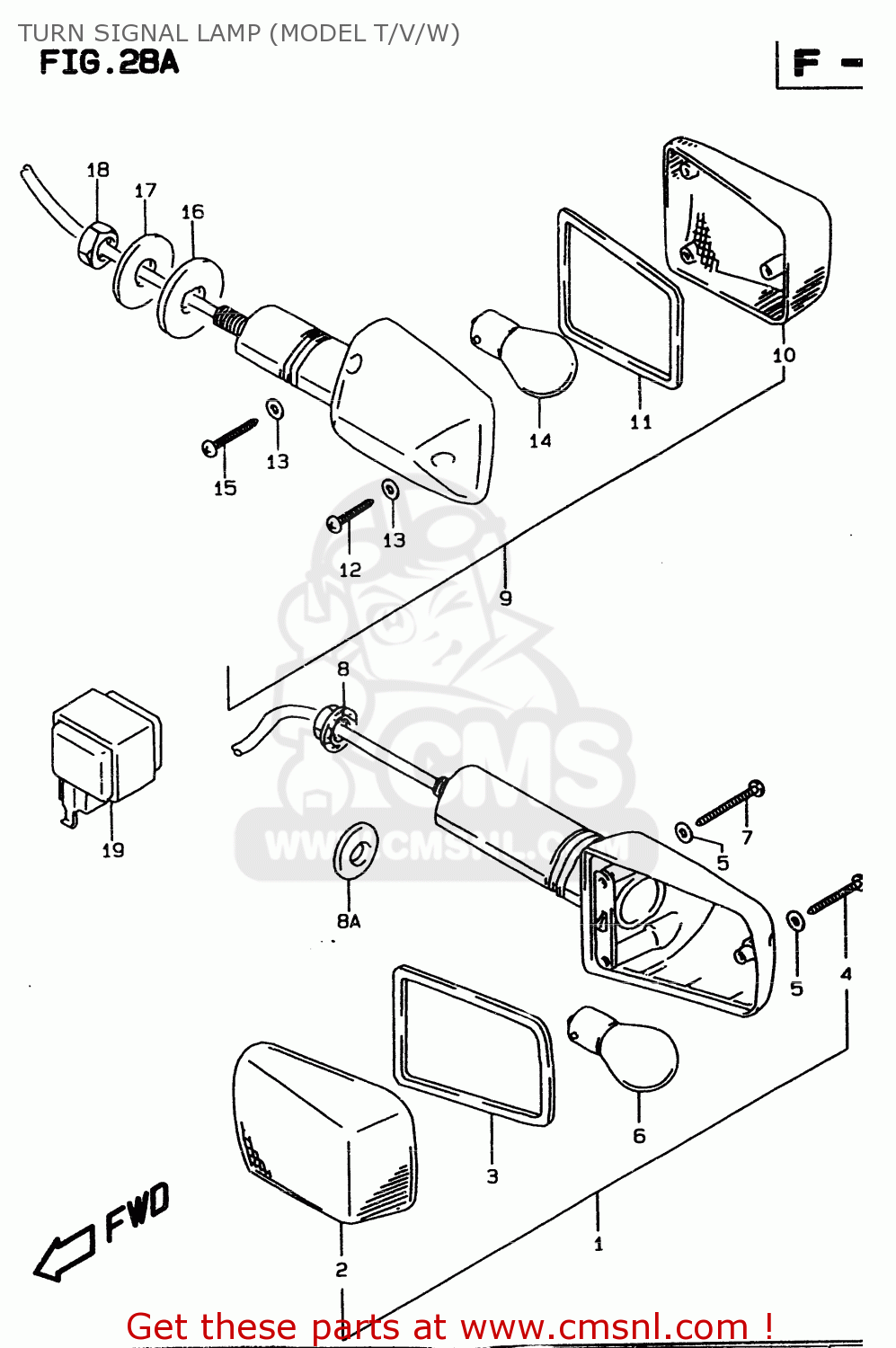

Turn signal lamp (model t/v/w) diagram GSF600SU 1997 (V) GERMANY (E22)

TURN SIGNAL LAMP (MODEL T/V/W) GSF600SU 1997 (V) GERMANY (E22)

TURN SIGNAL LAMP (MODEL T/V/W) GSF600SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3560129EC0
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 99.00

2

3561217C20
ref: 2

LENS

€ 8.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 4.50

4

3572540511
ref: 4

SCREW

€ 2.00

5

3562727A02
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

3562327A00
ref: 7

SCREW(3X30)

€ 2.00

8

0831610103
ref: 8

NUT

€ 2.00

8A

3567427A01
ref: 8A
GSF600ST/SV/SW/SUT/S

GROMMET

€ 17.50

9-1

3560321E30
ref: 9-1

LAMP ASSY,RR TURNSIGNAL

€ 115.00

9-2

3560321EC0
ref: 9-2
E18

LAMP ASSY,RR TURNSIGNAL

€ 93.50

10

3565217C20
ref: 10

LENS

€ 8.50

11

3561327A00
ref: 11

GASKET (NAS)

€ 4.50

12

3572540511
ref: 12

SCREW

€ 2.00

13

3562727A02
ref: 13

GASKET (NAS)

€ 2.00

14

0947112045
ref: 14

BULB(12V21W)

€ 5.00

15

3562327A00
ref: 15

SCREW(3X30)

€ 2.00

16

3569517C00
ref: 16

SPACER,RR TURNSIGNAL

€ 4.00

17

0916010501
ref: 17

WASHER(10.5X30X2.3)

€ 3.00

18

0831000103
ref: 18

NUT

€ 3.00

19-1

3861045D01
ref: 19-1
MODEL T/V

RELAY ASSY,TURNSIGNAL LAMP

€ 89.50

19-2

3861026E00
ref: 19-2
MODEL W

RELAY ASSY

€ 62.00
