FRONT DAMPER
GSF600SU 1997 (V) GERMANY (E22)

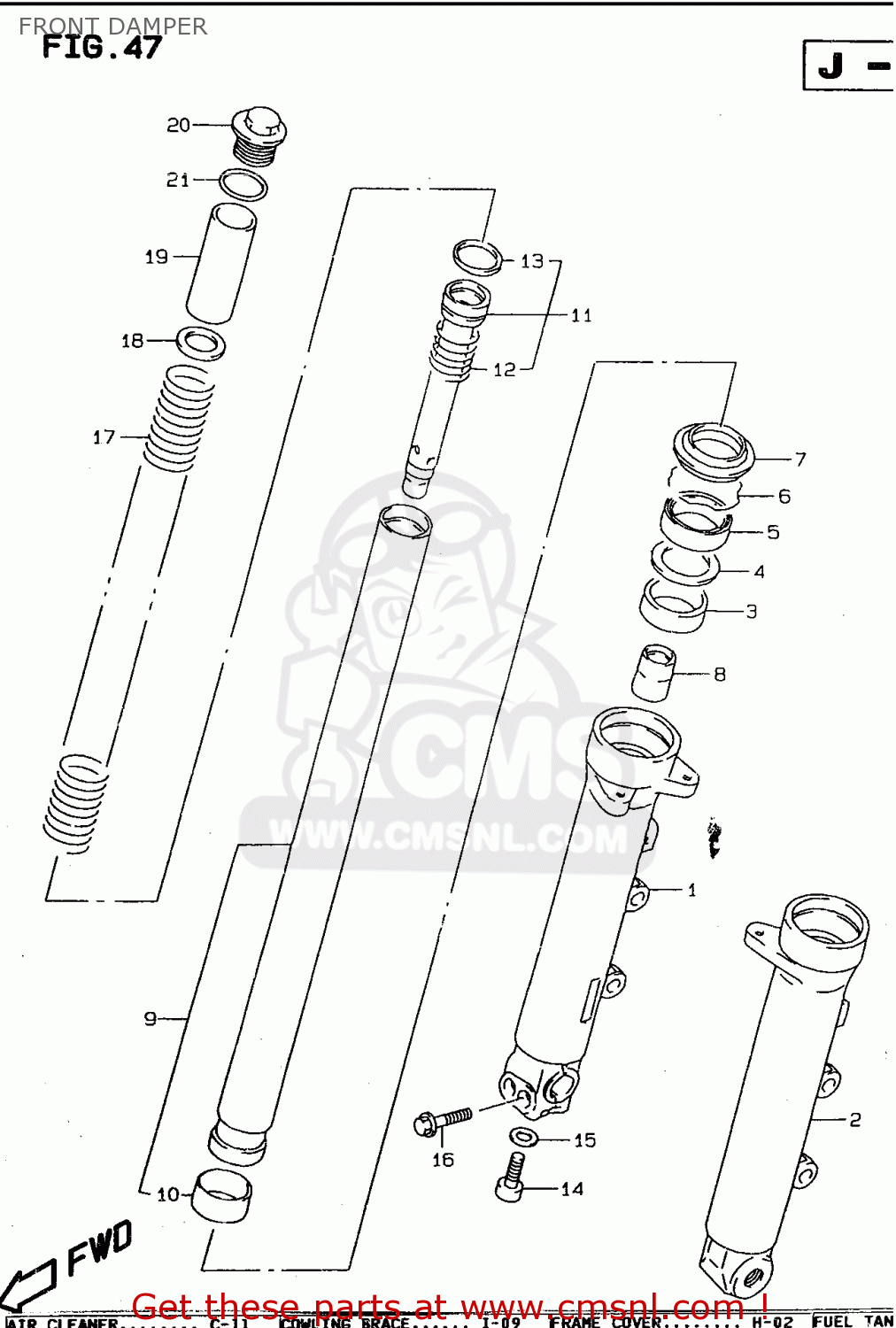

Front damper diagram GSF600SU 1997 (V) GERMANY (E22)
FRONT DAMPER GSF600SU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5110326E01
ref: 0
DAMPER ASSY,FR FORK,R
€ 750.00
0
5110426E01
ref: 0
DAMPER ASSY, FRONT FORK LH
€ 352.00
1
5113026E00
ref: 1
TUBE,OUTER,R
€ 375.00
2
5114026E00
ref: 2
TUBE,OUTER,L
€ 357.00
3
5116728C00
ref: 3
METAL,SLIDE
€ 20.50
4
5115805A00
ref: 4
WASHER,FORK OIL SEAL
€ 5.00
5
5115327C20
ref: 5
SEAL,OIL
€ 22.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
€ 5.50
7
5117346E00
ref: 7
SEAL,DUST
€ 20.00
8
5119506C00
ref: 8
PIECE,OIL LOCK
€ 13.00
9
5111026E01
ref: 9
TUBE,INNER
€ 372.00
10
5112128C00
ref: 10
PISTON
€ 23.00
11
5114626E00
ref: 11
CYLINDER
€ 73.00
12
5117706C00
ref: 12
SPRING,REBOUND
€ 10.50
13
5119606C00
ref: 13
RING,PISTON
€ 6.50
14
5114716510
ref: 14
BOLT,FORK CYLINDER(10X25)
€ 3.50
15
5114841310
ref: 15
GASKET (NAS)
€ 2.50
16
0155008457
ref: 16
BOLT
€ 4.00
17
5117126E00
ref: 17
SPRING,MAIN
€ 63.00
18
5135610D03
ref: 18
WASHER(22.5X35.9X1.6)
€ 3.00
19
5117610D40
ref: 19
SPACER,SPRING
€ 16.00
20
5135110D00
ref: 20
CAP,FORK
€ 50.00
21
0928032001
ref: 21
O RING(D:3.5,ID:31.7)
€ 2.00
