REAR SWINGING ARM
GSF600SU 1997 (V) GERMANY (E22)

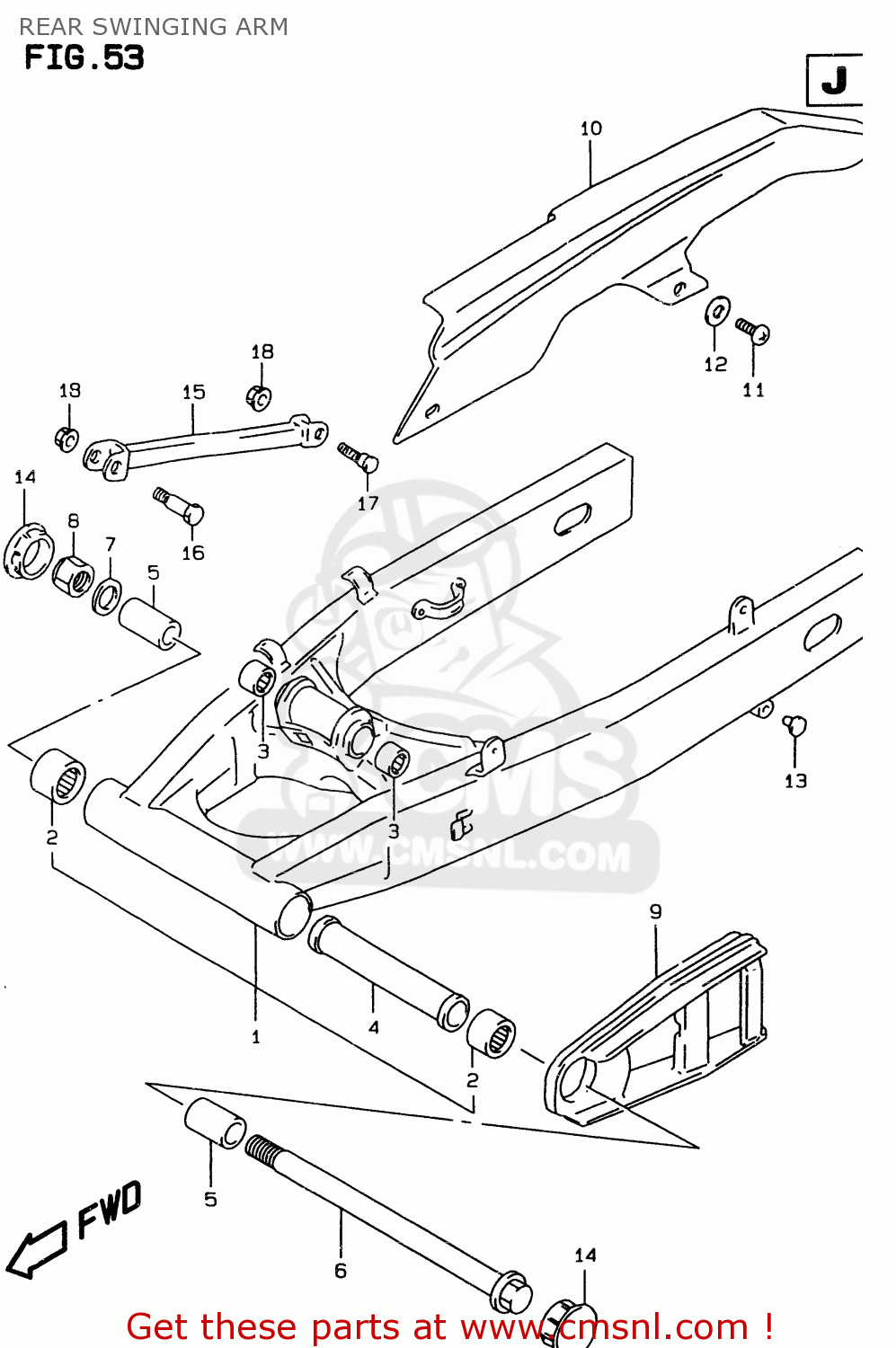

Rear swinging arm diagram GSF600SU 1997 (V) GERMANY (E22)
REAR SWINGING ARM GSF600SU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6100026E020FP
ref: 1
SWINGINGARM ASSY,RR
€ 791.50
2
0926325059
ref: 2
BEARING(25X33X35)
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0918020108
ref: 4
SPACER(20.8X27.2X146)
€ 21.50
5
6125121E00
ref: 5
SPACER,RR SWGARM PIVOT
€ 8.50
6
6121131E00
ref: 6
SHAFT,RR SWINGINGARM PIVOT
€ 53.00
7
0916018030
ref: 7
WASHER(18.5X28X2.6)
€ 2.50
8
0915918007
ref: 8
NUT
€ 14.00
9
6127321E01
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
€ 30.50
10
6131045D12
ref: 10
CASE,CHAIN
€ 104.00
11
0214206123
ref: 11
SCREW 6X12
€ 2.00
12
0916906026
ref: 12
WASHER
€ 2.00
13
0925008016
ref: 13
CAP(OD:12)
€ 2.50
14
4358521E00
ref: 14
CAP,FRAME PIVOT
€ 9.00
15
6431010D00019
ref: 15
TORQUELINK,RR
€ 26.50
16
0911110051
ref: 16
BOLT(10X39)
€ 8.50
17
0910010187
ref: 17
BOLT(10X34)
€ 4.50
18
0831931107
ref: 18
NUT
€ 3.00
