CRANKCASE COVER (MODEL Z)

GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

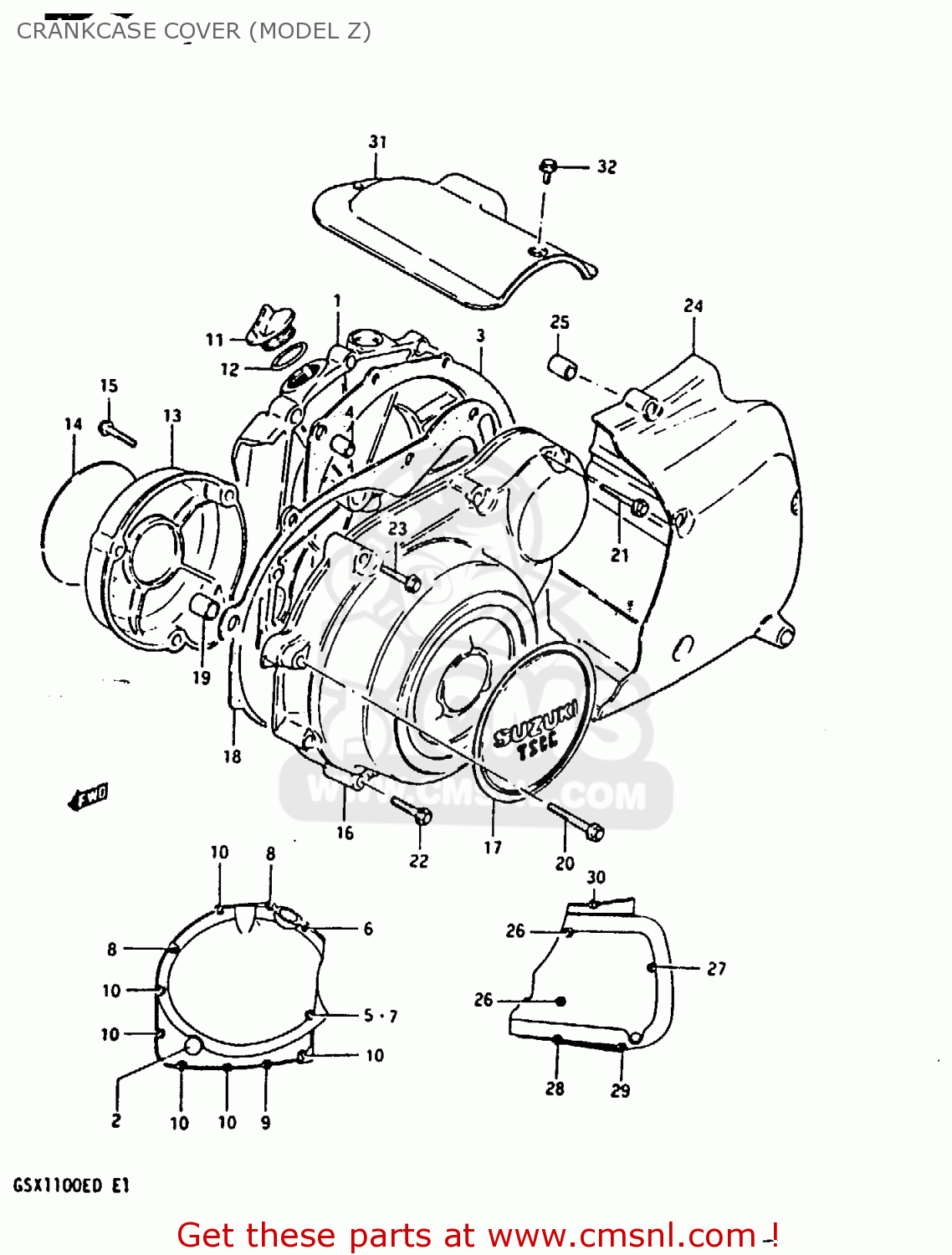

Crankcase cover (model z) diagram GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE COVER (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE COVER (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1134049201
ref: 1

COVER,CLUTCH

€ 250.00

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148249201
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 39.00

4

0421109129
ref: 4

PIN

€ 2.00

5

0916806009
ref: 5

GASKET (NAS)

€ 2.00

6

0154706408
ref: 6

BOLT (6X40)

€ 2.50

7

0154706358
ref: 7

BOLT (6X35)

€ 2.50

8

0154706308
ref: 8

BOLT (6X30)

€ 2.50

9

0154706258
ref: 9

BOLT

€ 2.50

10

0154706208
ref: 10

BOLT (6X20)

€ 2.50

11

0925930001
ref: 11

CAP

€ 8.50

12

0928032005
ref: 12

O RING(D:2.2,ID:32)

€ 2.00

13

1138149202
ref: 13

COVER,CONTACT BREAKER

€ 49.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

0154705308
ref: 15

BOLT (5X30)

€ 2.00

16

1135149201
ref: 16

COVER,MAGNETO

€ 186.00

17

6823349500
ref: 17

EMBLEM,MAGNETO COVER

€ 23.50

18

1148349200
ref: 18

GASKET,MAGNETO COVER (MCA)

€ 13.00

19

0920613001
ref: 19

PIN

€ 2.50

20

0154706458
ref: 20

BOLT

€ 2.50

21

0154706408
ref: 21

BOLT (6X40)

€ 2.50

22

0154706358
ref: 22

BOLT (6X35)

€ 2.50

23

0154706308
ref: 23

BOLT (6X30)

€ 2.50

24

1136049201
ref: 24

COVER,ENGINE SPROCKET

€ 127.00

25

0421109129
ref: 25

PIN

€ 2.00

26

0154706958
ref: 26

BOLT 6X95

€ 4.00

27

0154706858
ref: 27

BOLT (6X85)

€ 2.50

28

0154706708
ref: 28

BOLT (6X70)

€ 2.50

29

0154706558
ref: 29

BOLT (6X55)

€ 2.50

30

0154706308
ref: 30

BOLT (6X30)

€ 2.50

31

1138249002
ref: 31

COVER,STARTER MOTOR

€ 43.00

32

0154705088
ref: 32

BOLT

€ 2.00
