STARTING MOTOR (GSX1100Z/EZ/D/ED/XD/EXD)

GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

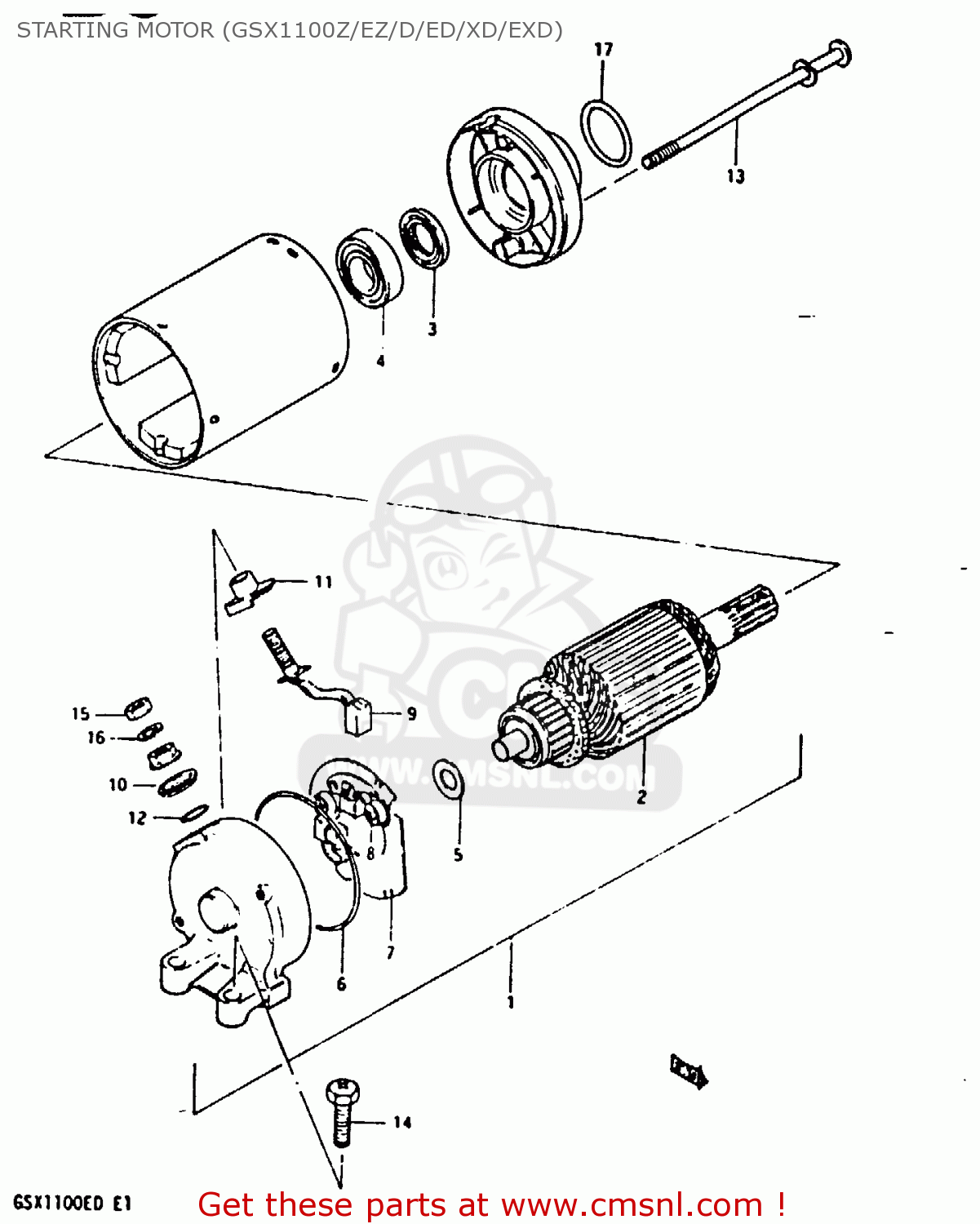

Starting motor (gsx1100z/ez/d/ed/xd/exd) diagram GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTING MOTOR (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTING MOTOR (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

3110049210
ref: 1

MOTOR ASSEMBLY,STARTING

€ 704.50

2

3131149210
ref: 2

ARMATURE

€ 255.00

3

3115349210
ref: 3

SEAL,OIL

€ 15.00

4

3115545010
ref: 4

BEARING

€ 21.00

5

3136147010
ref: 5

SHIM,ARMATURE

€ 3.50

6

3126444110
ref: 6

O RING

€ 8.00

7

3113244110
ref: 7

HOLDER,BRUSH

€ 47.00

8

3113565010
ref: 8

SPRING

€ 3.00

9

3113044110
ref: 9

BRUSH (+)

€ 12.50

10

3117244110
ref: 10

BUSHING (1)

€ 6.00

11

3117144110
ref: 11

BUSH,NO.2

€ 8.00

12

3114344110
ref: 12

O-RING

€ 3.00

13

3128144110
ref: 13

BOLT,STARTING MOTOR HOUSING

€ 11.50

14

0912806024
ref: 14

SCREW (6X25)

€ 2.50

15

0831022068
ref: 15

NUT 6MM

€ 2.50

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0928024001
ref: 17

O RING(D:2,ID:24.5)

€ 2.00
