CYLINDER HEAD COVER (MODEL Z)

GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

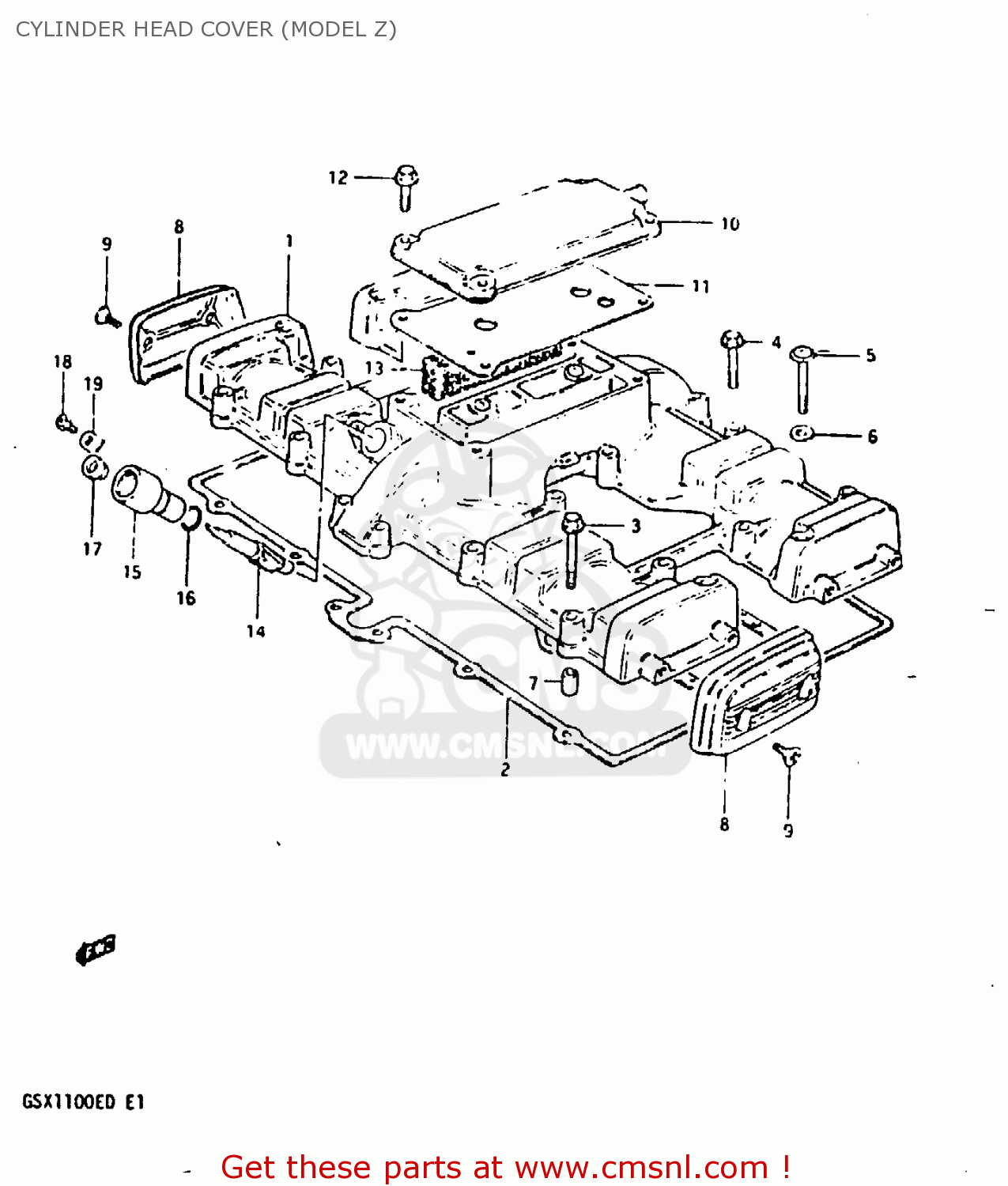

Cylinder head cover (model z) diagram GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CYLINDER HEAD COVER (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CYLINDER HEAD COVER (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1117145420
ref: 1

COVER,CYLINDER HEAD

€ 259.50

2

1117349210
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 47.00

3

0151706408
ref: 3

BOLT

€ 2.50

4

0151706358
ref: 4

BOLT 6X35

€ 2.50

5

0215206408
ref: 5

SCREW 6X40

€ 3.00

6

0916806009
ref: 6

GASKET (NAS)

€ 2.00

7

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

8

1117449221
ref: 8

CAP,CYLINDER HEAD COVER

€ 23.00

9

0912705015
ref: 9

SCREW(5X12)

€ 2.00

10

1117645402
ref: 10

COVER,BREATHER

€ 24.50

11

1117749210
ref: 11

GASKET (MCA)

€ 40.00

12

0151706208
ref: 12

BOLT,REAR

€ 2.50

13

1118649200
ref: 13

COVER,BREATHER

€ 16.50

14

2643149200
ref: 14
NT:10

GEAR,TACHOMETER DRIVEN

€ 40.00

15

2644145000
ref: 15

SLEEVE,TACHOMETER DRIVE

€ 18.00

16

2645145000A
ref: 16

SEAL,TACHOMETER DRIVEN

€ 4.50

17

0928905002
ref: 17

SEAL,OIL(5X12X8)

€ 11.00

18

0912805101
ref: 18

SCREW(5X12)

€ 1.50

19

2644933000
ref: 19

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50
