CRANKCASE (MODEL Z)

GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

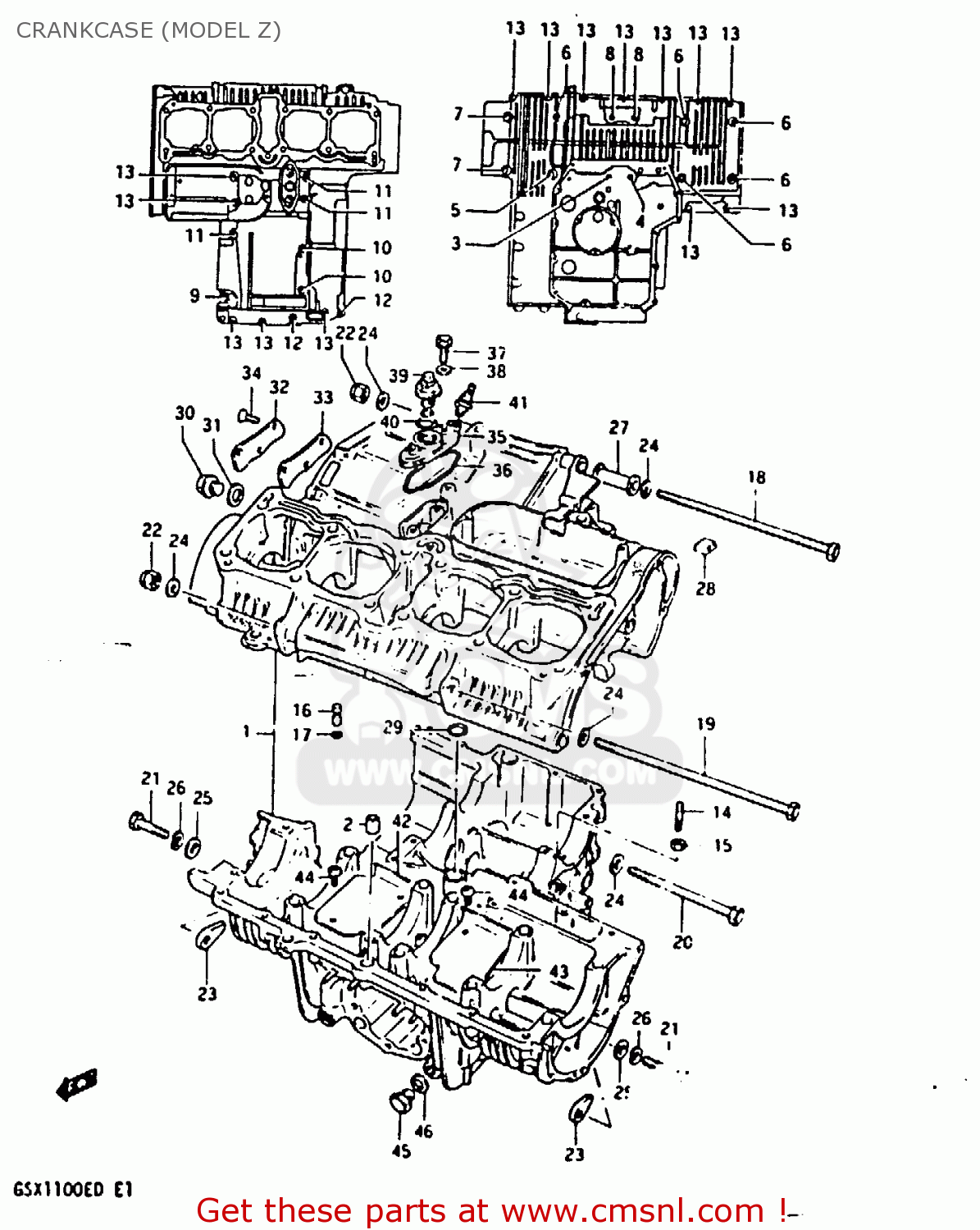

Crankcase (model z) diagram GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE (MODEL Z) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1130049822
ref: 1

CRANKCASE SET

€ 1,618.50

2

0920613001
ref: 2

PIN

€ 2.50

3

0910308059
ref: 3

BOLT 8X155

€ 7.50

4

0910308020
ref: 4

BOLT

€ 8.00

5

0910308009
ref: 5

BOLT

€ 5.00

6

0151708908
ref: 6

BOLT 8X90

€ 3.50

7

0151708658
ref: 7

BOLT 8X65

€ 3.00

8

0151708608
ref: 8

BOLT

€ 3.50

9

0151708508
ref: 9

BOLT

€ 3.50

10

0151706858
ref: 10

BOLT

€ 3.50

11

0151706758
ref: 11

BOLT (6X75)

€ 2.50

12

0151706558
ref: 12

BOLT

€ 2.50

13

0151706408
ref: 13

BOLT

€ 2.50

14

0142106358
ref: 14

STUD BOLT

€ 2.00

15

0831616068
ref: 15

NUT

€ 2.50

16

0936405005
ref: 16

UNION

€ 3.00

17

0928003003
ref: 17

O RING(D:1.05,ID:3.1)

€ 2.50

18

0910010140
ref: 18

BOLT 10X230

€ 13.50

19

0910110010
ref: 19

BOLT 10X250

€ 49.50

20

0910010078
ref: 20

BOLT(10X165)

€ 10.50

21

0110710608
ref: 21

BOLT 10X60

€ 3.50

22

0915910011
ref: 22

NUT

€ 3.00

23

0915910020
ref: 23

NUT

€ 7.50

24

0832211108
ref: 24

WASHER

€ 2.50

25

0916010005
ref: 25

WASHER(10.5X20X3.2)

€ 2.00

26

0832121108
ref: 26

LOCK WASHER

€ 2.00

27

1161049300
ref: 27

SPACER

€ 14.50

28

1125225000
ref: 28

PAD,CYLINDER

€ 5.00

29

0928013001
ref: 29

O RING(D:3.2,ID:12.9)

€ 4.00

30

0924714012
ref: 30

PLUG (14X12)

€ 3.50

31

0916814004
ref: 31

GASKET(14X19.2X2) (NAS)

€ 2.50

32

1139445000
ref: 32

CAP,OIL GALLERY

€ 6.50

33

1149745000
ref: 33

GASKET,OIL GALLERY (MCA)

€ 13.00

34

0212206168
ref: 34

SCREW

€ 2.00

35

1644549000
ref: 35

HOUSING,OIL PRESSURE SWITCH

€ 23.50

36

1644845000
ref: 36

O RING,PRESSURE SWITCH HOUSING

€ 10.50

37

0151706258
ref: 37

BOLT

€ 2.50

38

0916806009
ref: 38

GASKET (NAS)

€ 2.00

39

3782045050
ref: 39

SWITCH ASSEMBLY

€ 30.00

40

0928019001
ref: 40

O RING(D:1.9,ID:18.8)

€ 1.50

41

3487049000
ref: 41

GAUGE ASSEMBLY,OIL TEMPERATURE

€ 105.00

42

1152149200
ref: 42

PLATE,OIL SEPARATOR

€ 5.50

43

1152249200
ref: 43

PLATE,OIL SEPARATOR

€ 4.50

44

0211206088
ref: 44

SCREW

€ 2.00

45

0924714013
ref: 45

PLUG

€ 2.50

46

0916814004
ref: 46

GASKET(14X19.2X2) (NAS)

€ 2.50
