TURN SIGNAL LAMP (GSX1100ESD)

GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

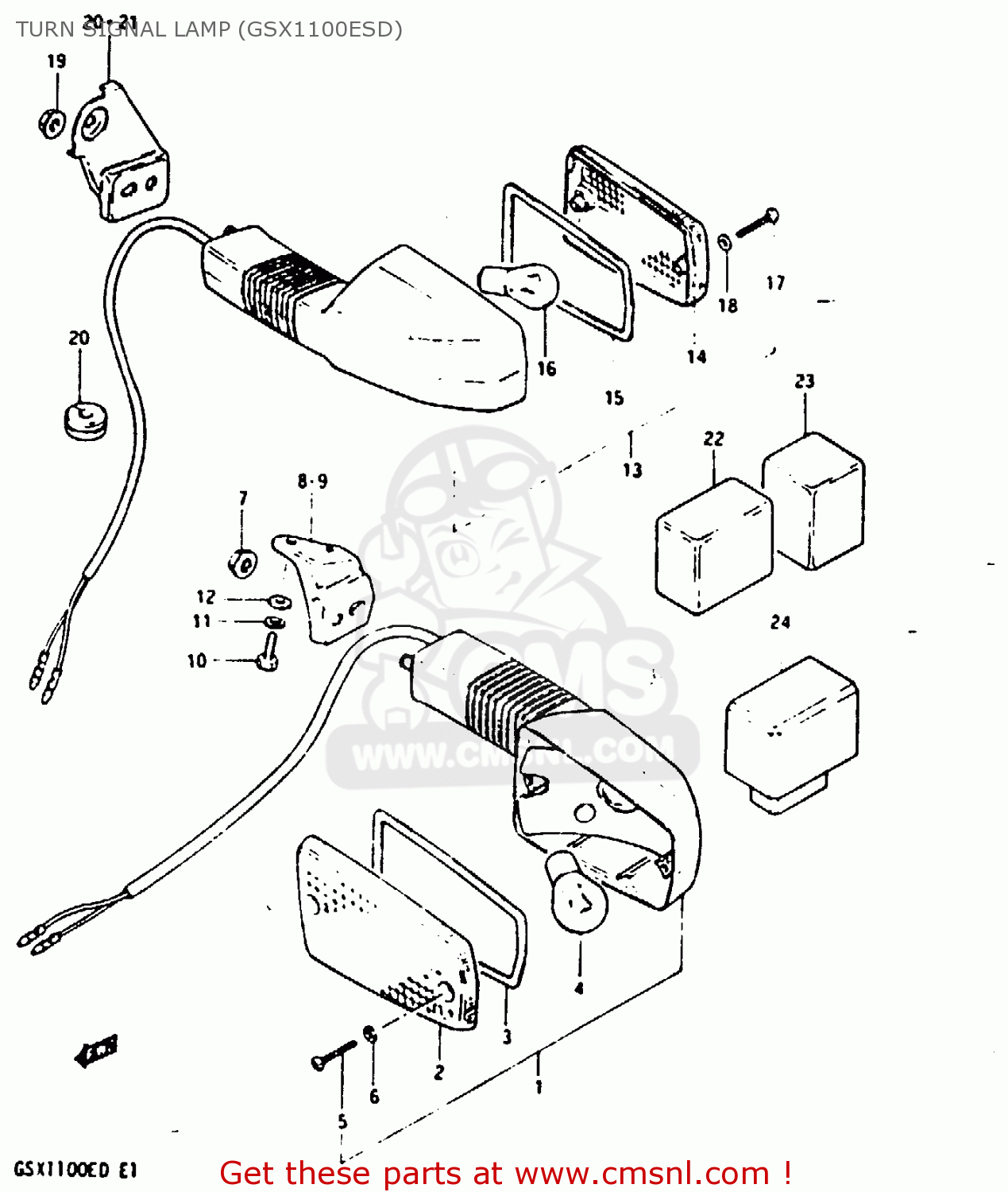

Turn signal lamp (gsx1100esd) diagram GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

TURN SIGNAL LAMP (GSX1100ESD) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
TURN SIGNAL LAMP (GSX1100ESD) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
TURN SIGNAL LAMP (GSX1100ESD) GSX1100E 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
3560143420
ref: 1-2
E2, E4, E15, E16, E1
LAMP ASSY, FRONT TURN SIGNAL
€ 98.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4-1
NOTUSED
ref: 4-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-2
0947112045
ref: 4-2
E2, E4, E15, E16, E1
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626088
ref: 7
NUT
0831626088
€ 3.00
8
3567131300
ref: 8
BRACKET,FRONT TURN SIGNAL
3567131300
€ 4.50
9
3568131300
ref: 9
BRACKET,FRONT TURN SIGNAL
3568131300
€ 5.50
10
0110708168
ref: 10
BOLT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
0832211088
ref: 12
WASHER
0832211088
€ 2.00
13-1
NOTUSED
ref: 13-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13-2
3560343420
ref: 13-2
E2, E4, E15, E16, E1
LAMP ASSY, REAR TURN SIGNAL
€ 75.00
14-1
NOTUSED
ref: 14-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14-2
3565243420
ref: 14-2
E2, E4, E15, E16, E1
LENS,TURN SIGN
3565243420
€ 11.50
15
3561343410
ref: 15
GASKET (NAS)
3561343410
€ 3.50
16-1
NOTUSED
ref: 16-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-2
0947112045
ref: 16-2
E2, E4, E15, E16, E1
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0831626088
ref: 19
NUT
0831626088
€ 3.00
20
3562149500
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.00
21
3564149500
ref: 21
BRACKET,REAR TURN SIGNAL
€ 6.00
22
3861049231
ref: 22
RELAY ASSY,TURNSIGNAL
3861049231
€ 71.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
3883049500
ref: 24
UNIT,TURN SIGNAL CONTROL
€ 269.50
