CAM SHAFT - VALVE
GSX1100F 1991 (M) USA (E03)

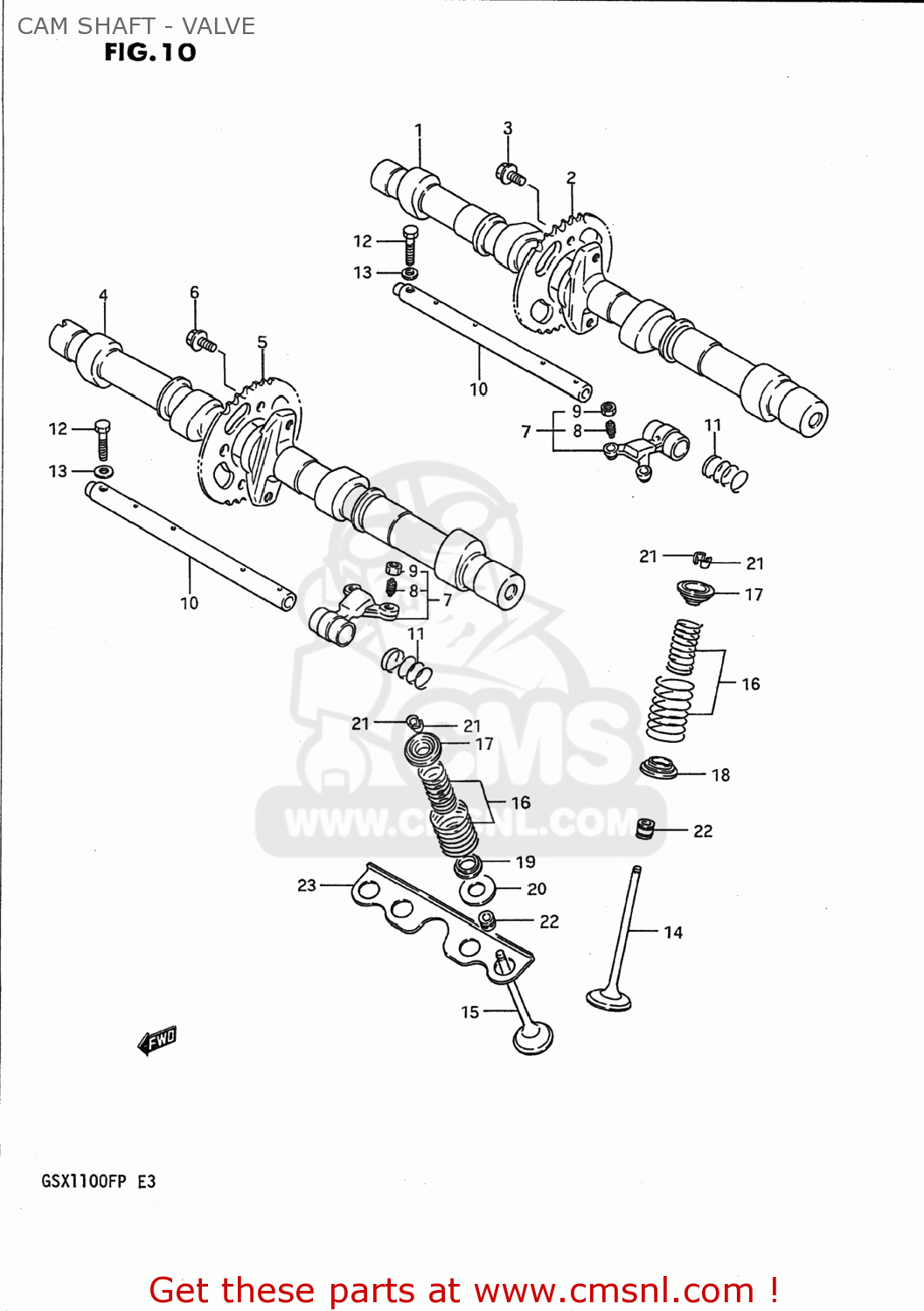

Cam shaft - valve diagram GSX1100F 1991 (M) USA (E03)
CAM SHAFT - VALVE GSX1100F 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271106B03
ref: 1-1
12711-06B90
CAMSHAFT
€ 549.50
1-2
1271106B90
ref: 1-2
CAMSHAFT,INTAKE
€ 549.50
2
1274106B00
ref: 2
SPROCKET,CAMSHAFT
€ 36.50
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4-1
1272106B03
ref: 4-1
12721-06B90
CAMSHAFT,EXHAUST
€ 335.00
4-2
1272106B90
ref: 4-2
CAMSHAFT,EXHAUST
€ 335.00
5
1274106B00
ref: 5
SPROCKET,CAMSHAFT
€ 36.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1284027A00
ref: 7
12840-27A01
ARM,VALVE ROCKER
€ 49.50
8
1284249210
ref: 8
12842-49201
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284304A00
ref: 9
12843-27A00
NUT,ADJUSTING
€ 3.00
10
1286127A00
ref: 10
SHAFT,VALVE ROCKER ARM
€ 31.00
11
0944013014
ref: 11
SPRING
€ 2.50
12
0110706306
ref: 12
01500-0630A
BOLT
€ 2.50
13
0832221066
ref: 13
08322-0106B
WASHER, LOWER
€ 2.00
14
1291106B02
ref: 14
VALVE,INTAKE
€ 84.00
15
1291206B00
ref: 15
VALVE,EXHAUST
€ 85.50
16
1292006B00
ref: 16
SPRING SET,VALVE
€ 14.00
17
1293127A01
ref: 17
RETAINER,VALVE SPRING
€ 5.50
18-1
1293327A00
ref: 18-1
12933-81400
SEAT,VALVE SPRING
€ 4.00
18-2
1293381400
ref: 18-2
SEAT,VALVE SPRING
€ 4.00
19-1
1293427A00
ref: 19-1
12934-27A01
SEAT,VALVE SPRING
€ 7.00
19-2
1293427A01
ref: 19-2
SEAT,VALVE SPRING EXH INNER
€ 7.00
20
1293527A00
ref: 20
SEAT,VALVE SPRING EXH OUTER
€ 3.50
21
1293227A00
ref: 21
COTTER VALVE
€ 2.50
22
0928905011
ref: 22
SEAL,OIL(5X10X9.7)
€ 6.00
23
1113727A01
ref: 23
11137-27A02
PLATE
€ 7.50
