OIL PUMP
GSX1100F 1991 (M) USA (E03)

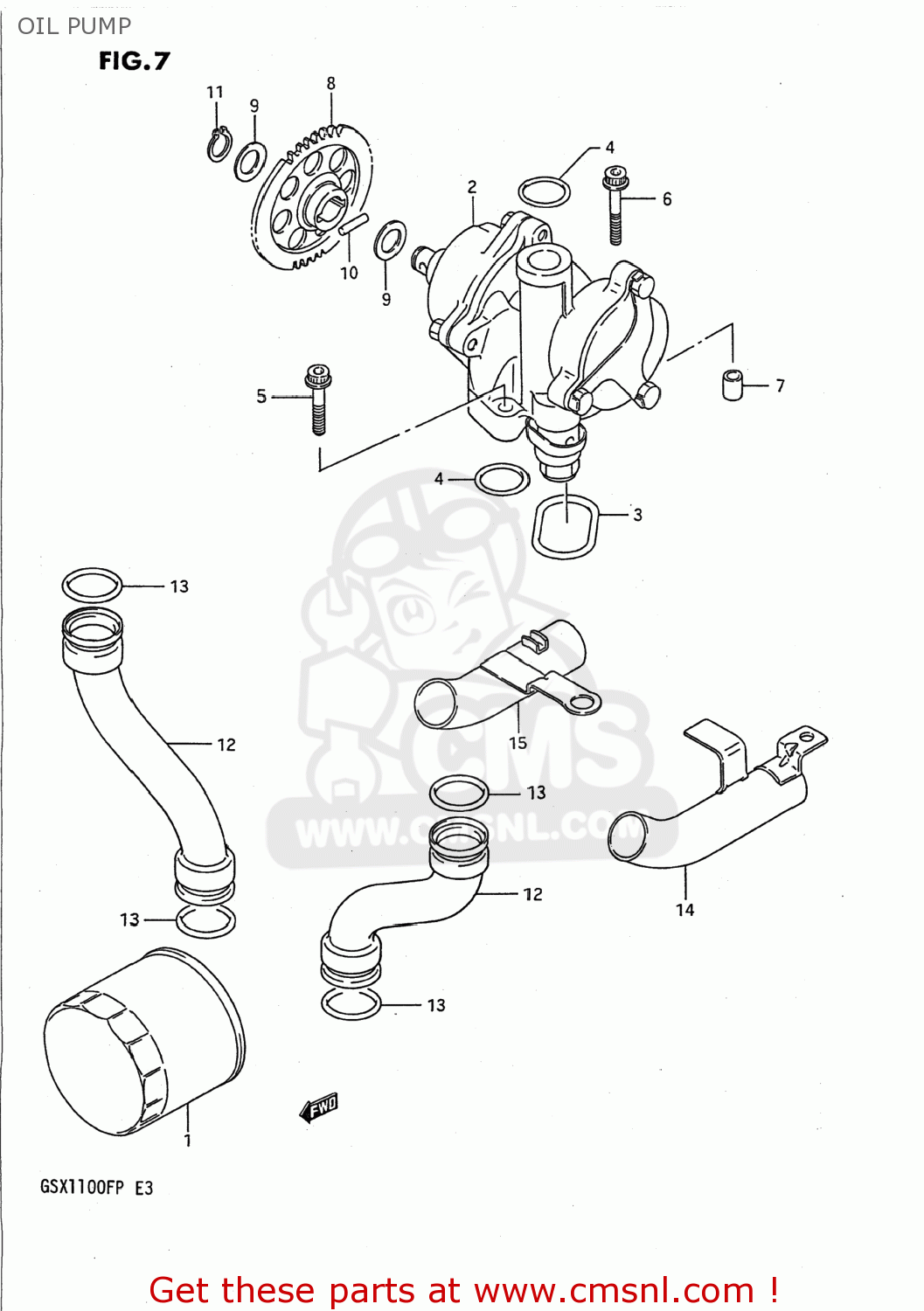

Oil pump diagram GSX1100F 1991 (M) USA (E03)
OIL PUMP GSX1100F 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1651006B01
ref: 1
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
2
1640006B01
ref: 2
PUMP ASSY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
€ 8.00
5
0712006308
ref: 5
07120-06307
BOLT
€ 2.50
6
0712006358
ref: 6
07120-0635B
BOLT
€ 3.50
7
0421109129
ref: 7
PIN
€ 2.00
8
1633106B010B1
ref: 8
GEAR,OIL PUMP DRIVEN
€ 37.00
9
0822112205
ref: 9
SHIM
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
€ 1.50
11
0833131128
ref: 11
08331-3112A
CIRCLIP
€ 2.00
12
1648148B01
ref: 12
PIPE,OIL OUTLET
€ 46.00
13
0928022016
ref: 13
O RING(D:3.7,ID:21.7)
€ 5.50
14-1
1653027A01
ref: 14-1
16530-27A02
PIPE,OIL,OUTLET,UNDER
€ 22.00
14-2
1653027A02
ref: 14-2
PIPE,OIL OUTLET UNDER,L
€ 22.00
15
1654027A02
ref: 15
PIPE,OIL OUTLET UNDER,R
€ 23.00
