FUEL TANK (MODEL N/P)
GSX1100F 1991 (M) USA (E03)

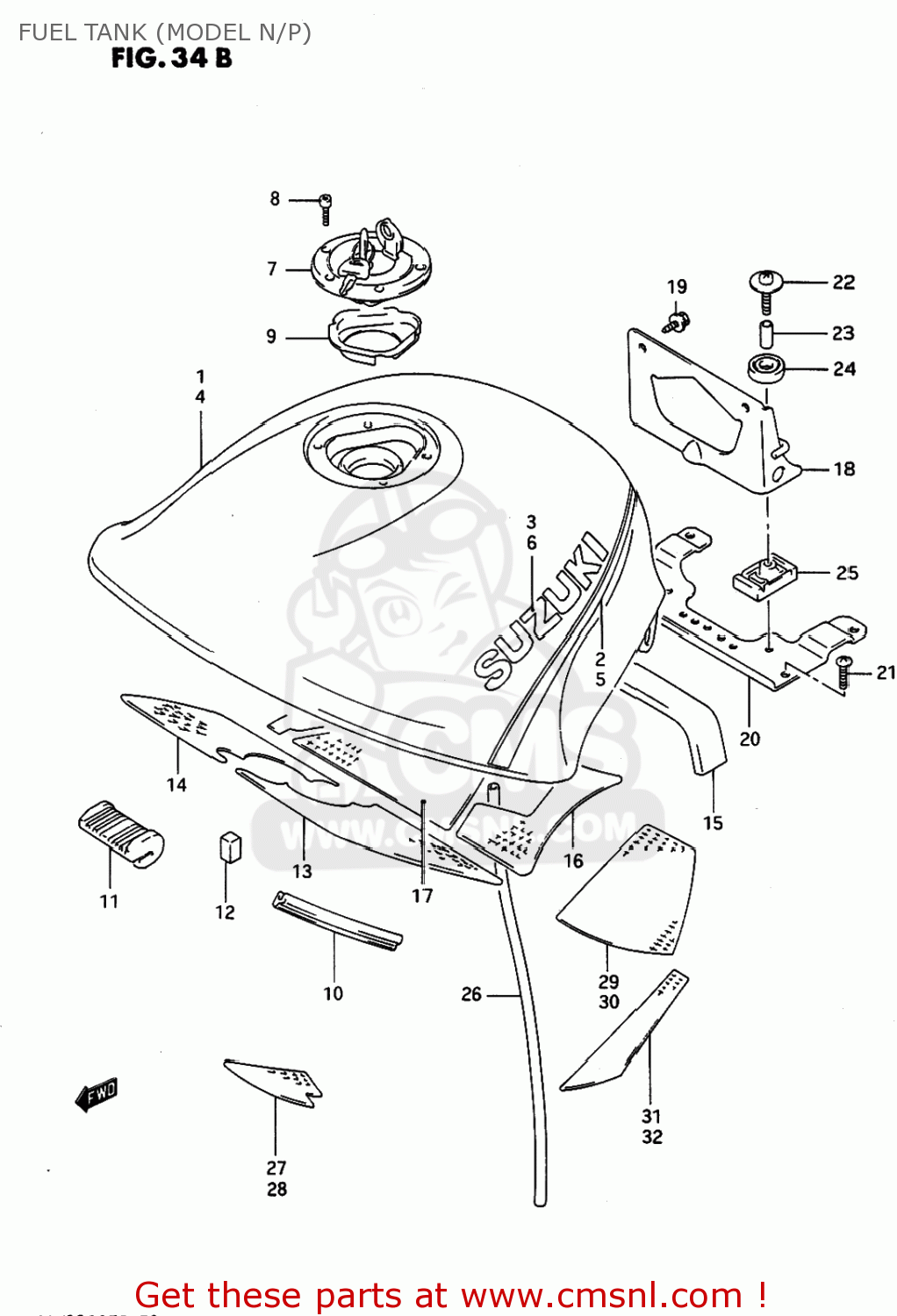

Fuel tank (model n/p) diagram GSX1100F 1991 (M) USA (E03)
FUEL TANK (MODEL N/P) GSX1100F 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410048D2032X
ref: 1-1
44100-48D21-32X
TANK ASSEMBLY,FUEL
€ 393.50
1-2
4410048D7032X
ref: 1-2
44100-48D72-32X
TANK ASSEMBLY,FUEL
€ 479.00
2
6811548C00L22
ref: 2
TAPE,FUEL TANK STRIPE
€ 99.50
3
6811148B0005J
ref: 3
68111-24D00-05J
EMBLEM
€ 14.50
4-1
4410048D211GX
ref: 4-1
44100-48D41-K31
TANK ASSEMBLY,FUEL
€ 884.50
4-2
4410048D711GX
ref: 4-2
44100-48D72-K31
TANK ASSEMBLY,FUEL
€ 402.50
5
6811548C00L21
ref: 5
TAPE,FUEL TANK STRIPE
€ 99.50
6
6811124D0023S
ref: 6
EMBLEM,FUEL TANK
€ 18.00
7-1
4420048810
ref: 7-1
CAP SET,FUEL TANK
€ 187.00
7-2
4420048820
ref: 7-2
CAP SET,FUEL TANK
€ 93.50
8
0910605016
ref: 8
BOLT(5X10)
€ 2.00
9
4426248B00
ref: 9
COVER,FUEL TANK INLET
€ 48.00
10
6824148B00
ref: 10
68241-04X50-300
MOLDING,FUEL TANK
€ 6.00
11
4451148B10
ref: 11
CUSHION,FUEL TANK FR
€ 9.50
12
4454548B10
ref: 12
CUSHION,FUEL TANK SIDE
€ 10.00
13
4419648B00
ref: 13
HEATSHIELD,FUEL TANK FR,L
€ 17.50
14
4419748B00
ref: 14
HEAT SHIELD,FUEL TANK
€ 13.00
15
4419348B01
ref: 15
HEAT SHIELD,FUEL TANK
€ 9.50
16
4419848B00
ref: 16
HEATSHIELD,FUEL TANK RR,L
€ 18.00
17
4419948B00
ref: 17
HEAT SHIELD,FUEL TANK
€ 36.50
18
4455048B10
ref: 18
BRACKET COMP,FUEL TANK
€ 22.00
19
0913806038
ref: 19
SCREW(6X16)
€ 3.00
20
4457048B00
ref: 20
BRACKET,FUEL TANK RR LOW
€ 18.00
21
0214206205
ref: 21
02142-0620A
SCREW, CENTER
€ 2.00
22
0913606106
ref: 22
BOLT L:35,WITH WASHER
€ 2.50
23
0918006091
ref: 23
09180-06273
SPACER (6.4X9X21.5)
€ 5.50
24
0932016010
ref: 24
CUSHION
€ 5.00
25
0932009033
ref: 25
CUSHION
€ 7.50
26
093527010300A
ref: 26
09352-70103-00B
HOSE (7X10.2X1000)
€ 17.50
27
4419448B10
ref: 27
HEAT SHIELD,FUEL TANK
€ 7.00
28
4419548B10
ref: 28
HEAT SHIELD,FUEL TANK
€ 7.00
29
4419648B10
ref: 29
HEAT SHIELD,FUEL TANK
€ 10.50
30
4419748B10
ref: 30
HEAT SHIELD,FUEL TANK
€ 10.50
31
4419848B10
ref: 31
HEAT SHIELD,FUEL TANK
€ 8.00
32
4419948B10
ref: 32
HEAT SHIELD,FUEL TANK
€ 8.00
