POWER SCREEN

GSX1100F 1991 (M) USA (E03)

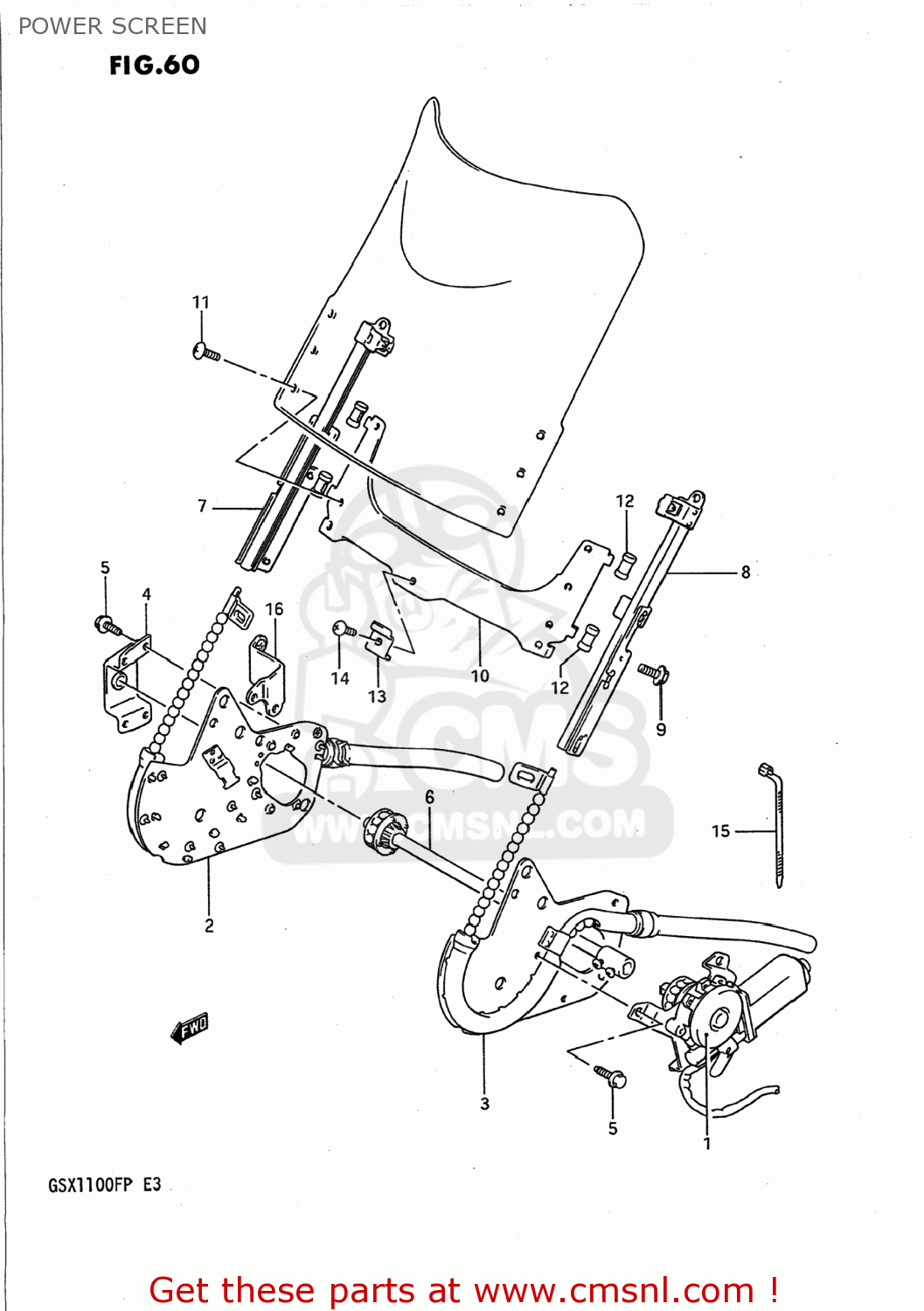

Power screen diagram GSX1100F 1991 (M) USA (E03)

POWER SCREEN GSX1100F 1991 (M) USA (E03)

POWER SCREEN GSX1100F 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9460048810
ref: 1
94600-48811

MOTOR SET

€ 410.50

2

9460048820
ref: 2

FRAME SET,RIGHT

€ 124.00

3

9460048860
ref: 3

FRAME SET,L

€ 122.50

4

9460048830
ref: 4

METAL BRACKET SET

€ 18.00

5

0151705106
ref: 5
01550-0510A

BOLT

€ 2.50

6

9460048840
ref: 6

SHAFT SET

€ 117.00

7

9460048850
ref: 7

PIPE SET,GUIDE,R

€ 89.00

8

9460048870
ref: 8

PIPE SET,GUIDE,L

€ 89.00

9

0151706126
ref: 9
01550-0612A

BOLT

€ 2.50

10

9462148B00
ref: 10

BRACKET,SCREEN

€ 34.50

11

0214205124
ref: 11
02142-0512A

SCREW, FRONT & REAR

€ 1.50

12

9462248B00
ref: 12

RUBBER,SLIDE

€ 7.50

13

9462348B00
ref: 13

BRACKET,SUPPORT

€ 4.50

14

0211205105
ref: 14
02112-0510A

SCREW

€ 2.00

15

0940406415
ref: 15
09404-06433

CLAMP

€ 3.00

16

9462648B00
ref: 16

BRACKET

€ 5.50
