TURN SIGNAL LAMP
GSX1100F 1991 (M) USA (E03)

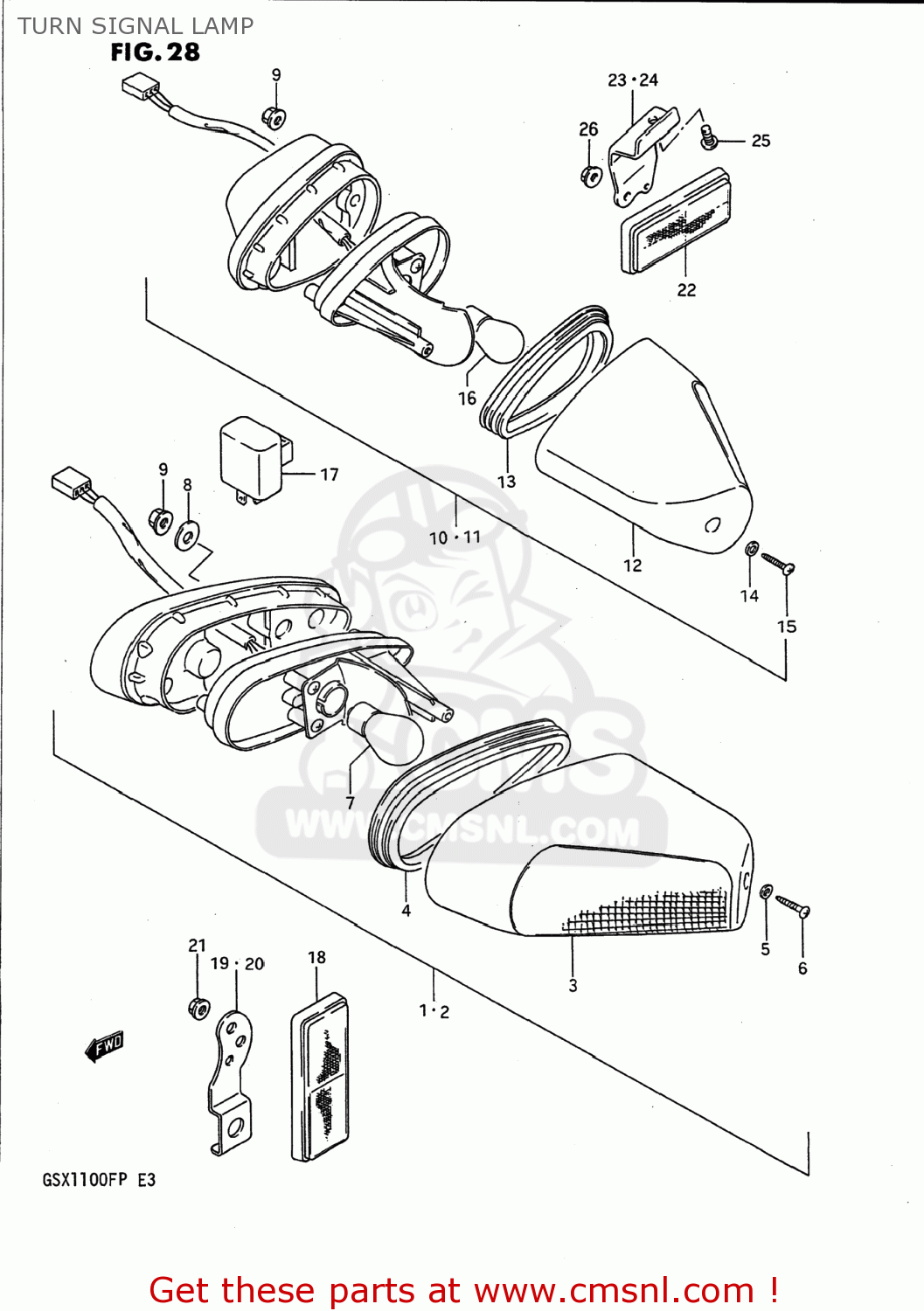

Turn signal lamp diagram GSX1100F 1991 (M) USA (E03)
TURN SIGNAL LAMP GSX1100F 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560148B31291
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 151.00
1
3560148B31291
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 151.00
2
3560248B31291
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 151.00
2
3560248B31291
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 151.00
3
3561248B20291
ref: 3
LENS
€ 44.50
4
3564348B20
ref: 4
GASKET (NAS)
€ 12.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0321104165
ref: 6
03211-0416A
SCREW 4X16
€ 1.50
7
0947112046
ref: 7
09471-12128
BULB(12V21/5W)
€ 1.50
8
0916006039
ref: 8
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
9
0831616064
ref: 9
08316-1006B
NUT 6MM
€ 2.50
10
3560348B30291
ref: 10
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 140.50
10
3560348B30291
ref: 10
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 140.50
11
3560448B30291
ref: 11
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 131.00
11
3560448B30291
ref: 11
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 131.00
12
3565248B20291
ref: 12
LENS
€ 65.00
13
3564348B20
ref: 13
GASKET (NAS)
€ 12.50
14
3562743010
ref: 14
GASKET (NAS)
€ 2.00
15
0321104165
ref: 15
03211-0416A
SCREW 4X16
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17
3861031310
ref: 17
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
18
3595043431
ref: 18
REFLEX REFLECTOR,FR SIDE
€ 12.00
19
3595648B10
ref: 19
BRACKET,FRONT SIDE,REAR
€ 0.00
20
3595748B10
ref: 20
BRACKET,FR SIDE RR,L
€ 0.00
21
0831616055
ref: 21
NUT ,5MM
€ 2.00
22
3597000A10
ref: 22
REFLEX REFLECTOR,RR
€ 22.00
23
3597548B10
ref: 23
BRACKET,RR SIDE RR,R
€ 3.00
24
3597648B10
ref: 24
BRACKET,RR SIDE RR,L
€ 3.00
25
0214206164
ref: 25
02142-0616A
SCREW
€ 2.50
26
0831616055
ref: 26
NUT ,5MM
€ 2.00
