prices are in EUR

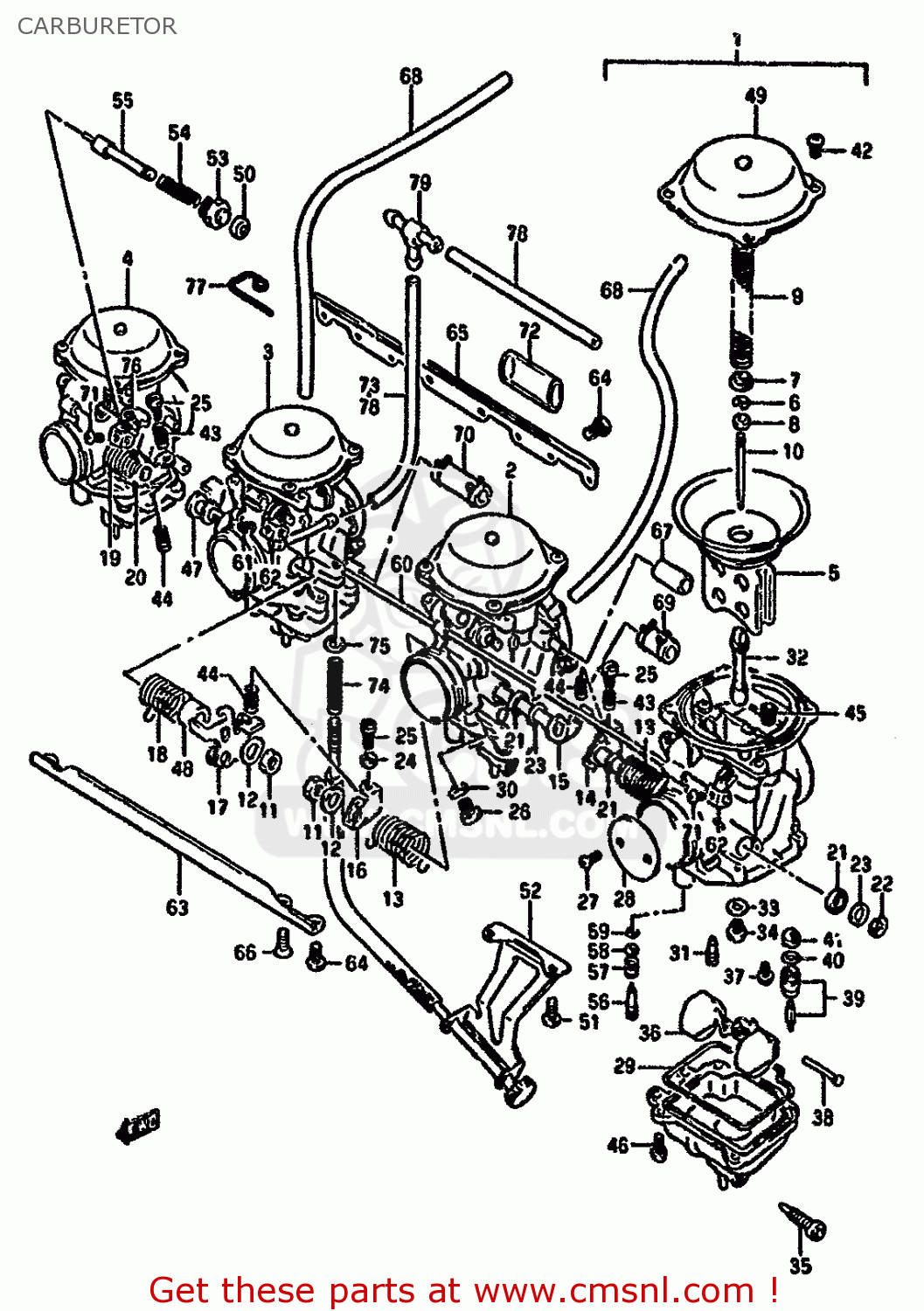

ref
part #
description
quantity
1-3
CARBURETOR ASSY,LH
1-5
CARBURETOR ASSY,LH
1-6
CARBURETOR ASSY,LH
1-7
CARBURETOR ASSY,LH
5-1
DIAPHRAGM ASSY
6-1
CLIP
6-2
E RING
7
RING
8
1338747010
ref: 8
1338747010
9
SPRING
10-1
NEEDLE,JET
10-2
NEEDLE,JET (5DL15-3)
10-3
NEEDLE,JET (5DL24-3)
11
0831000087
ref: 11
ML,MR
0831000087
12
WASHER
21
1365151010
ref: 21
1365151010
22
E RING
23
GASKET,THROTTLE SHAFT (NAS)
24
NUT,THROTTLE ROD
25
SCREW
26
SCREW
28-1
VALVE,THROTTLE (130)
28-2
VALVE,THROTTLE (125)
29
O RING,FLOAT CHAMBER
30
WASHER
31-1
JET,PILOT(42.5)
31-2
0949232006
ref: 31-2
MODEL J/K/L/M/N/P/R
0949232006
32-1
JET,NEEDLE(P-0)
32-2
JET,NEEDLE (P-2)
33
1333244080
ref: 33
1333244080
34-1
0949122015
ref: 34-1
LH,RH
0949122015
34-2
0949126011
ref: 34-2
MODEL M/N/P/R E18
0949126011
34-3
0949122016
ref: 34-3
ML,MR
0949122016
34-4
JET,MAIN(127.5)
35
SCREW
36
FLOAT
37
1360243410
ref: 37
1360243410
38
1325492311
ref: 38
1325492311
39
VALVE ASSY,NEEDLE
40
1337444080
ref: 40
1337444080
41
1337684110
ref: 41
1337684110
42
0211204087
ref: 42
0211204087
43
SPRING
45-1
JET,AIR(150)
45-2
JET
45-4
JET,AIR
46
1360227A10
ref: 46
LH:2,ML,MR,RH:4
1360227A10
48
RING
49-1
COVER,DIAPHRAGM
50
CAP,STARTER VALVE
51
0211204167
ref: 51
LH
0211204167
52
BRACKET ASSY
53
1341844080
ref: 53
1341844080
55
PLUNGER ASSY
56-1
1327947070
ref: 56-1
EXCEPT E18
1327947070
56-2
1327947070
ref: 56-2
E1,E2,E75 (U.K.,SOUT
1327947070
56-3
1327947070
ref: 56-3
MODEL M/N E39
1327947070
57
SPRING
58
1329129900
ref: 58
EXCEPT E18
1329129900
59
1329529900
ref: 59
EXCEPT E18
1329529900
62
1342248B10
ref: 62
1342248B10
64
0211205127
ref: 64
0211205127
66
SCREW(5X14)
67
1368349160
ref: 67
L:400 18
1368349160
68
1368422A00
ref: 68
L:550 300
1368422A00
70
HOSE ASSY
71
SCREW,THROTTLE ADJUST
72
HOSE(16X19X100)
73
1368348B00
ref: 73
EXCEPT MODEL K/L/M/N
1368348B00
75
WASHER
78
1368348B00
ref: 78
MODEL K/L/P/R E18 MO
1368348B00
79
NIPPLE
