SEAT

GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

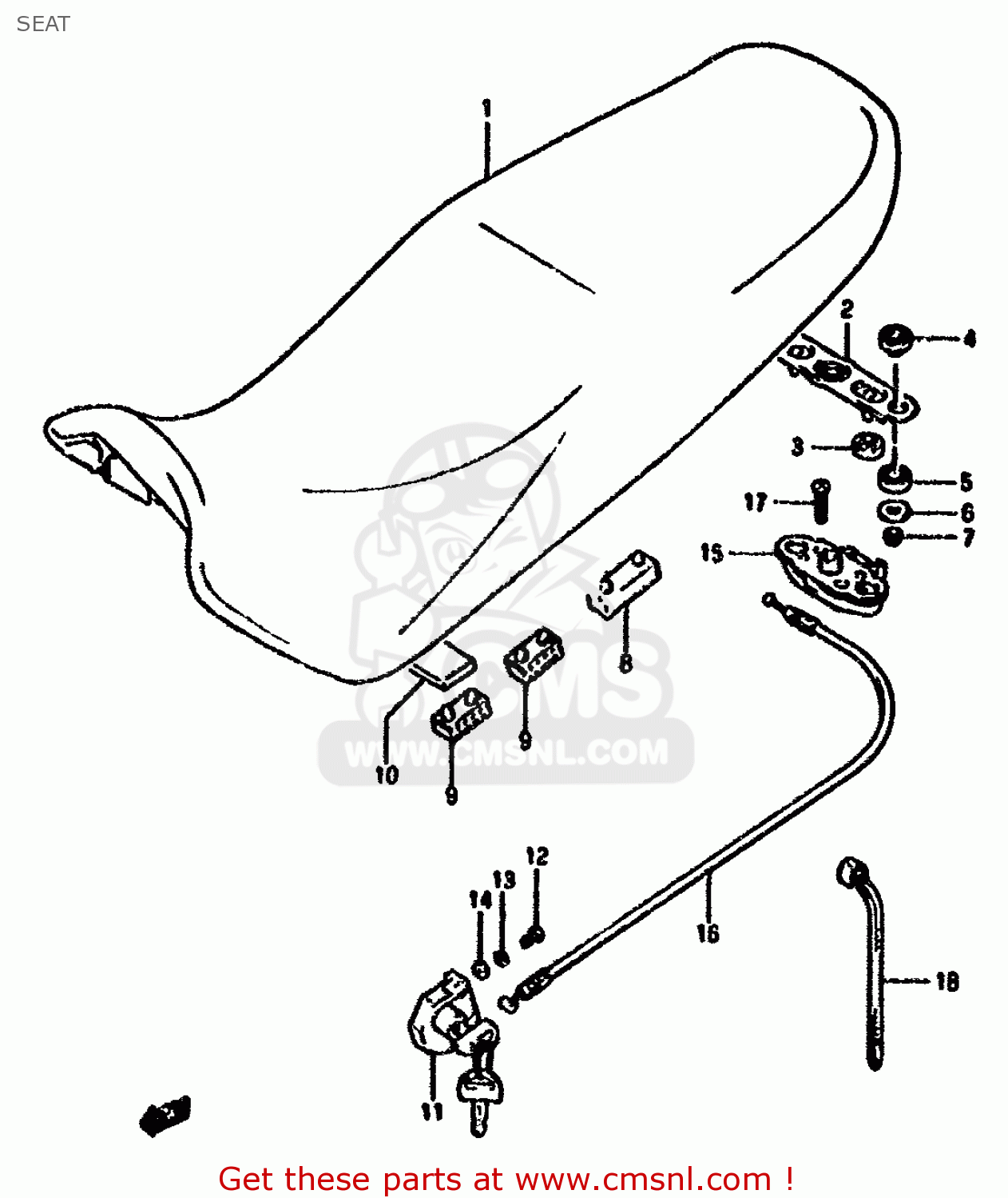

Seat diagram GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

SEAT GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
SEAT GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510048B2058R
ref: 1-1
MODEL J FOR 9WV,9RD
SEAT ASSEMBLY
€ 319.00
1-2
4510048B205ED
ref: 1-2
MODEL J FOR 24V,24D
SEAT ASSEMBLY (SILVER)
4510048B205ED
€ 319.00
1-3
4510048B2057S
ref: 1-3
MODEL K FOR 2VV
SEAT SET (BLUE)
4510048B2057S
€ 319.00
2
4521548B20
ref: 2
STRIKER,SEAT LOCK
€ 18.50
3
4521313600
ref: 3
CUSHION
4521313600
€ 1.50
4
0932010038
ref: 4
CUSHION
0932010038
€ 4.00
5
0932014017
ref: 5
CUSHION
0932014017
€ 3.00
6
0821206222
ref: 6
WASHER
0821206222
€ 1.50
7
0831626066
ref: 7
NUT
€ 2.00
8
4514943500
ref: 8
CUSHION,SEAT
4514943500
€ 3.00
9
4514948B00
ref: 9
CUSHION,SEAT
4514948B00
€ 6.00
10
9498229400
ref: 10
CUSHION(30X60X10)
9498229400
€ 1.50
11-1
9570026B00KEY
ref: 11-1
MODEL J/K/L
LOCK SET
9570026B00KEY
€ 45.00
11-2
9570026820
ref: 11-2
MODEL M/N/P/R
LOCK SET,SEAT
9570026820
€ 45.00
12-1
0211205105
ref: 12-1
MODEL J/K/L
SCREW
€ 2.00
12-2
0211275105
ref: 12-2
MODEL M/N/P
SCREW
€ 1.50
12-3
0211275103
ref: 12-3
MODEL R
SCREW
€ 1.50
13
0832121055
ref: 13
WASHER,LOCK
0832121055
€ 3.00
14
0832221055
ref: 14
WASHER,5MM
0832221055
€ 2.50
15-1
4522020A00
ref: 15-1
MODEL J/K/L/M/N
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
15-2
4522020A01
ref: 15-2
MODEL P/R
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
16
4528048B10
ref: 16
CABLE,SEAT LOCK
4528048B10
€ 16.00
17
0212206306
ref: 17
SCREW
€ 2.00
18
0940714403
ref: 18
CLAMP(L:125)
0940714403
€ 2.50
