FUEL COCK

GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

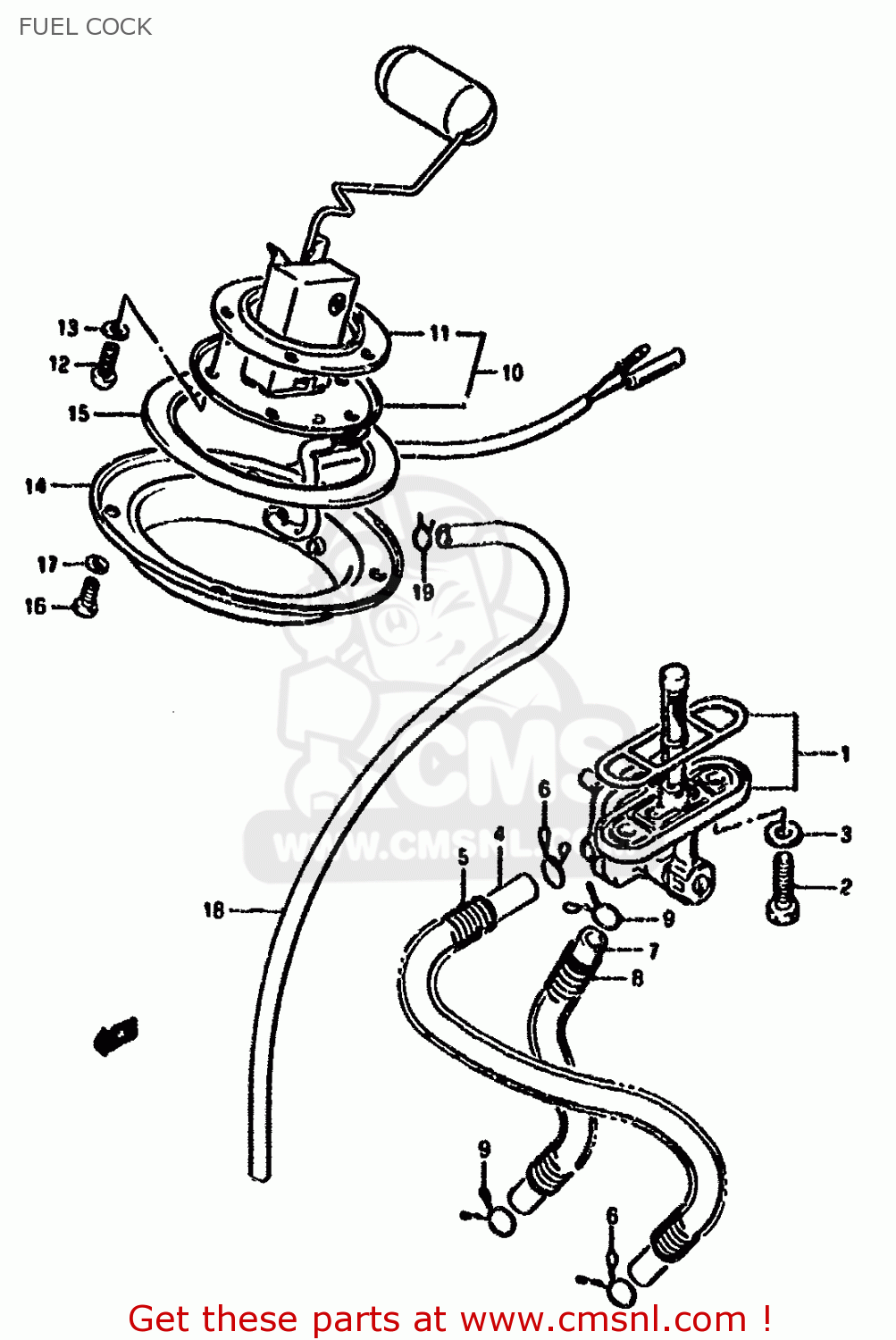

Fuel cock diagram GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL COCK GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL COCK GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL COCK GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4430048B10
ref: 1-1
MODEL J
COCK ASSEMBLY,FUEL
€ 97.00
1-2
4430048B11
ref: 1-2
MODEL K/L/M/N/P/R
COCK ASSY,FUEL
4430048B11
€ 97.00
2
0912806006
ref: 2
BOLT(6X20)
0912806006
€ 2.00
3-1
0916806023
ref: 3-1
MODEL J
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
3-2
0916806026
ref: 3-2
MODEL K/L/M/N/P/R
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
4
0935270103300
ref: 4
HOSE
€ 8.00
5-1
0944013020
ref: 5-1
MODEL J
SPRING
€ 14.50
5-2
0944013047
ref: 5-2
MODEL K/L/M/N/P/R
SPRING
0944013047
€ 6.00
6
0940110403
ref: 6
CLIP
0940110403
€ 7.00
7
4443148B00
ref: 7
HOSE,FUEL NO.3
4443148B00
€ 9.00
8-1
0944013018
ref: 8-1
MODEL J
SPRING
€ 14.50
8-2
0944013035
ref: 8-2
MODEL K/L/M/N/P/R
SPRING
0944013035
€ 6.00
9
0940110201
ref: 9
CLIP
0940110201
€ 2.00
10
3481048B00
ref: 10
GAUGE ASSY,FUEL LEVEL SENDER
3481048B00
€ 104.50
11
3482545100
ref: 11
GASKET,FUEL LEVEL GAUGE (NAS)
3482545100
€ 7.00
12-1
0110705106
ref: 12-1
MODEL J
BOLT
€ 1.50
12-2
0113405106
ref: 12-2
MODEL K/L/M/N/P
BOLT
€ 2.00
12-3
0157005103
ref: 12-3
MODEL R
BOLT
0157005103
€ 2.00
13
0832121056
ref: 13
MODEL J
LOCK WASHER
0832121056
€ 3.00
14
3488540A00
ref: 14
PLATE,FUEL DRAIN
3488540A00
€ 21.00
15
3488840A00
ref: 15
GASKET,FUEL DRAIN PLATE (NAS)
3488840A00
€ 9.00
16-1
0211205086
ref: 16-1
MODEL J
SCREW
€ 2.00
16-2
0211235086
ref: 16-2
MODEL K/L/M/N/P
SCREW
€ 2.00
16-3
0211235083
ref: 16-3
MODEL R
SUZUKI PART
€ 2.00
17
0832121056
ref: 17
MODEL J
LOCK WASHER
0832121056
€ 3.00
18
093525082300B
ref: 18
HOSE(5X8.2X2000)
093525082300B
€ 13.00
19
0940108402
ref: 19
CLIP
0940108402
€ 1.50
