CYLINDER HEAD COVER

GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

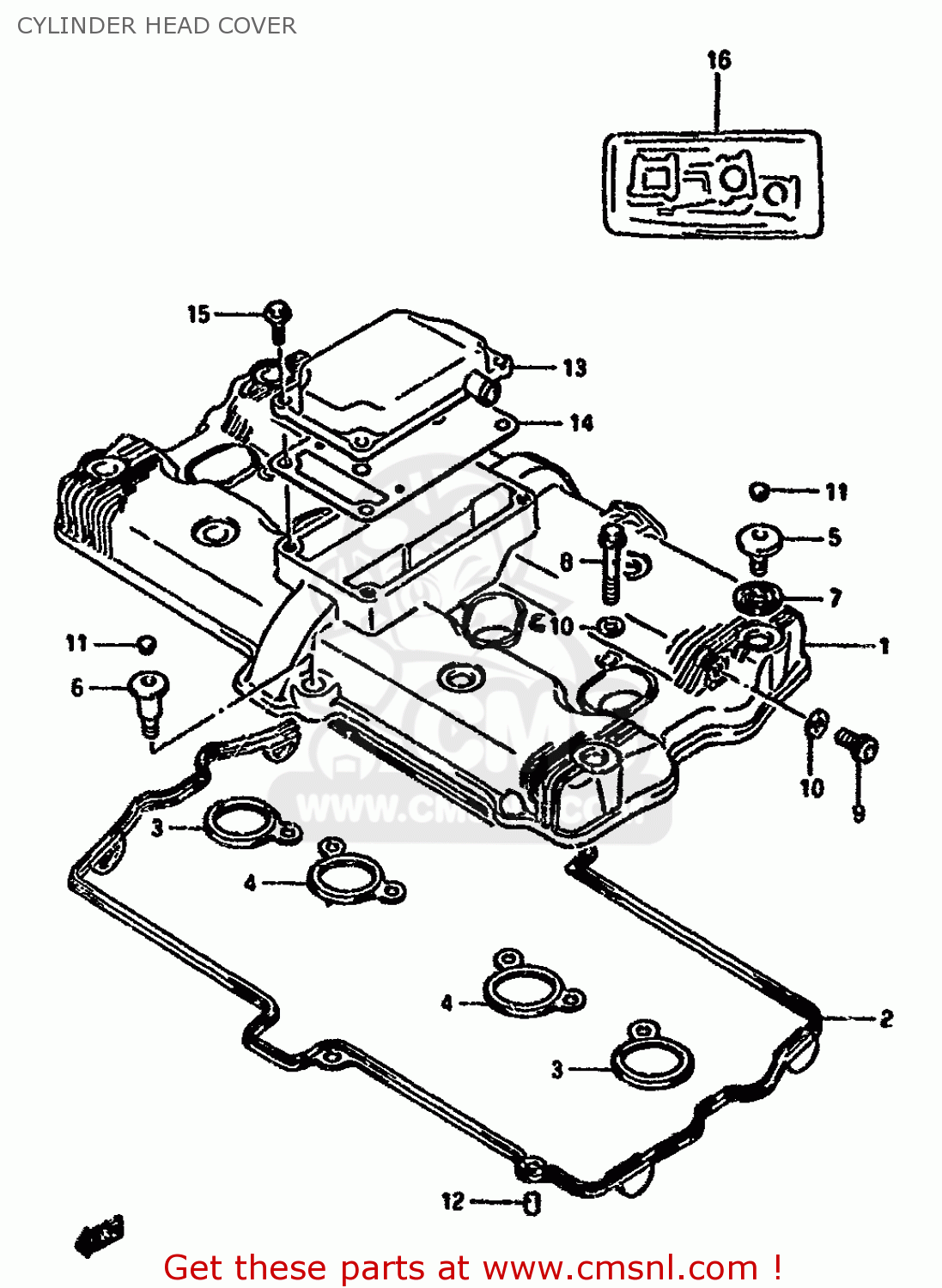

Cylinder head cover diagram GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD COVER GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD COVER GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD COVER GSX1100F 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1117148B03
ref: 1
COVER,CYLINDER HEAD
€ 422.00
2
1117306B02
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
1117306B02
€ 34.50
3
1117827A01
ref: 3
GASKET,HEAD COVER NO.2 (NAS)
1117827A01
€ 5.50
4
1117927A02
ref: 4
GASKET,HEAD COVER NO.3 (NAS)
1117927A02
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
0910607009
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
0910607010
€ 4.50
7
0916111008
ref: 7
WASHER(10.6X25.5X2.3)
0916111008
€ 4.50
8
0936008009
ref: 8
BOLT,UNION 8X35
0936008009
€ 26.50
9-1
0711008125
ref: 9-1
MODEL J/K/L/M/N/P
PLUG, HEAD COVER
€ 2.50
9-2
0713008123
ref: 9-2
MODEL R
PLUG
€ 2.50
10
0916808008
ref: 10
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
11
0925006008
ref: 11
MODEL J/K
CAP(OD:10)
0925006008
€ 3.00
12
0422108129
ref: 12
PIN
0422108129
€ 2.00
13-1
1117648B00
ref: 13-1
MODEL J/K
COVER,BREATHER
€ 26.00
13-2
1117648B10
ref: 13-2
MODEL L/M/N/P/R
COVER,BREATHER
1117648B10
€ 26.00
14
1117748B00H17
ref: 14
GASKET,BREATHER (NAS)
1117748B00H17
€ 10.50
15-1
0151706204
ref: 15-1
MODEL J/K/L/M/N
BOLT 6X20
0151706204
€ 2.50
15-2
0151706207
ref: 15-2
MODEL P
BOLT 6X20
€ 2.50
15-3
0155006203
ref: 15-3
MODEL R
BOLT
0155006203
€ 2.50
16-1
1140148814
ref: 16-1
MODEL J/K/L/M/N
GASKET SET (NAS)
€ 338.00
16-2
1140148820
ref: 16-2
MODEL P/R
GASKET SET (NAS)
€ 338.00
