AIR CLEANER

GSX1150EF 1986 (G) (E06)

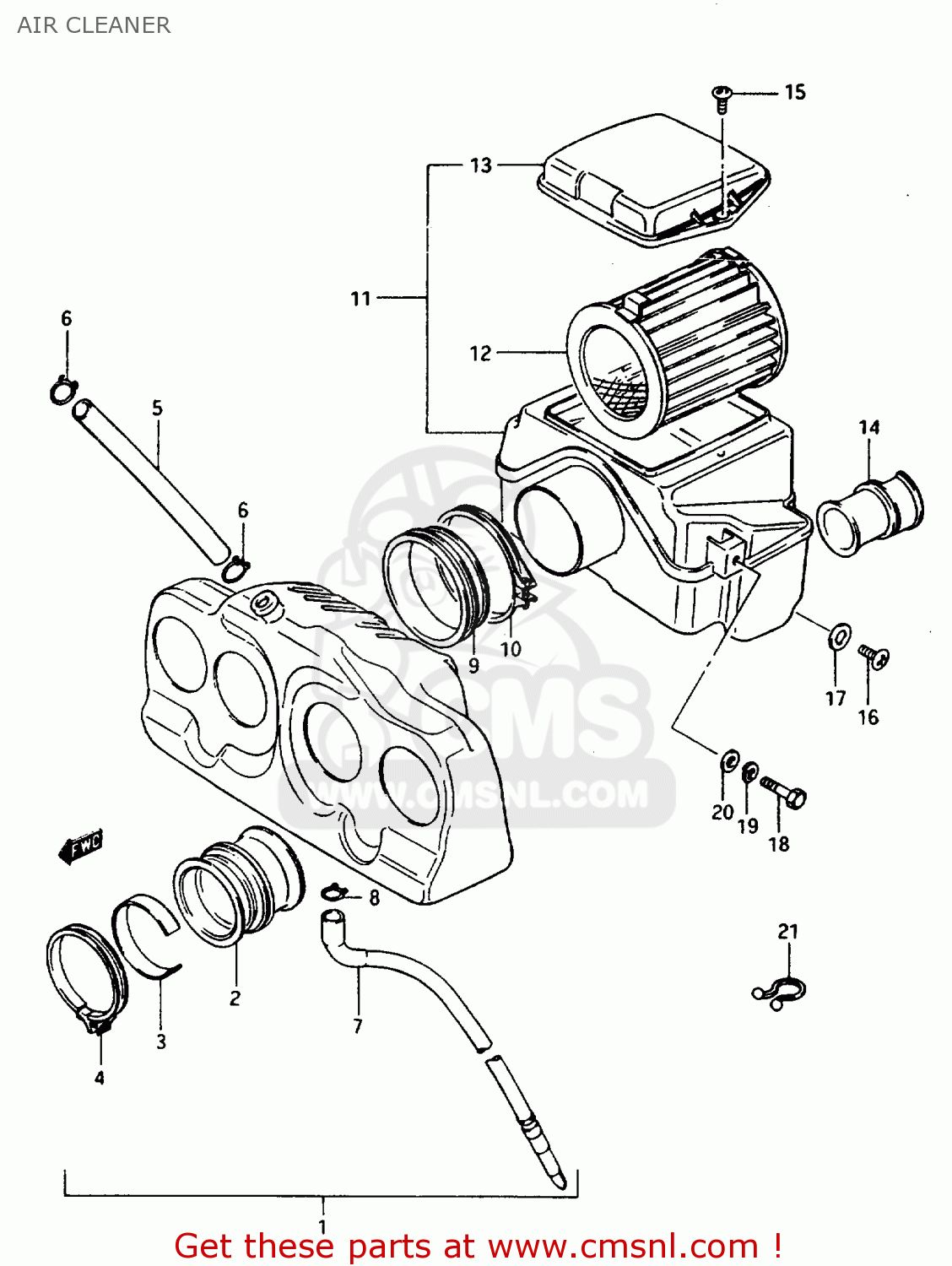

Air cleaner diagram GSX1150EF 1986 (G) (E06)

AIR CLEANER GSX1150EF 1986 (G) (E06)
AIR CLEANER GSX1150EF 1986 (G) (E06)
AIR CLEANER GSX1150EF 1986 (G) (E06)
prices are in EUR
ref
part #
description
quantity
1
1370100A00
ref: 1
CHAMBER ASSEMBLY,AIR CLEANER
€ 104.00
2
1388149021
ref: 2
TUBE,AIR CLEANER OUTLET
1388149021
€ 16.00
3
1388547030
ref: 3
RING,CARBURETOR AIR INLET HOSE
1388547030
€ 8.00
4
0940264207
ref: 4
CLAMP
€ 6.00
5
1385400240
ref: 5
HOSE,BREATHER
€ 0.00
6
1382837300
ref: 6
CLIP
€ 3.00
7
1387021264
ref: 7
DRAIN TUBE
€ 16.50
8
1382400A00
ref: 8
CLIP
1382400A00
€ 2.50
9
1373900A00
ref: 9
TUBE,JOINT
1373900A00
€ 12.00
10
0940280207
ref: 10
CLAMP
0940280207
€ 7.00
11
1370200A00
ref: 11
CASE ASSEMBLY,AIR CLEANER
€ 123.00
12
1378000A00
ref: 12
FILTER,AIR CLEANER
1378000A00
€ 30.50
13
1374000A00
ref: 13
CAP,AIR CLEANER
1374000A00
€ 12.50
14
1389100A00
ref: 14
TUBE,INLET
€ 8.00
15
0214205125
ref: 15
SCREW M5X12 DIN 7985/N
0214205125
€ 1.50
16
0211206168
ref: 16
SCREW
0211206168
€ 2.50
17
0916006007
ref: 17
WASHER
0916006007
€ 2.00
18
0110706168
ref: 18
BOLT, UPPER
€ 3.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
0940800031
ref: 21
CLIP
€ 1.50
