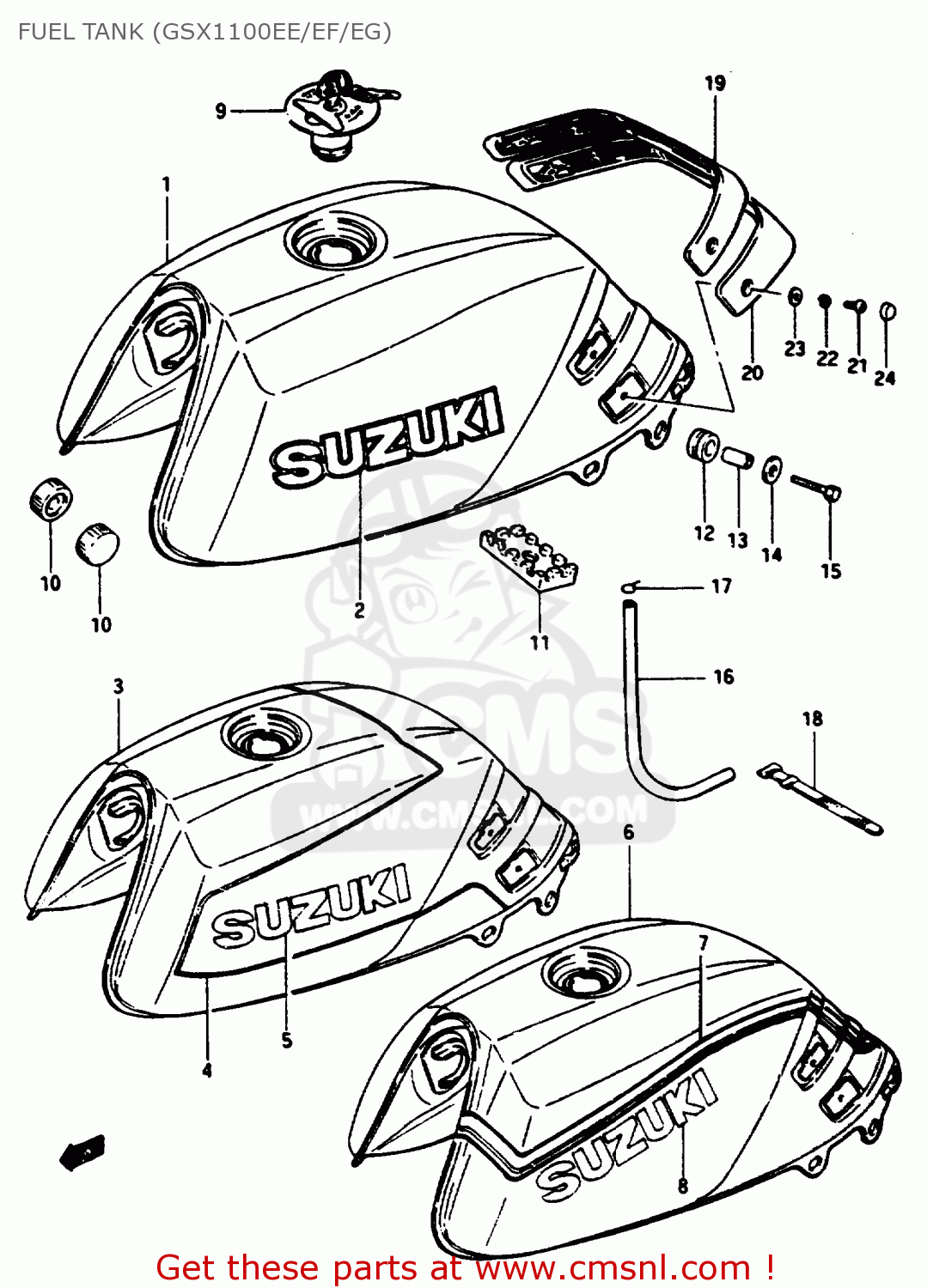

FUEL TANK (GSX1100EE/EF/EG)

ref

part #

description

quantity

1

4410000A0017R
ref: 1
MODEL E

TANK ASSY, FUEL (RED)

€ 441.00

2

681113130071L
ref: 2
MODEL E

EMBLEM,FUEL TA

€ 14.50

3-1

4410000A607JK
ref: 3-1
MODEL F

TANK, FUEL

€ 441.00

3-2

4410000A607JH
ref: 3-2
MODEL F

TANK, FUEL

€ 441.00

3-3

4910000A207JK
ref: 3-3
MODEL F E22

TANK ASSY, FUEL

€ 592.50

3-4

4910000A207JH
ref: 3-4
MODEL F E22

TANK ASSY, FUEL

€ 592.50

4-1

6811000A107JL
ref: 4-1
MODEL F FOR 7JK

TAPE SET,FUEL TANK

€ 0.00

4-2

6811000A107JF
ref: 4-2
MODEL F FOR 7JH

TAPE SET,FUEL TANK

€ 0.00

5-1

6811109300742
ref: 5-1
MODEL F FOR 7JK

EMBLEM (GOLD)

€ 10.50

5-2

6811109300019
ref: 5-2
MODEL F FOR 7JH

EMBLEM (BLACK)

€ 19.50

6-1

4910000A707JJ
ref: 6-1
MODEL G

TANK ASSY, FUEL

€ 0.00

6-2

4910000A907JJ
ref: 6-2
MODEL G E22

TANK ASSY, FUEL

€ 0.00

6-3

4910000A707JK
ref: 6-3
MODEL G

TANK ASSY, FUEL

€ 0.00

6-4

4910000A907JK
ref: 6-4
MODEL G E22

TANK ASSY, FUEL

€ 0.00

7-1

6811000A608BV
ref: 7-1
MODEL G FOR 7JJ

TAPE SET, FUEL TANK

€ 0.00

7-2

6811000A607JL
ref: 7-2
MODEL G FOR 7JK

TAPE SET, FUEL TANK

€ 0.00

8

681113320022R
ref: 8
MODEL G

EMBLEM,FUEL TANK

€ 0.00

9

4420043410KEY
ref: 9

CAP ASSY,FUEL TANK

€ 125.50

10

0932910016
ref: 10

CUSHION

€ 3.00

11

4454134500
ref: 11

CUSHION,FUEL TANK CTR

€ 13.00

12

0932009017
ref: 12

CUSHION

€ 3.00

13

0918006107
ref: 13

SPACER (6.4X9X20)

€ 3.00

14

0916006030
ref: 14

WASHER (6.5X29X1.6)

€ 2.50

15

0110706307
ref: 15

BOLT 6X30

€ 2.50

16

0934305165
ref: 16

HOSE,FUEL

€ 13.00

17

0940108402
ref: 17

CLIP

€ 1.50

18

0940718401
ref: 18

CLAMP(L:187)

€ 2.00

19

4425100A0057S
ref: 19

KNEE GRIP,FUEL TANK,UPPER

€ 39.00

20

4425200A0057S
ref: 20

GRIP,FUEL TANK KNEE LWR

€ 62.50

21

0211205088
ref: 21

SCREW

€ 2.00

22

0832121057
ref: 22

LOCK WASHER

€ 2.00

23

0832221057
ref: 23

WASHER

€ 2.50

24

4425300A0057S
ref: 24

CAP,KNEE GRIP

€ 4.00
