CARBURETOR

GSX1150EF 1986 (G) (E06)

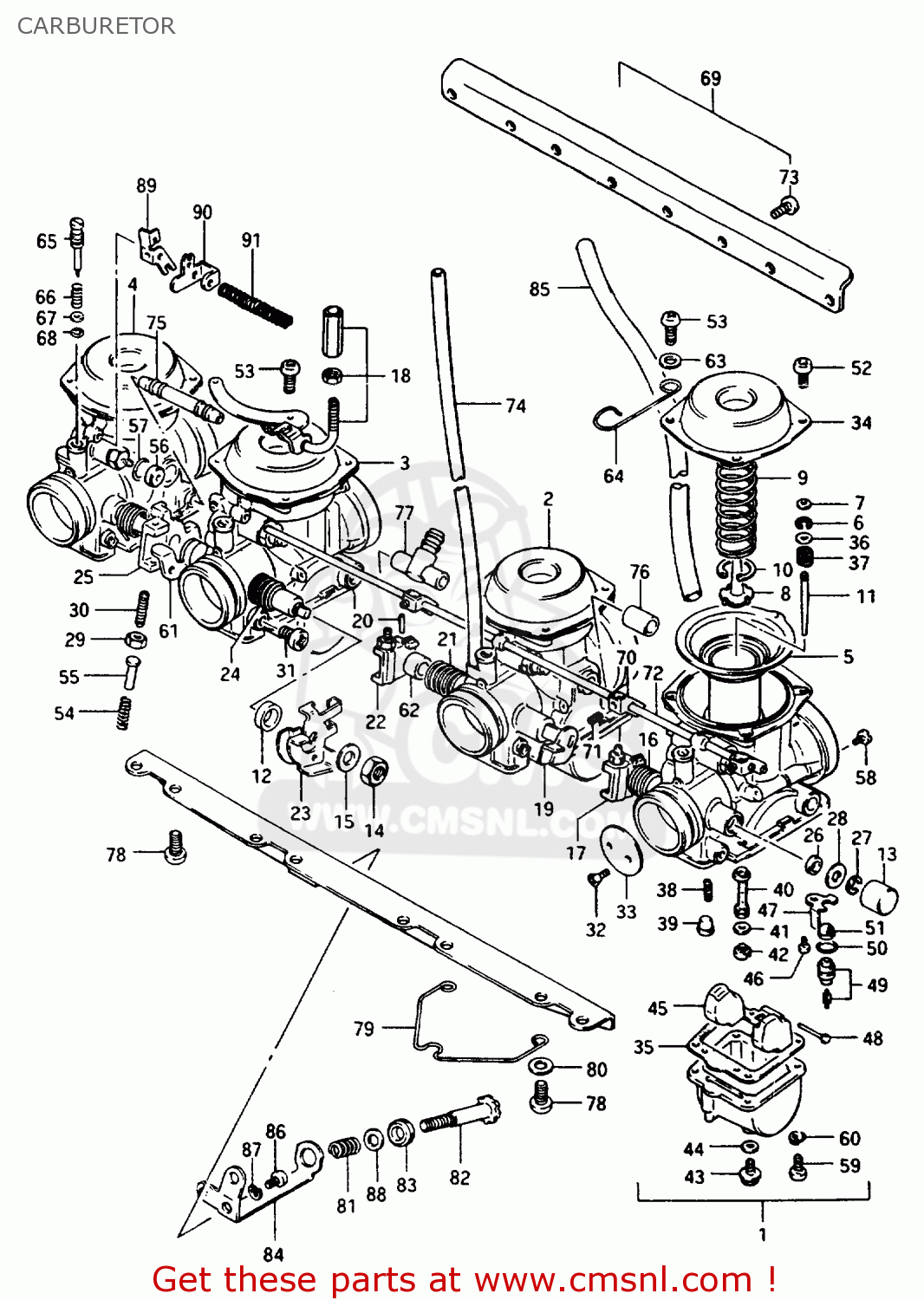

Carburetor diagram GSX1150EF 1986 (G) (E06)

CARBURETOR GSX1150EF 1986 (G) (E06)
CARBURETOR GSX1150EF 1986 (G) (E06)
CARBURETOR GSX1150EF 1986 (G) (E06)
prices are in EUR
ref
part #
description
quantity
1-1
1320100A30
ref: 1-1
CARBURETOR, LH
€ 253.50
1-2
1320100A00
ref: 1-2
E2,E4,E15,E16,E21,E2
CARBURETOR, LH
€ 253.50
1-3
1320100A20
ref: 1-3
E18
CARBURETOR, LH
€ 253.50
1-4
1320100A50
ref: 1-4
MODEL F/G E17,E39
CARBURETOR, LH
€ 253.50
2-1
1320200A30
ref: 2-1
CARBURETOR, ML
€ 319.00
2-2
1320200A00
ref: 2-2
E2,E4,E15,E16,E21,E2
CARBURETOR, ML
€ 319.00
2-3
1320200A20
ref: 2-3
E18
CARBURETOR, ML
1320200A20
€ 319.00
2-4
1320200A50
ref: 2-4
MODEL F/G E1M,E39
CARBURETOR, ML
€ 319.00
3-1
1320300A30
ref: 3-1
CARBURETOR, MR
€ 0.00
3-2
1320300A00
ref: 3-2
E2,E4,E15,E16,E21,E2
CARBURETOR, MR
€ 0.00
3-3
1320300A20
ref: 3-3
E18
CARBURETOR, MR
€ 0.00
3-4
1320300A50
ref: 3-4
MODEL F/G E1M,E39
CARBURETOR, MR
€ 0.00
4-1
1320400A30
ref: 4-1
CARBURETOR, RH
€ 0.00
4-2
1320400A00
ref: 4-2
E2,E4,E15,E16,E21,E2
CARBURETOR, RH
€ 0.00
4-3
1320400A20
ref: 4-3
E18
CARBURETOR, RH
€ 0.00
4-4
1320400A50
ref: 4-4
MODEL F/G E17,E39
CARBUERETOR, RH
€ 0.00
5
1350000A10
ref: 5
DIAPHRAGM,CARBURETOR
€ 104.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350300A10
ref: 9
SPRING
€ 9.00
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338349210
ref: 11
NEEDLE,JET
1338349210
€ 15.00
12-1
1355749200
ref: 12-1
MR
GASKET
1355749200
€ 7.00
12-2
1355700A50
ref: 12-2
MR MODEL F/G E1M,E39
RING
€ 0.00
13
1357845530
ref: 13
LH,RH
CAP,THROTTLE SHAFT
€ 5.50
14
0831022085
ref: 14
MR
0831022085
15
1360647070
ref: 15
MR
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355000A10
ref: 17
LH
SHAFT,THROTTLE
€ 0.00
18
1362100A10
ref: 18
MR
BRACKET
€ 13.50
19
1355000A20
ref: 19
ML
SHAFT,THROTTLE
€ 0.00
20
1356347070
ref: 20
ML
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23-1
1355547070
ref: 23-1
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23-2
1355500A50
ref: 23-2
MR MODEL F/G E17,E39
LEVER
€ 0.00
24-1
1357347080
ref: 24-1
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24-2
1357300A50
ref: 24-2
MR,RH MODEL F/G E1M,
SPRING
€ 0.00
25
1355000A40
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
1360747070
30
1360547080
ref: 30
LH,ML,RH
SCREW
1360547080
€ 7.00
31-1
1360573000
ref: 31-1
MR
SCREW
1360573000
€ 10.50
31-2
1360500A50
ref: 31-2
MR MODEL F/G E17,E39
SCREW
€ 0.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33-1
1355100A20
ref: 33-1
VALVE, THROTTLE (130)
€ 0.00
33-2
1355100A10
ref: 33-2
MODEL F/G E1M,E39
VALVE
€ 0.00
34
1350200A20
ref: 34
COVER,DIAPHRAGM
1350200A20
€ 23.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
36
1338244030
ref: 36
WASHER
1338244030
€ 3.50
37
1338844030
ref: 37
SPRING
1338844030
€ 6.00
38
0949247011
ref: 38
JET, PILOT (47.5)
€ 12.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
1335744080
€ 4.50
40
0949400469
ref: 40
JET, NEEDLE (X-5)
€ 9.50
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42-1
0949124016
ref: 42-1
LH,RH
JET,MAIN(120)
0949124016
€ 11.50
42-2
0949124013
ref: 42-2
ML,MR
JET,MAIN(122.5)
0949124013
€ 7.00
42-3
0949124016
ref: 42-3
E2,E4,E15,E16,E18,E2
JET,MAIN(120)
0949124016
€ 11.50
43
1324744080
ref: 43
PLUG,DRAIN
1324744080
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
1324644080
€ 3.50
45
1325044080
ref: 45
FLOAT
1325044080
€ 31.00
46
0211204066
ref: 46
SCREW
€ 2.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
48
1325492311
ref: 48
1325492311
49
1337011400
ref: 49
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
1337444080
€ 6.00
51
1337665010
ref: 51
FILTER
€ 6.50
52
0211205105
ref: 52
LHD3,ML:,MR:2,RH:4
SCREW
€ 2.00
53
0211205125
ref: 53
LH:1,MR:2
SCREW
0211205125
€ 1.50
54
1326844010
ref: 54
LH,ML,RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
55
1357547070
ref: 55
LH,ML,RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
56
1368231210
ref: 56
1368231210
57
1327847090
ref: 57
O RING
1327847090
€ 2.00
58
0949325001
ref: 58
JET,AIR(125)
€ 11.50
59
0211205165
ref: 59
SCREW
0211205165
€ 2.00
60
0832121055
ref: 60
WASHER,LOCK
0832121055
€ 3.00
61
1355000A30
ref: 61
MR
SHAFT,THROTTLE
€ 0.00
62
1338744210
ref: 62
ML
SPACER,THROTTLE SHAFT
€ 0.00
63
1360600A10
ref: 63
LH
WASHER
€ 2.00
64-1
1369200A10
ref: 64-1
LH
CLIP
€ 0.00
64-2
1369200A20
ref: 64-2
LH MODEL F/G E17,E39
CLIP
€ 0.00
65
1327947070
ref: 65
SCREW,PILOT
1327947070
€ 11.50
66
1326847070
ref: 66
1326847070
67
1327744080
ref: 67
1327744080
68
1327844080
ref: 68
O-RING
€ 4.00
69
1321000A10
ref: 69
CARBURETOR ASSEMBLY
€ 0.00
70
1342249330
ref: 70
LEVER
€ 10.00
71
1360549330
ref: 71
SCREW
1360549330
€ 5.50
72
1341049200
ref: 72
SHAFT,STARTER
1341049200
€ 29.00
73
0211205125
ref: 73
SCREW
0211205125
€ 1.50
74
1368345110
ref: 74
HOSE
€ 14.00
75
1368549210
ref: 75
NIPPLE
1368549210
€ 16.50
76
1368344080
ref: 76
L:250 18
1368344080
77
1368549200
ref: 77
NIPPLE
1368549200
€ 26.50
78
0211206125
ref: 78
SCREW
0211206125
€ 1.50
79
1361949210
ref: 79
CLIP
1361949210
€ 10.00
80
1361549200
ref: 80
WASHER
€ 0.00
81
1327193011
ref: 81
SPRING
1327193011
€ 4.50
82
1326743420
ref: 82
ADJUSTER
€ 15.50
83
1327634390
ref: 83
BUSH
1327634390
€ 6.00
84
1362700A10
ref: 84
BRACKET
€ 0.00
85
1368311420
ref: 85
HOSE
€ 13.00
86
0211205105
ref: 86
SCREW
€ 2.00
87
0832121055
ref: 87
WASHER,LOCK
0832121055
€ 3.00
88
1343234390
ref: 88
WASHER
€ 1.50
89
1341349360
ref: 89
LEVER
€ 4.00
90
1342149360
ref: 90
LEVER
€ 3.00
91
1343749360
ref: 91
SPRING
€ 0.00
