CUSHION LEVER
GSX1150EF 1986 (G) (E06)

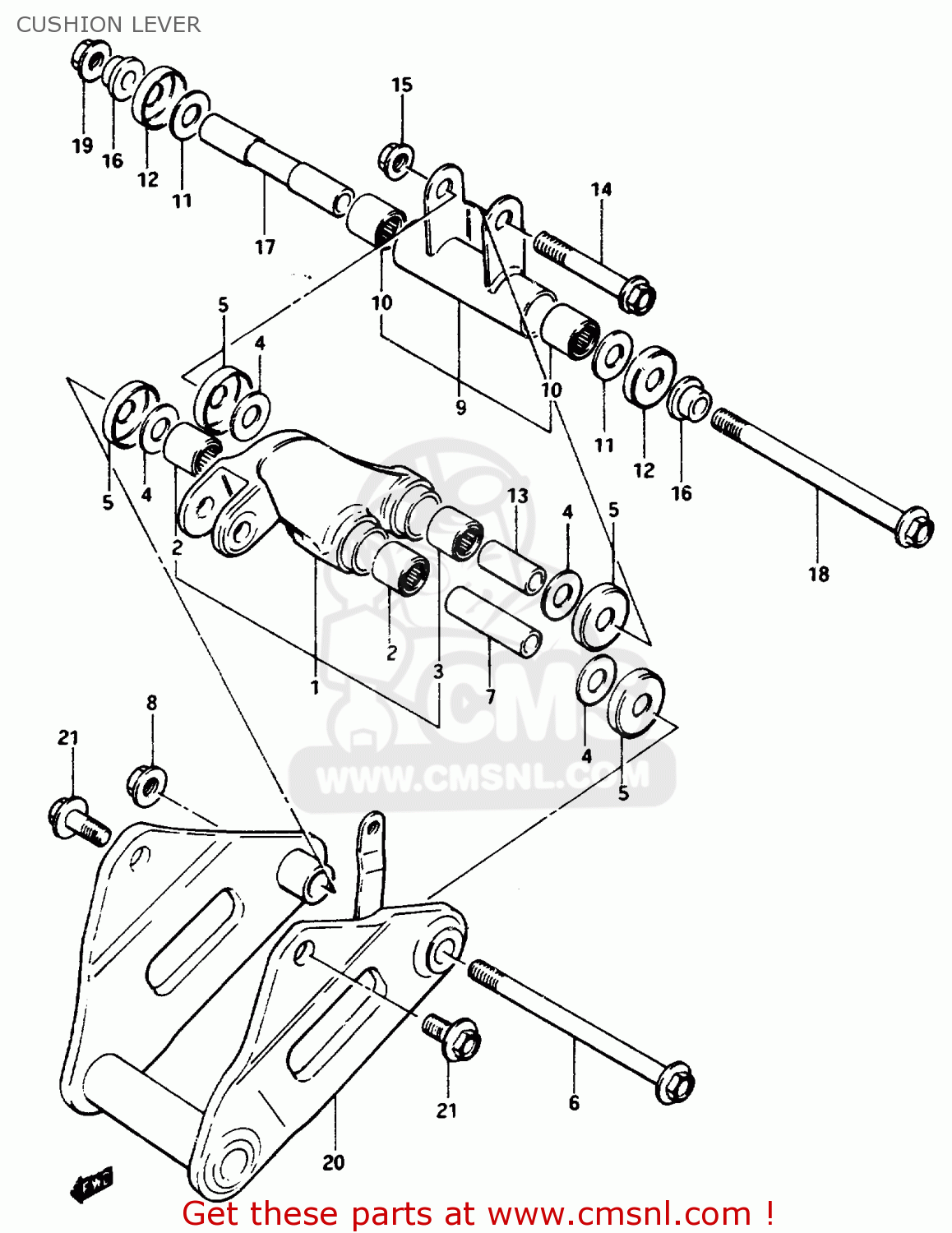

Cushion lever diagram GSX1150EF 1986 (G) (E06)
CUSHION LEVER GSX1150EF 1986 (G) (E06)
×
prices are in EUR
ref
part #
description
quantity
1
6260000810
ref: 1
LEVER SET,REAR CUSHION
€ 354.00
2
0926317011
ref: 2
ROLLER BEARING (17X24X2
€ 13.50
3
0926317020
ref: 3
ROLLER BEARING (17X24X25)
€ 19.00
4
0821112281
ref: 4
WASHER
€ 2.00
5
6126241500
ref: 5
COVER,RR SWGARM DUST SEAL
€ 7.50
6
6265731301
ref: 6
BOLT,CUSHION ROD
€ 19.00
7
6262300A00
ref: 7
SPACER,REAR CUSHION LEVER
€ 24.00
8
0831931125
ref: 8
NUT 12MM
€ 3.00
9
6260000820
ref: 9
ROD SET,REAR CUSHION,LEFT
€ 59.50
10
0926317011
ref: 10
ROLLER BEARING (17X24X2
€ 13.50
11
0821112281
ref: 11
WASHER
€ 2.00
12
6126241500
ref: 12
COVER,RR SWGARM DUST SEAL
€ 7.50
13
6264615500
ref: 13
SPACER,RR CUSHION LEVER ROD UP
€ 11.50
14
6264815500
ref: 14
BOLT, UPPER
€ 7.00
15
0831931125
ref: 15
NUT 12MM
€ 3.00
16
6262600A00
ref: 16
SPACER,REAR CUSHION ROD
€ 9.00
17
6265615500
ref: 17
SPACER,RR CUSHION LVR ROD LOW
€ 187.00
18
6265731301
ref: 18
BOLT,CUSHION ROD
€ 19.00
19
0831931125
ref: 19
NUT 12MM
€ 3.00
20
6241000A00
ref: 20
BRACKET,REAR SHOCK ABSORBER
€ 76.00
21
6241300A00
ref: 21
BOLT,REAR SHOCK ABSORBER BRACKET
€ 3.50
