FRAME

GSX1150EF 1986 (G) (E06)

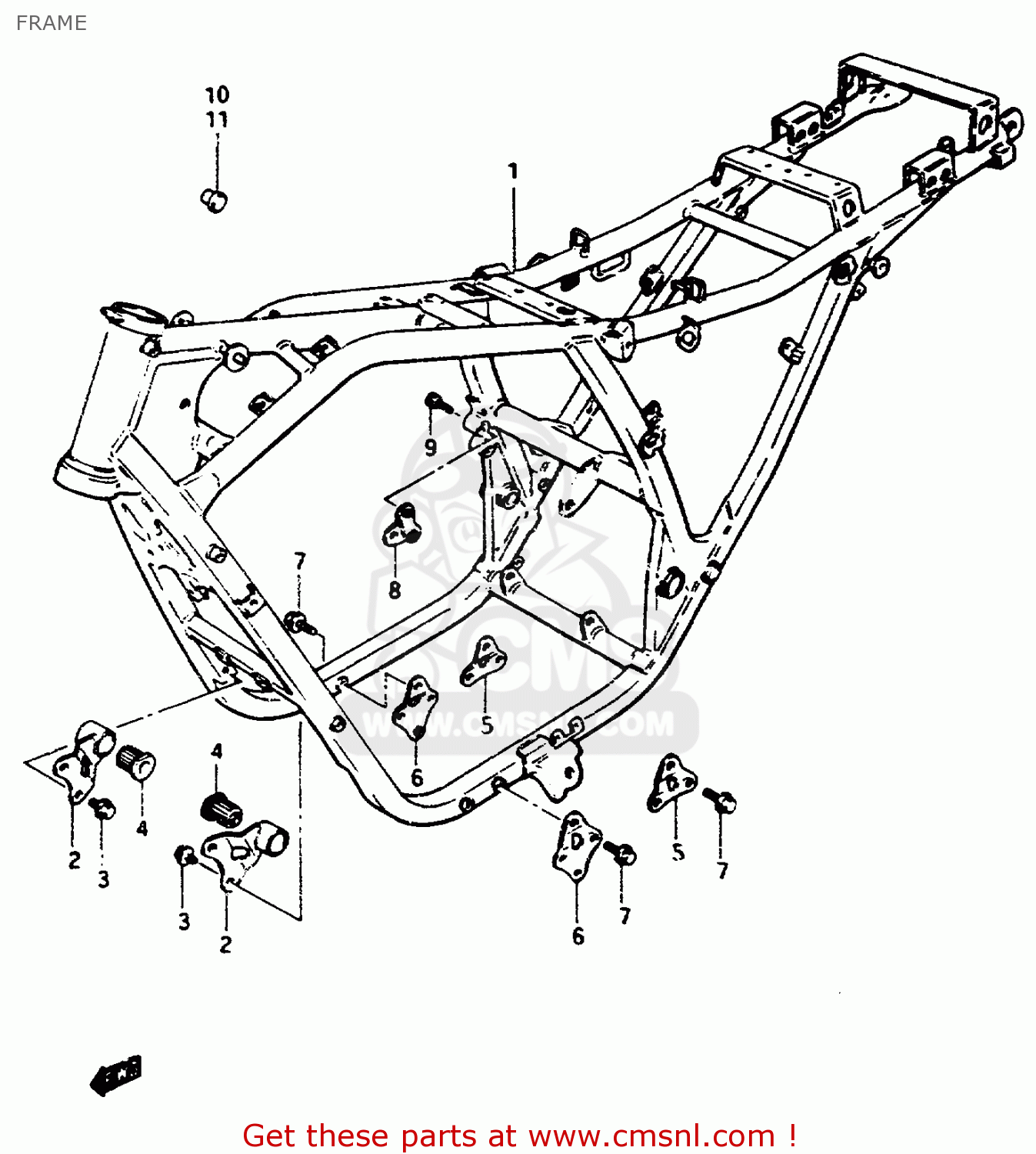

Frame diagram GSX1150EF 1986 (G) (E06)

FRAME GSX1150EF 1986 (G) (E06)

FRAME GSX1150EF 1986 (G) (E06)

prices are in EUR

ref

part #

description

quantity

1-1

4110000A0113L
ref: 1-1
MODEL E/F

FRAME

€ 1,677.50

1-2

4110000A0213L
ref: 1-2
MODEL G

FRAME

€ 1,677.50

1-3

4110000A4013L
ref: 1-3
MODEL E/F E17

FRAME (SILVER)

€ 0.00

1-4

4110000A4113L
ref: 1-4
MODEL G E17

FRAME (SILVER)

€ 0.00

1-5

4110000A3013L
ref: 1-5
MODEL E/F E16,E18

FRAME (SILVER)

€ 0.00

1-6

4110000A3113L
ref: 1-6
MODEL G E2,E16,E18

FRAME (SILVER)

€ 0.00

1-7

4110000A2013L
ref: 1-7
MODEL E/F E15,E26

FRAME (SILVER)

€ 0.00

1-8

4110000A2113L
ref: 1-8
MODEL G E15

FRAME (SILVER)

€ 0.00

1-9

4110000A5013L
ref: 1-9
MODEL E/F E24

FRAME (SILVER)

€ 0.00

1-10

4110000A5113L
ref: 1-10
MODEL G E24

FRAME (SILVER)

€ 0.00

1-11

4110000A6013L
ref: 1-11
MODEL E/F E22

FRAME (SILVER)

€ 0.00

1-12

4110000A6113L
ref: 1-12
MODEL G E22

FRAME (SILVER)

€ 0.00

2-1

4191000A0015T
ref: 2-1
MODEL E

PLATE COMP,ENGINE MOUNTING

€ 18.00

2-2

4191000A0115T
ref: 2-2
MODEL F/G

PLATE,ENGINE MOUNTING NO

€ 18.00

3

0151708128
ref: 3

BOLT 8X12

€ 3.50

4

0931910042
ref: 4

BUSH

€ 16.50

5-1

4192100A0013L
ref: 5-1
GSX1100EEE/ESE

PLATE,ENGINE MOUNTING

€ 8.00

5-2

4192100A0113L
ref: 5-2
GSX1100EF/ESF/EG/ESG

PLATE,ENGINE MOUNTING NO

€ 8.00

6

4192000A1113L
ref: 6
GSX1100EFE/EFF/EFG/G

PLATE,ENGINE MOUNTING NO

€ 11.50

7

0151708128
ref: 7

BOLT 8X12

€ 3.50

8-1

4194000A0015T
ref: 8-1
MODEL E/

PLATE,ENGINE MOUNTING

€ 0.00

8-2

4194000A0115T
ref: 8-2
MODEL F/G

PLATE,ENGINE MOUNTING NO

€ 0.00

9

0711008258
ref: 9

BOLT

€ 3.50

10

0925006008
ref: 10

CAP(OD:10)

€ 3.00

11

0925006007
ref: 11
GSX1100EE/EF/EG

PLUG

€ 2.00
