COWLING BODY (MODEL K5)

GSX1300R HAYABUSA 2005 (K5) USA (E03)

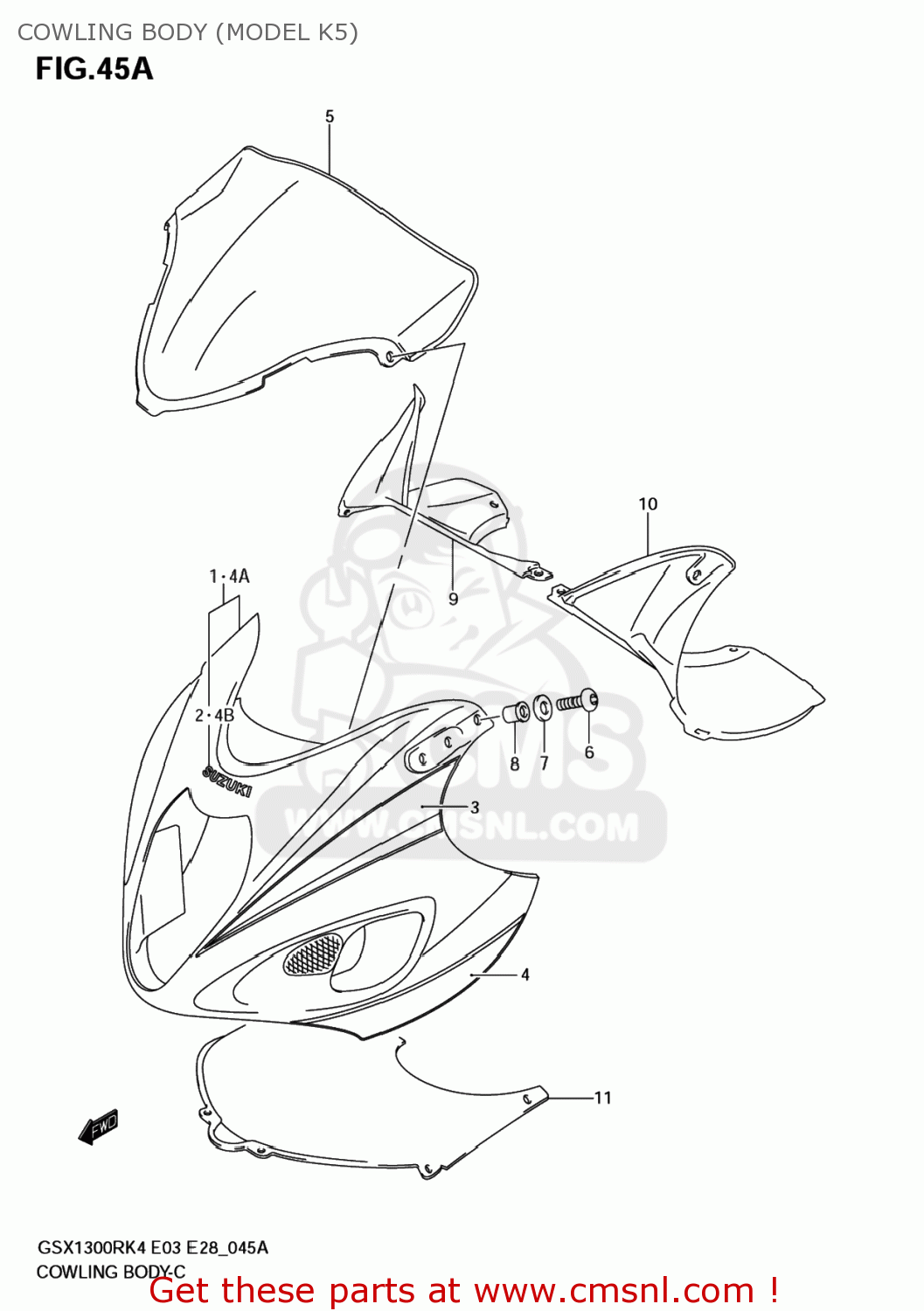

Cowling body (model k5) diagram GSX1300R HAYABUSA 2005 (K5) USA (E03)

COWLING BODY (MODEL K5) GSX1300R HAYABUSA 2005 (K5) USA (E03)

COWLING BODY (MODEL K5) GSX1300R HAYABUSA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440124F90YBA
ref: 1-1

COWLING ASSY,BODY

€ 428.00

1-2

9440124F90YAY
ref: 1-2

COWLING ASSY,BODY

€ 446.50

1-3

9440124F90YHG
ref: 1-3

COWLING ASSY,BODY

€ 472.50

2-1

6828124F10YD8
ref: 2-1

EMBLEM

€ 10.50

2-2

6828124F10019
ref: 2-2

EMBLEM,SUZUKI

€ 10.50

3-1

6828024F00MB9
ref: 3-1

TAPE SET,COWL BODY UPR

€ 31.50

3-2

6828024F00BVA
ref: 3-2

TAPE SET,COWL BODY UPR

€ 34.50

3-3

6828024F00BVB
ref: 3-3

TAPE SET,COWL BODY UPR

€ 34.50

4A

9440124F80YHF
ref: 4A

COWLING ASSY,BODY

€ 0.00

4B

6828124F1017U
ref: 4B

EMBLEM,SUZUKI

€ 10.50

4-1

6828024F10NY2
ref: 4-1

TAPE SET,COWL BODY SIDE

€ 26.50

4-2

6828024F10BPJ
ref: 4-2

TAPE SET,COWL BODY SIDE

€ 24.00

4-3

6828024F10BPK
ref: 4-3

TAPE SET,COWL BODY SIDE

€ 22.00

5

9461124F00
ref: 5

WINDSCREEN

€ 205.50

6

0913905025
ref: 6

SCREW(5X14)

€ 2.00

7

0832201053
ref: 7
08322-0105A

WASHER

€ 2.50

8

0915905019
ref: 8

NUT

€ 5.50

9

9464124F00
ref: 9

PANEL,UPR,R

€ 29.50

10

9465124F00
ref: 10

PANEL,UPR,L

€ 28.50

11

9441924F00
ref: 11

COVER,BODY COWLING

€ 48.50
