GSX1300R HAYABUSA 2005 (K5) USA (E03)

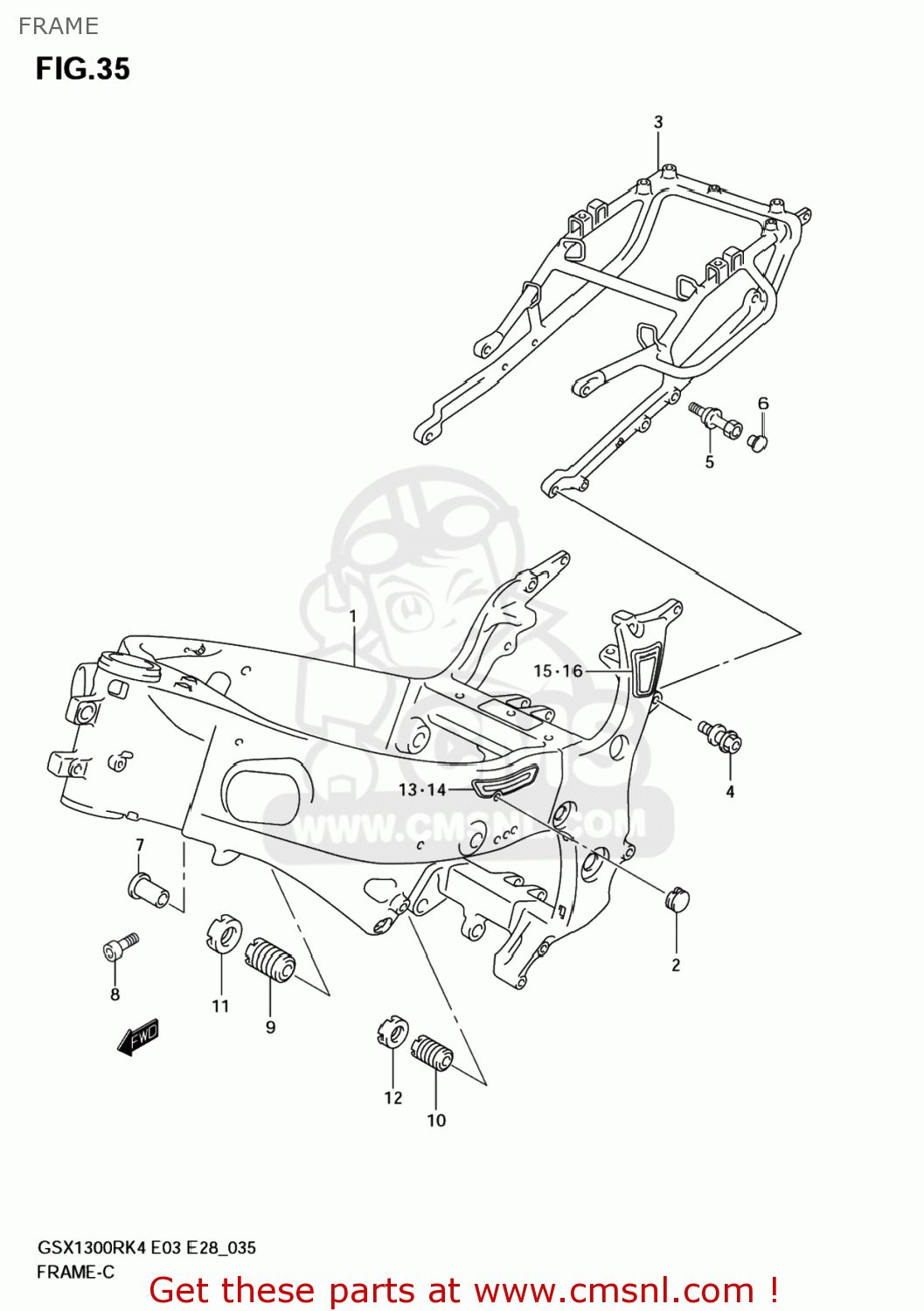

Frame diagram GSX1300R HAYABUSA 2005 (K5) USA (E03)
FRAME GSX1300R HAYABUSA 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110024F02
ref: 1-1
41100-24F04
FRAME
€ 3,972.00
1-2
4110024F20291
ref: 1-2
41100-24F21-291
FR.R1300K3 L.ED
€ 3,346.00
1-3
4110024F20YAP
ref: 1-3
41100-24F22-YAP
FRAME (BLACK)
€ 3,166.00
1-4
4110024F21YAP
ref: 1-4
41100-24F22-YAP
FRAME (BLACK)
€ 3,166.00
2
4358533E00
ref: 2
CAP,TANK RAIL
€ 9.00
3
4120024F10
ref: 3
PAIL,SEAT
€ 684.50
4
0910310296
ref: 4
BOLT(10X30)
€ 6.00
5
4631524F01
ref: 5
HOOK,SEAT RAIL
€ 21.50
6
0925005009
ref: 6
CAP(OD:10)
€ 2.50
7
4191133E10
ref: 7
SPACER,ENGINE MTG
€ 16.50
8
0910608105
ref: 8
BOLT(8X30)
€ 3.00
9
4192119F11
ref: 9
BOLT,CRANKCASE ADJUST
€ 42.00
10
4192133E11
ref: 10
BOLT,CRANKCASE ADJUST
€ 46.00
11
4192219F11
ref: 11
NUT,CRANK CASE ADJUST
€ 17.00
12
4192233E10
ref: 12
NUT,CRANKCASE ADJUST
€ 14.50
13
4186024F00
ref: 13
PAD,TANK RAIL,R
€ 58.00
14
4196024F00
ref: 14
PAD,TANK RAIL,L
€ 51.00
15
4185024F00
ref: 15
EMBLEM,FRAME BODY,R
€ 112.00
16
4195024F00
ref: 16
EMBLEM,FRAME BODY,L
€ 117.50
