STARTER CLUTCH

GSX1300R HAYABUSA 2005 (K5) USA (E03)

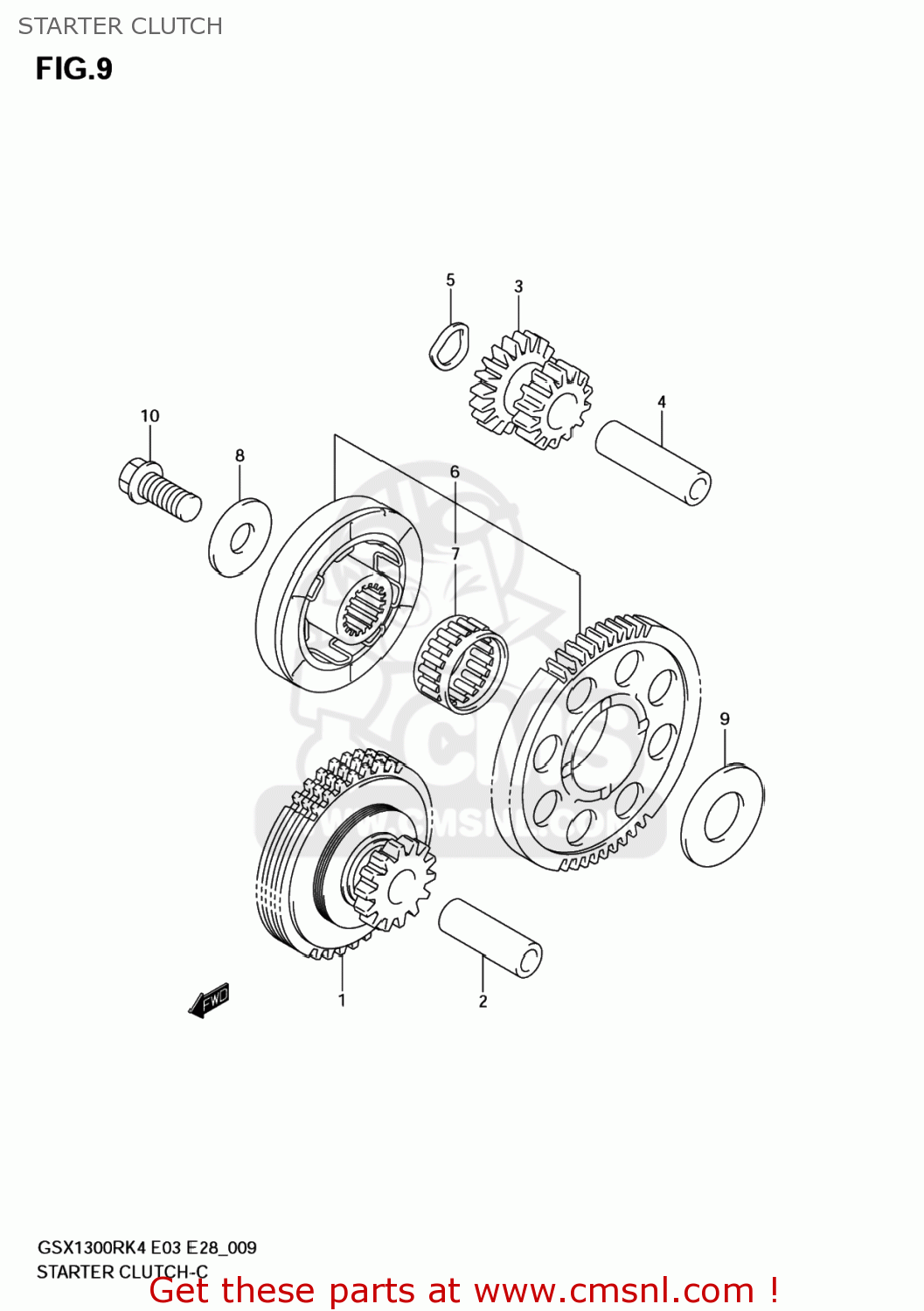

Starter clutch diagram GSX1300R HAYABUSA 2005 (K5) USA (E03)

STARTER CLUTCH GSX1300R HAYABUSA 2005 (K5) USA (E03)

STARTER CLUTCH GSX1300R HAYABUSA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1260024F00
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 180.00

1

1260024F00
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 180.00

2

1261524F00
ref: 2

PIN,STARTER IDLE GEAR NO.1

€ 8.00

3

1261224F00
ref: 3

GEAR,STARTER IDLE NO.2

€ 49.50

3

1261224F00
ref: 3

GEAR,STARTER IDLE NO.2

€ 49.50

4

1215105200
ref: 4

PIN ,PISTON

€ 6.50

5

0916414008
ref: 5

WASHER

€ 2.50

6-1

1260024850
ref: 6-1

CLUTCH SET,STARTER

€ 400.50

6-2

1260024860
ref: 6-2
12600-24861

CLUTCH SET,STA

€ 332.00

7

0926328031
ref: 7

BEARING(28X34X16.8)

€ 27.00

8

0821110285
ref: 8

WASHER

€ 2.50

9

0821120403
ref: 9

WASHER

€ 3.50

10

0910310189
ref: 10

BOLT(10X23)

€ 4.50
