REAR WHEEL
GSX1300R HAYABUSA 2005 (K5) USA (E03)

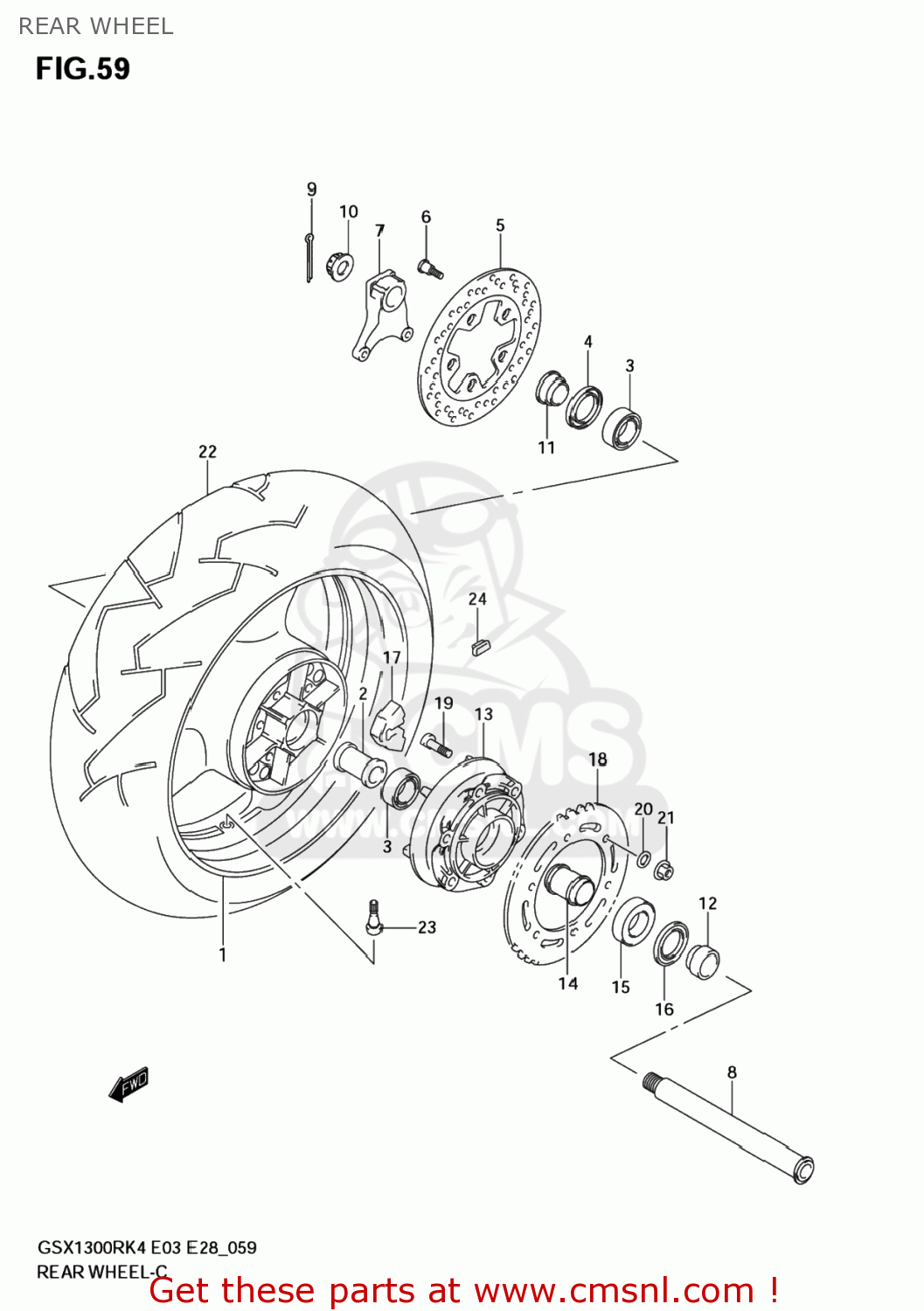

Rear wheel diagram GSX1300R HAYABUSA 2005 (K5) USA (E03)
REAR WHEEL GSX1300R HAYABUSA 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411133E11019
ref: 1-1
WHEEL,RR(17M/CXMT6.00)
€ 778.00
1-1
6411133E11019
ref: 1-1
WHEEL,RR(17M/CXMT6.00)
€ 778.00
1-1
6411133E11019
ref: 1-1
WHEEL,RR(17M/CXMT6.00)
€ 778.00
1-1
6411133E11019
ref: 1-1
WHEEL,RR(17M/CXMT6.00)
€ 778.00
1-2
6411133E30BAP
ref: 1-2
WHEEL,RR(17M/CXMT6.00)
€ 0.00
1-2
6411133E30BAP
ref: 1-2
WHEEL,RR(17M/CXMT6.00)
€ 0.00
1-3
6411133E11Y6G
ref: 1-3
WHEEL,RR(17M/CXMT6.00)
€ 745.00
1-3
6411133E11Y6G
ref: 1-3
WHEEL,RR(17M/CXMT6.00)
€ 745.00
2
6473133E10
ref: 2
SPACER,RR HUB BEARING
€ 62.50
3
0926232008
ref: 3
BEARING(32X58X13)
€ 31.50
4
0928538001
ref: 4
SEAL,OIL(38X58X7)
€ 7.50
5
6921121E00
ref: 5
DISC,RR BRAKE
€ 249.00
6
0910608148
ref: 6
BOLT(8X33)
€ 6.00
7
6972124F00
ref: 7
BRACKET,RR CALIPER
€ 111.50
8
6471133E10
ref: 8
AXLE,RR
€ 129.00
9-1
0411140408
ref: 9-1
04111-4040A
PIN, COTTER
€ 2.00
9-2
041114035A
ref: 9-2
PIN
€ 1.50
10
0914125001
ref: 10
NUT
€ 25.00
11
6474133E00
ref: 11
SPACER,RR AXLE,R
€ 18.50
12
6475124F00
ref: 12
SPACER,RR AXLE,L
€ 25.00
13
6461133E02
ref: 13
DRUM,RR SPROCKET
€ 189.00
14
6473333E00
ref: 14
RETAINER,RR SPROCKET DRUM
€ 37.50
15
0926232007
ref: 15
09262-32022
BEARING
€ 49.00
16
0928539001
ref: 16
SEAL,OIL(39X65X7)
€ 9.00
17
6465131001
ref: 17
ABSORBER,RR HUB SHOCK
€ 9.50
18
6451124F01
ref: 18
SPROCKET,RR(NT:40-530)
€ 93.50
19
0911910059
ref: 19
BOLT
€ 3.50
20
0832201107
ref: 20
WASHER
€ 2.50
21-1
0831931107
ref: 21-1
NUT
€ 3.00
21-2
083193110A
ref: 21-2
NUT
€ 3.00
22
6511024F10
ref: 22
TIRE,RR(190/50 ER17 73W)
€ 1,035.00
22
6511024F10
ref: 22
TIRE,RR(190/50 ER17 73W)
€ 1,035.00
23
4313024A00
ref: 23
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
24-1
5541100A00
ref: 24-1
BALANCER,WHEEL (10G)
€ 6.50
24-2
5541200A01
ref: 24-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
24-3
5541117G00
ref: 24-3
BALANCER,WHEEL(10G)
€ 6.50
24-4
5541217G00
ref: 24-4
BALANCER,WHEEL(20G)
€ 7.00
24-5
5541317G00
ref: 24-5
BALANCER,WHEEL(30G)
€ 7.50
