MUFFLER
GSX1300R HAYABUSA 2005 (K5) USA (E03)

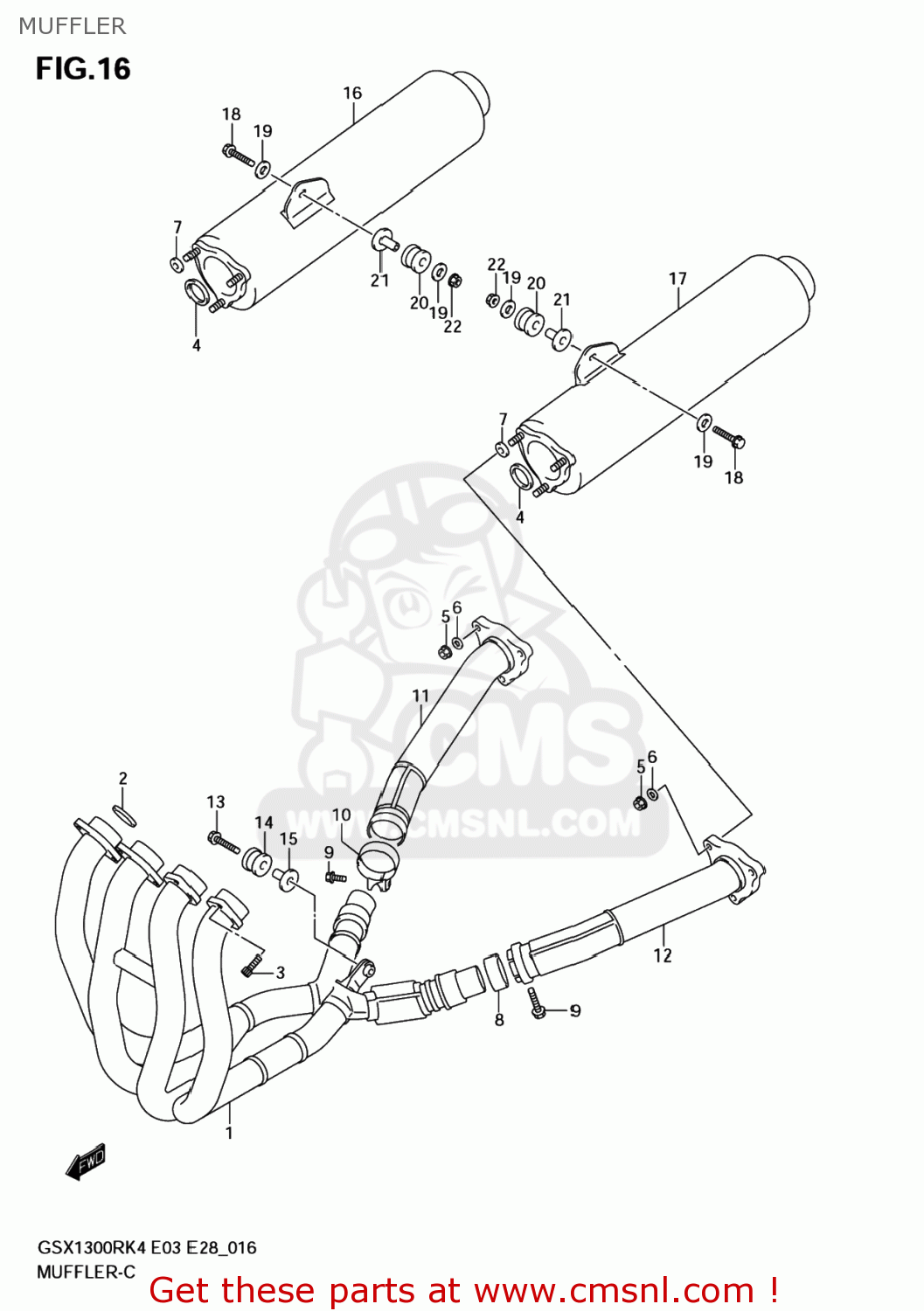

Muffler diagram GSX1300R HAYABUSA 2005 (K5) USA (E03)
MUFFLER GSX1300R HAYABUSA 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410024F40
ref: 1
EXHAUST
€ 1,003.00
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 9.00
3
0713008253
ref: 3
07130-0825B
BOLT
€ 3.50
4
1418133E00
ref: 4
GASKET,MUFFLER JOINT
€ 6.50
5
0915908116
ref: 5
NUT
€ 7.50
6
0916008059
ref: 6
WASHER(8.5X18X1.6)
€ 2.00
7
0928008012
ref: 7
O RING(D:1.9,ID:7.8)
€ 4.00
8
1477124F00
ref: 8
CONNECTOR,MUFFLER
€ 14.00
9
0155008403
ref: 9
01550-0840A
BOLT
€ 3.50
10
1445924F30
ref: 10
CLAMP,CONNECTOR MUFFLER,R
€ 19.50
11
1423024F40
ref: 11
PIPE,JOINT,R
€ 390.50
12
1424024F30
ref: 12
PIPE,JOINT,L
€ 388.00
13
0911808152
ref: 13
09118-08152-A05
BOLT 8X45
€ 5.00
14
0932012067
ref: 14
CUSHION
€ 13.00
15
0918008152
ref: 15
SPACER(8.6X12X24.2)
€ 6.00
16
1431024F00H01
ref: 16
BODY,MUFFLER,R
€ 929.50
17
1434024F00H01
ref: 17
BODY,MUFFLER,L
€ 940.50
18
0910308358
ref: 18
BOLT(8X45)
€ 3.50
19
0916008142
ref: 19
WASHER(8.5X28X1.5)
€ 2.50
20
0932012049
ref: 20
CUSHION
€ 9.00
21
0918008156
ref: 21
SPACER(8.6X12X27.1)
€ 6.50
22
0915908034
ref: 22
NUT
€ 2.00
