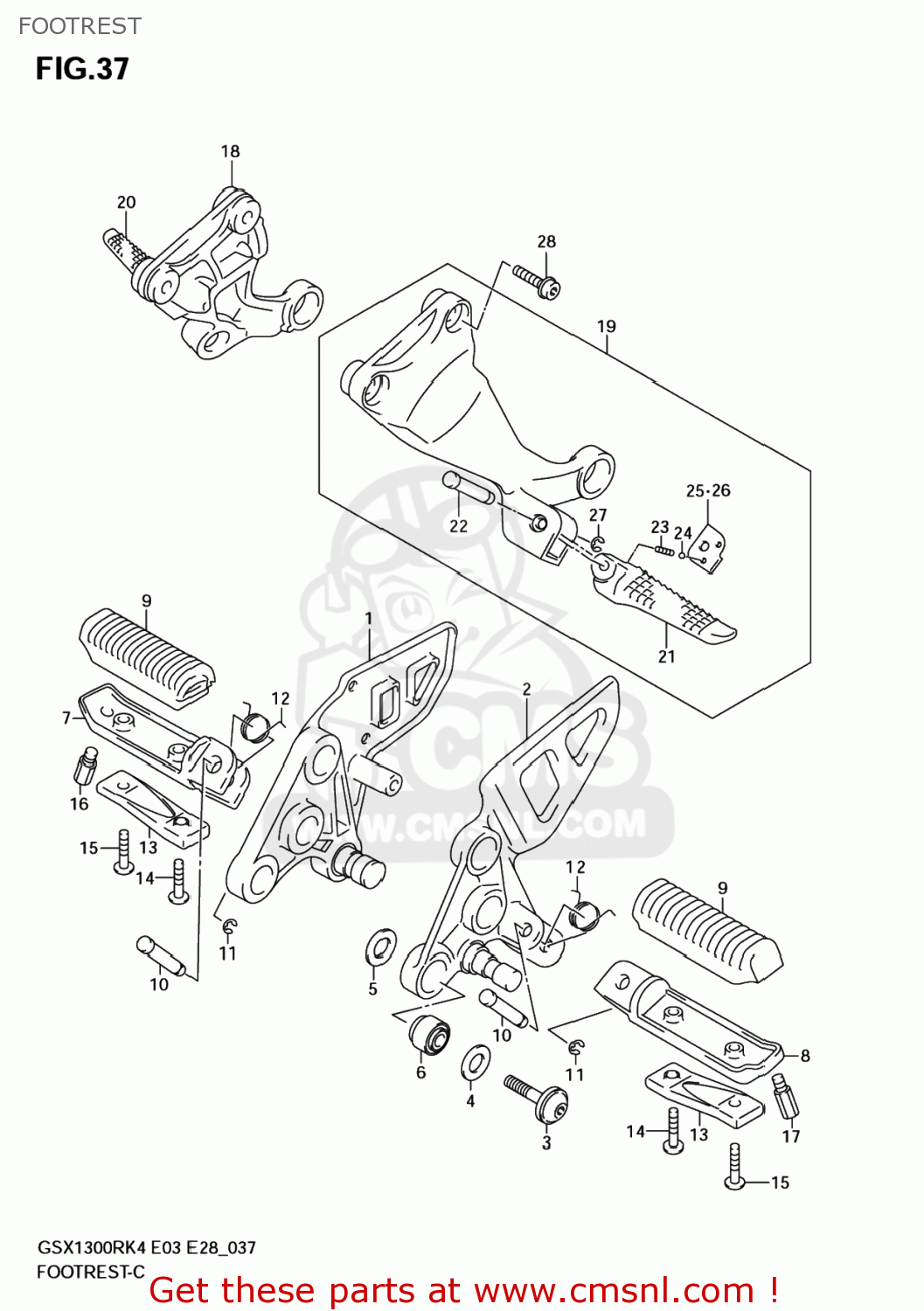

FOOTREST

ref

part #

description

quantity

1

4351024F00
ref: 1

BRACKET,FR FOOTREST,R

€ 114.00

2

4352124F00
ref: 2

BRACKET,FR FOOTREST,L

€ 135.50

3

0910608147
ref: 3

BOLT(8X30)

€ 6.00

4

0916113004
ref: 4

WASHER(13.7X24X2)

€ 3.50

5

0916117002
ref: 5

WASHER(17.2X24X2.2)

€ 3.50

6

0931908045
ref: 6

BUSH(8.4X20X16)

€ 16.50

7

4353124F00
ref: 7

BAR,FR FOOTREST,R

€ 32.50

8

4354124F00
ref: 8

BAR,FR FOOTREST,L

€ 32.50

9

4355024F00
ref: 9

RUBBER,FOOTREST BAR

€ 16.50

10

0920808016
ref: 10

PIN

€ 4.00

11

0833211063
ref: 11
08332-1106A

E.RING

€ 2.00

12

0944818022
ref: 12

SPRING

€ 3.50

13

4353631E20
ref: 13

BALANCER,FR FOOTREST LWR

€ 31.50

14

0214205353
ref: 14

SCREW

€ 2.00

15

0214205253
ref: 15
02142-0525B

SCREW

€ 2.50

16

4357648B02
ref: 16

BOLT,BANK SENSOR

€ 4.00

17

4357648B20
ref: 17

BOLT,BANK SENSOR

€ 8.00

18

4360024F00
ref: 18

FOOTREST ASSY,PILLION,R

€ 240.50

19

4370024F00
ref: 19

FOOTREST ASSY,PILLION,L

€ 166.00

20

4361033E11
ref: 20

BAR,PILLION FOOTREST,R

€ 44.00

21

4362033E11
ref: 21

BAR,PILLION FOOTREST,L

€ 44.00

22

0920806007
ref: 22

PIN

€ 3.00

23

0944005005
ref: 23

SPRING

€ 1.50

24

0611107004
ref: 24

BALL

€ 1.50

25

4381633E21
ref: 25

PLATE,PILLION FOOT,R

€ 15.00

26

4382633E22
ref: 26

PLATE,PILLION FOOT,L

€ 15.00

27

0833211043
ref: 27
08332-1104A

E-RING

€ 2.00

28

0910608121
ref: 28

BOLT(8X30)

€ 3.50

all assemblies
