REAR SWINGING ARM

GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

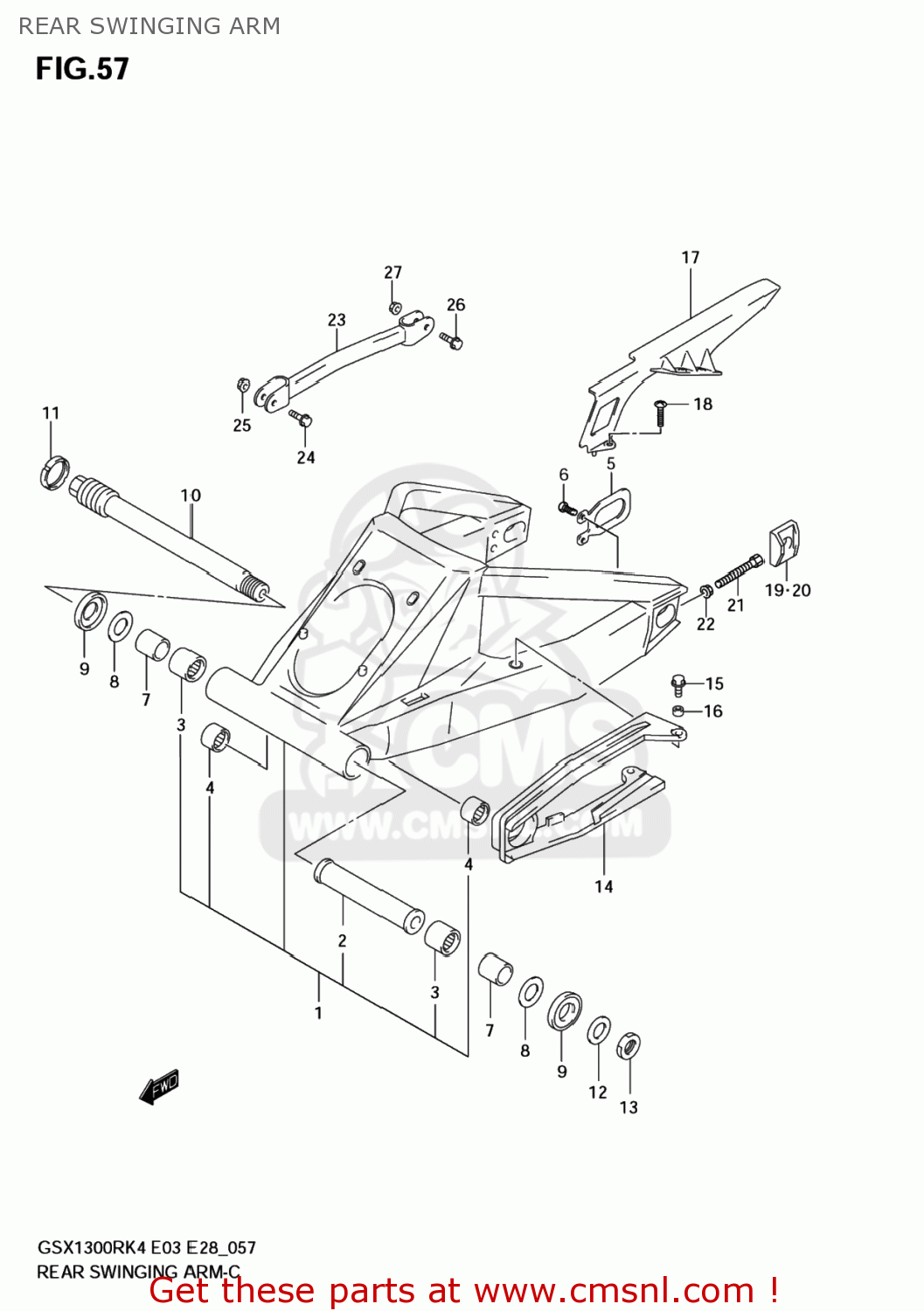

Rear swinging arm diagram GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

REAR SWINGING ARM GSX1300RZ HAYABUSA 2004 (K4) USA (E03)
REAR SWINGING ARM GSX1300RZ HAYABUSA 2004 (K4) USA (E03)
REAR SWINGING ARM GSX1300RZ HAYABUSA 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6100024F30
ref: 1-1
SWINGINGARM ASSY,RR
6100024F30
€ 1,852.00
1-2
6100024F20
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,767.00
1-3
6100024F20YAP
ref: 1-3
SWINGINGARM ASSY,RR
€ 1,595.50
2
6128133E10
ref: 2
61281-33E20
SPACER,REAR SWING PIVOT,CENTER
6128133E10
€ 26.00
3
0926330040
ref: 3
BEARING(30X40X25)
0926330040
€ 31.50
4
0926320071
ref: 4
BEARING(20X27X23.5)
0926320071
€ 21.50
5
6112433E00
ref: 5
PLATE,RR SWING ARM BRKT
6112433E00
€ 3.50
6-1
0214206163
ref: 6-1
02142-0616A
SCREW
0214206163
€ 2.50
6-2
0912506073
ref: 6-2
SCREW(6X16)
0912506073
€ 3.00
7
6125117E10
ref: 7
SPACER,REAR SWING ARM PIVOT
6125117E10
€ 7.00
8
0821125481
ref: 8
WASHER
0821125481
€ 5.50
9
6126217E10
ref: 9
DUST SEAL,RR SWGARM PIVOT
6126217E10
€ 6.50
10
6121116G00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 74.00
11
6121440C31
ref: 11
NUT,RR SWGARM PIVOT BOLT
6121440C31
€ 16.50
12
0916025070
ref: 12
WASHER(25.2X42X3.2)
0916025070
€ 4.50
13
0915925001
ref: 13
09159-25003
NUT
0915925001
€ 29.00
14
6127324F00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
6127324F00
€ 43.00
15
0911606152
ref: 15
BOLT(6X20)
0911606152
€ 2.00
16
0918006306
ref: 16
SPACER(6.5X9X5)
0918006306
€ 2.00
17
6131133E01
ref: 17
CASE,CHAIN
6131133E01
€ 30.00
18
0913906083
ref: 18
SCREW(6X16)
0913906083
€ 2.50
19
6144633E10
ref: 19
ADJUSTER,CHAIN,L
€ 42.50
20
6144533E00
ref: 20
ADJUSTER,CHAIN,R
6144533E00
€ 42.00
21
0910008287
ref: 21
BOLT(8X50)
0910008287
€ 3.00
22-1
0831610083
ref: 22-1
08316-1008B
NUT
0831610083
€ 3.00
22-2
083161008B
ref: 22-2
NUT
083161008B
€ 3.00
23
6431024F00
ref: 23
TORQUELINK,RR
6431024F00
€ 53.00
24
0911108085
ref: 24
BOLT(8X35.5)
0911108085
€ 5.50
25-1
0831931087
ref: 25-1
NUT
0831931087
€ 2.50
25-2
083193108A
ref: 25-2
NUT
083193108A
€ 2.50
26
0910310019
ref: 26
BOLT(10X37)
0910310019
€ 2.50
27-1
0831931107
ref: 27-1
NUT
0831931107
€ 3.00
27-2
083193110A
ref: 27-2
NUT
083193110A
€ 3.00
