FRONT CALIPER

GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

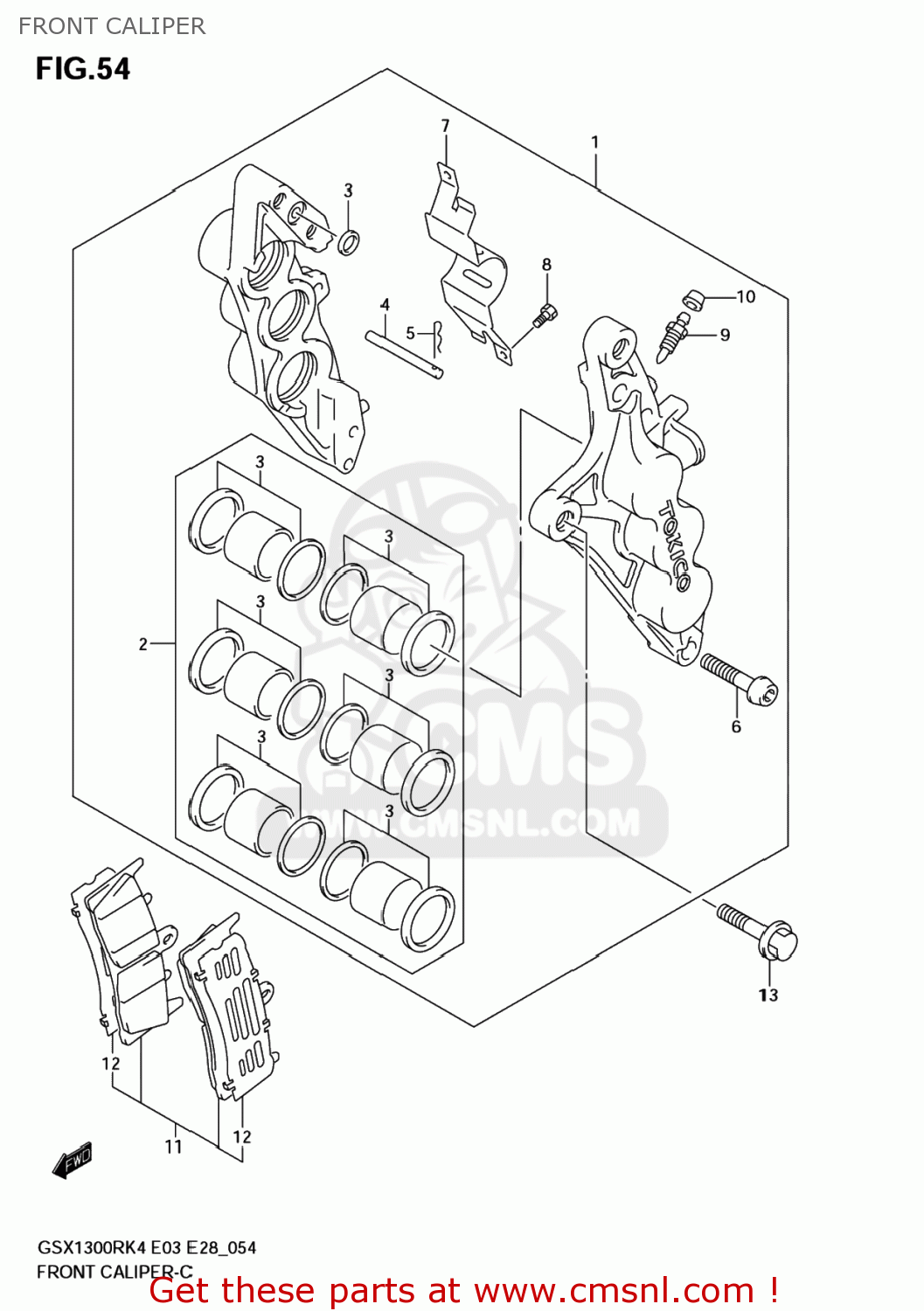

Front caliper diagram GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

FRONT CALIPER GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

FRONT CALIPER GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5910033E40999
ref: 1-1

CALIPER ASSY,FR,R(GOLD)

€ 764.50

1-2

5930033E40999
ref: 1-2

CALIPER ASSY,FR,L(GOLD)

€ 764.50

2

5930133861
ref: 2

PISTON SET

€ 222.00

3

5930033881
ref: 3

SEAL SET,PISTON

€ 60.50

4

6914146E01
ref: 4

PIN,PAD

€ 9.00

5

6914245000
ref: 5

CLIP,PAD PIN

€ 4.50

6

5914518G00
ref: 6

BOLT

€ 7.50

7

5915146E00
ref: 7

COVER,CALIPER

€ 27.00

8

5915322D00
ref: 8

SCREW

€ 4.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5930233860
ref: 11

PAD & SHIM SET (NAS)

€ 65.50

12

5917133E00
ref: 12

SHIM,PAD

€ 14.00

13

0910310320
ref: 13

BOLT(10X30)

€ 8.00
