FRONT FENDER (MODEL K4)

GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

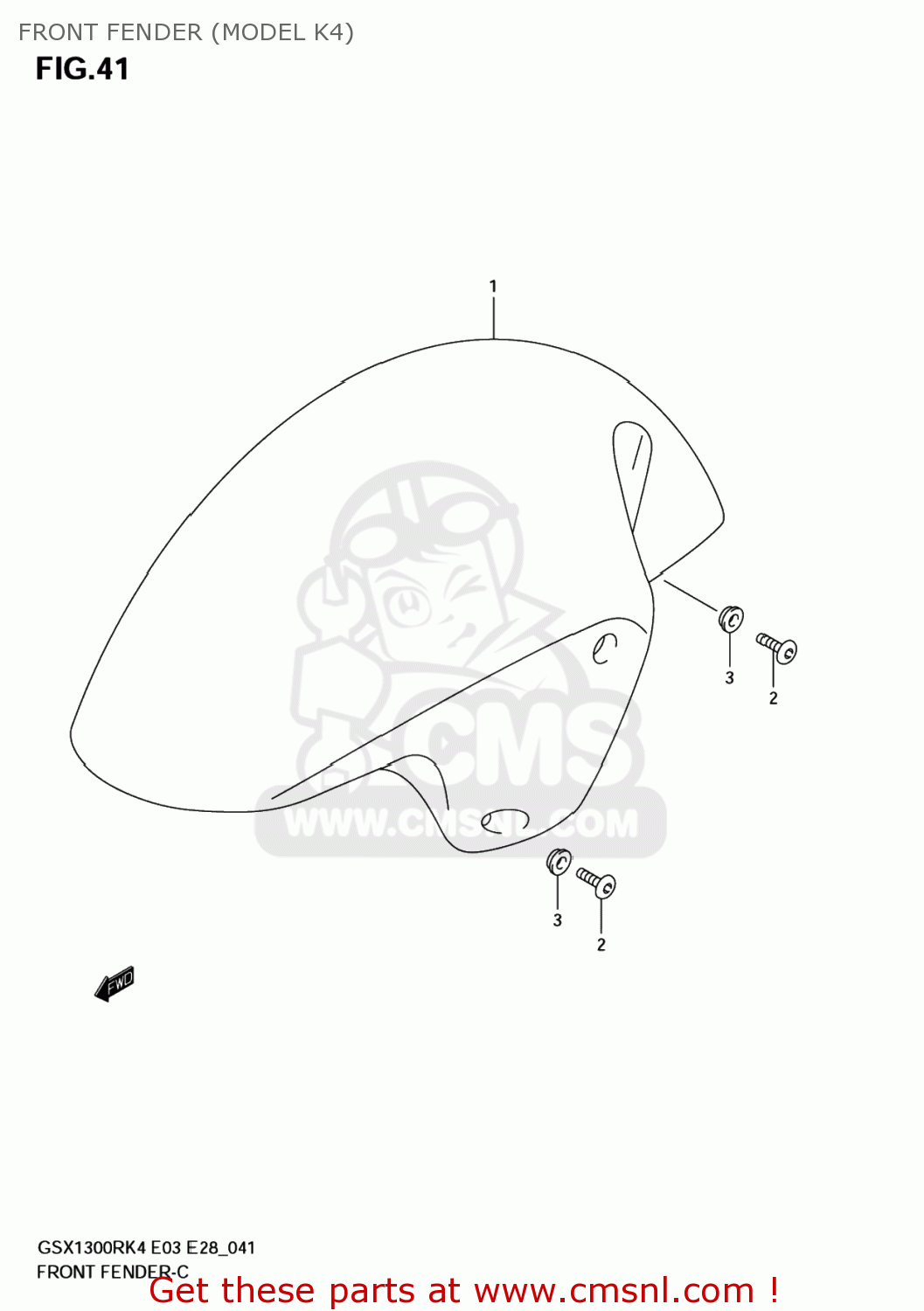

Front fender (model k4) diagram GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

FRONT FENDER (MODEL K4) GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

FRONT FENDER (MODEL K4) GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311024F00YBA
ref: 1-1

FENDER,FR

€ 250.50

1-2

5311024F00YAY
ref: 1-2

FENDER,FR

€ 786.00

1-3

5311024F00YU7
ref: 1-3

FENDER,FR

€ 0.00

2

0913906030
ref: 2

SCREW(6X16)

€ 3.50

3

0916106021
ref: 3

WASHER(6.3X16X1.5)

€ 2.50
