HEADLAMP

GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

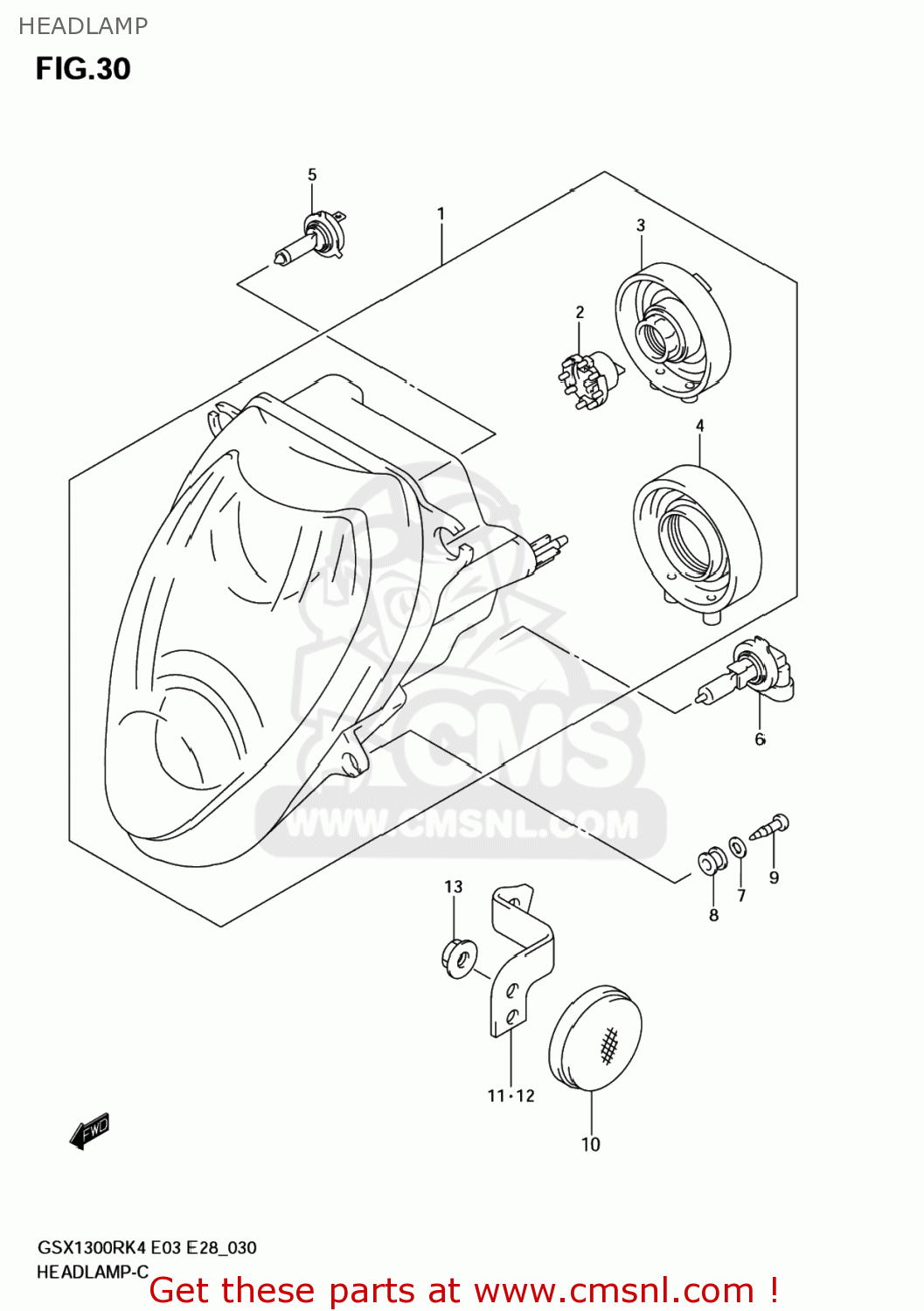

Headlamp diagram GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

HEADLAMP GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

HEADLAMP GSX1300RZ HAYABUSA 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510024F01999
ref: 1

HEADLAMP ASSY

€ 531.50

2

3517524F00
ref: 2

ADAPTER ASSY

€ 16.00

3

3512524F10
ref: 3

SOCKET,COVER

€ 20.00

4

3512524F00
ref: 4

SOCKET,COVER

€ 22.50

5

0947112188
ref: 5

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

5

0947112188
ref: 5

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

6

0947112151
ref: 6

BULB(12V60W,HB3,#9005)

€ 56.50

7

0916005045
ref: 7

WASHER(5.5X18X1)

€ 2.00

8

0932009039
ref: 8

CUSHION

€ 6.00

9

035110516B
ref: 9

SCREW

€ 2.50

10

3595014A10
ref: 10
35950-14A11

REFLECTOR,REFLEX

€ 11.00

11

3595602F00
ref: 11

BRACKET,FR SIDE RR,R

€ 6.50

12

3595702F00
ref: 12

BRACKET,FR SIDE RR,L

€ 6.50

13

083161005B
ref: 13

NUT

€ 2.50
