GSX1300RZ HAYABUSA 2007 (K7) USA (E03)

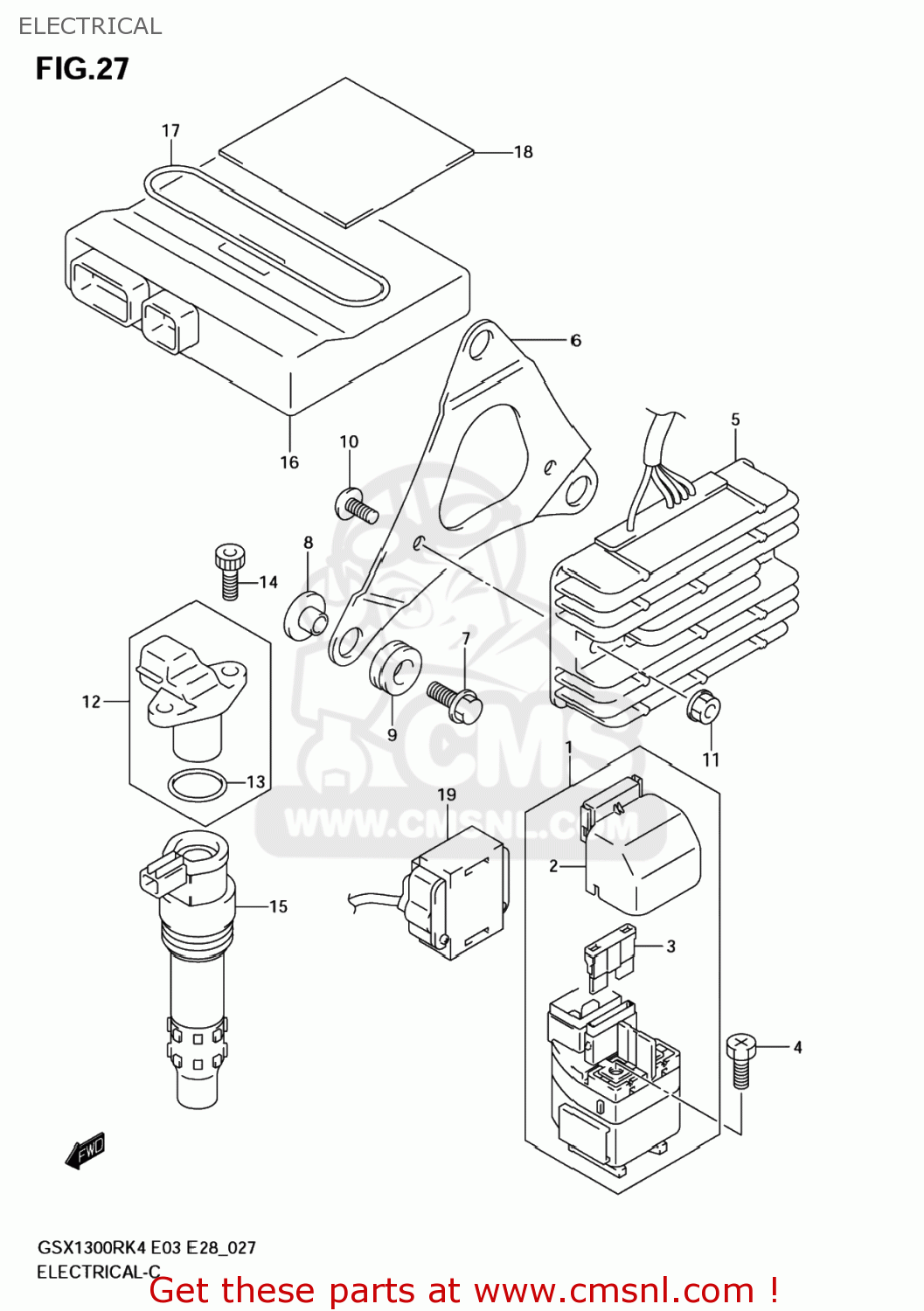

Electrical diagram GSX1300RZ HAYABUSA 2007 (K7) USA (E03)
ELECTRICAL GSX1300RZ HAYABUSA 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280033E20
ref: 5
32800-33E21
RECTIFIER ASY
€ 371.00
6
3281124F00
ref: 6
BRACKET,RECTIFIER
€ 31.50
7
0911606025
ref: 7
BOLT(6X25)
€ 2.50
8
0916906064
ref: 8
WASHER
€ 4.50
9
0932008051
ref: 9
09320-08066
CUSHION
€ 7.50
10
021420620B
ref: 10
SCREW
€ 2.00
11
083161006B
ref: 11
NUT
€ 2.50
12
3216002F10
ref: 12
SENSOR ASSY,CAM POSITION
€ 127.50
13
3216102F00
ref: 13
PACKING (NAS)
€ 8.00
14
071300616B
ref: 14
BOLT
€ 3.00
15
3341024F10
ref: 15
COIL ASSY,IGNITION
€ 139.00
16
3292024FK0
ref: 16
CONTROL UNIT,FI
€ 1,551.00
17
3365112910
ref: 17
BAND,BATTERY
€ 6.00
18
3365205300
ref: 18
PROTECTOR(40X40X16)
€ 2.50
18
3365205300
ref: 18
PROTECTOR(40X40X16)
€ 2.50
19
3396002F00
ref: 19
SENSOR ASSY,FUEL CUT
€ 85.00
