TURNSIGNAL LAMP (MODEL K4)

GSX1300RZ HAYABUSA 2007 (K7) USA (E03)

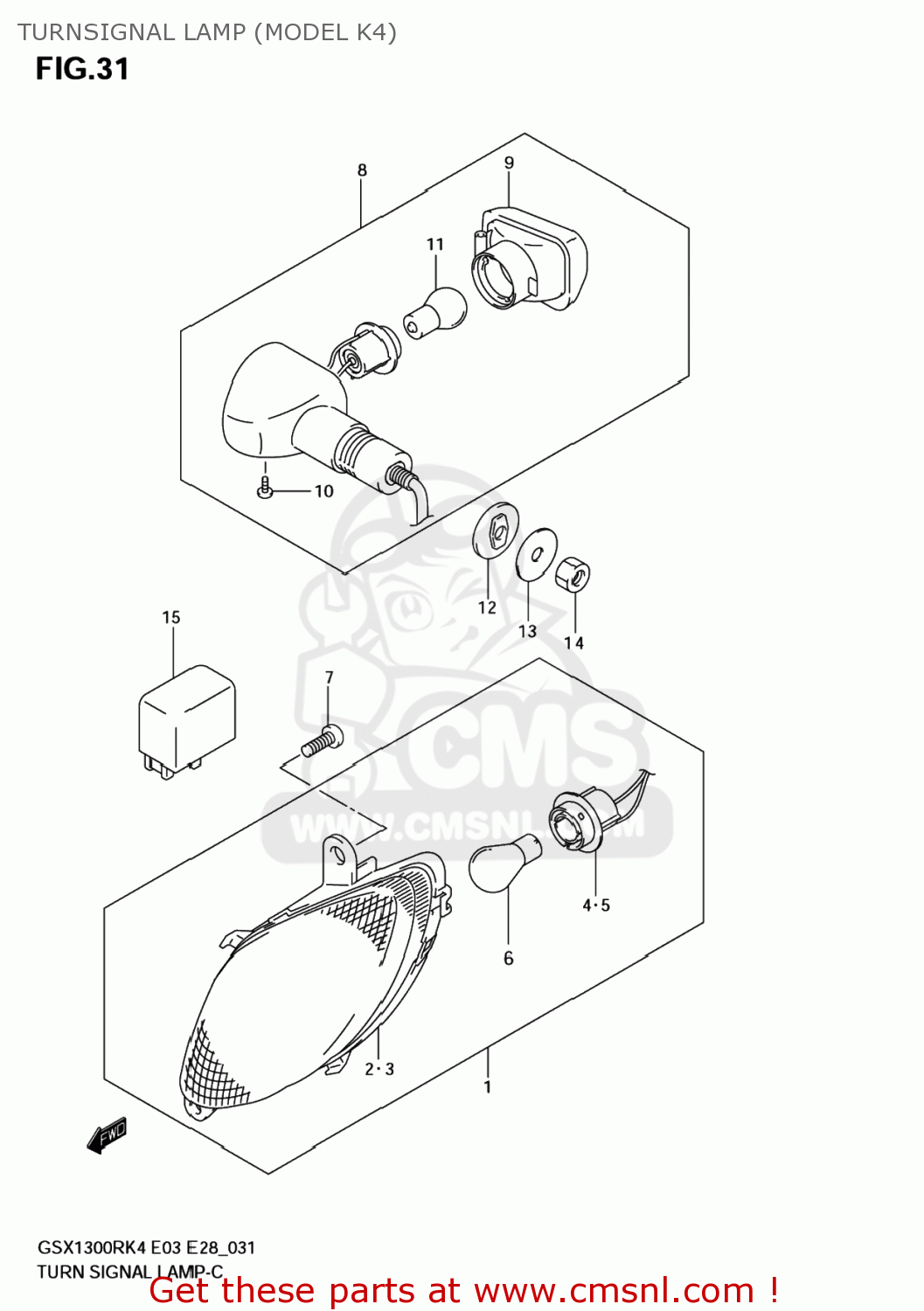

Turnsignal lamp (model k4) diagram GSX1300RZ HAYABUSA 2007 (K7) USA (E03)

TURNSIGNAL LAMP (MODEL K4) GSX1300RZ HAYABUSA 2007 (K7) USA (E03)
TURNSIGNAL LAMP (MODEL K4) GSX1300RZ HAYABUSA 2007 (K7) USA (E03)
TURNSIGNAL LAMP (MODEL K4) GSX1300RZ HAYABUSA 2007 (K7) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560124F00
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
3560124F00
€ 79.50
1-2
3560224F00
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
3560224F00
€ 77.50
2
3561024F00
ref: 2
LAMP UNIT,R
3561024F00
€ 79.50
3
3563024F00
ref: 3
LAMP UNIT,L
3563024F00
€ 77.50
4
3561824F00
ref: 4
SOCKET & CORD,R
3561824F00
€ 25.50
5
3563824F00
ref: 5
SOCKET & CORD,L
3563824F00
€ 24.00
6
0947112045
ref: 6
BULB(12V21W)
0947112045
€ 5.00
7
0354105163
ref: 7
03541-0516A
SCREW
0354105163
€ 1.50
8-1
3560333E30
ref: 8-1
LAMP ASSY,RR TURNSIGNAL,R
3560333E30
€ 70.50
8-2
3560433E30
ref: 8-2
LAMP ASSY,RR TURNSIGNAL,L
3560433E30
€ 70.50
9
3561033E00
ref: 9
LAMP UNIT
3561033E00
€ 31.00
10
0324204123
ref: 10
03242-0412B
SCREW
€ 2.00
11
0947112045
ref: 11
BULB(12V21W)
0947112045
€ 5.00
12
3569517C00
ref: 12
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
13
0916010501
ref: 13
WASHER(10.5X30X2.3)
0916010501
€ 2.50
14
0831000103
ref: 14
08310-0010A
NUT
0831000103
€ 2.00
15
3861003F00
ref: 15
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
