CRANKCASE COVER (MODEL Z)

GSX250E 1982 (Z) GENERAL EXPORT (E01)

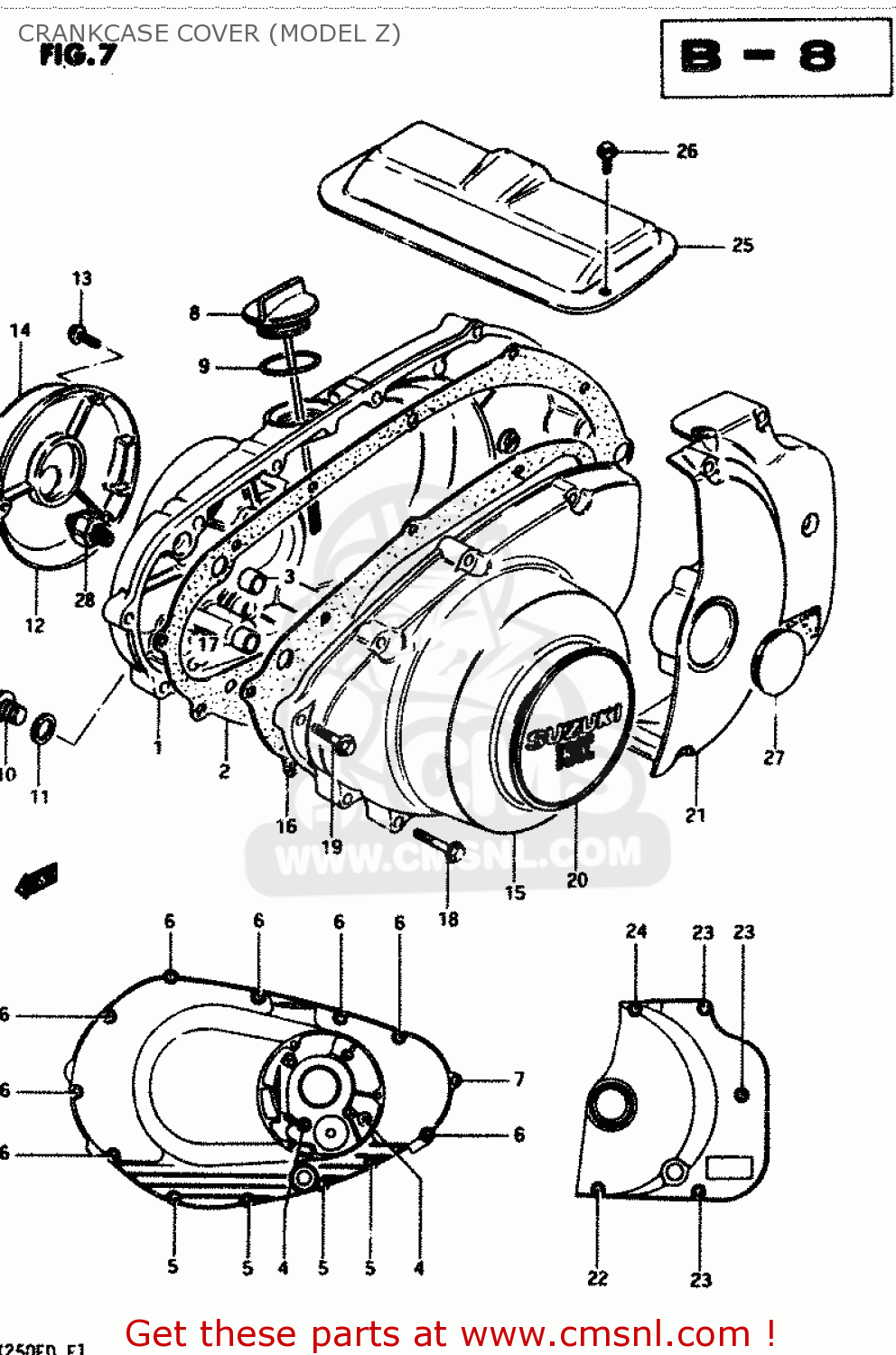

Crankcase cover (model z) diagram GSX250E 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL Z) GSX250E 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL Z) GSX250E 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1134111401
ref: 1

COVER,CLUTCH

€ 103.00

2

1148211400
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 19.00

3

0920613001
ref: 3

PIN

€ 2.50

4

0154706508
ref: 4

BOLT (6X50)

€ 2.50

5

0154706458
ref: 5

BOLT

€ 2.50

6

0154706358
ref: 6

BOLT (6X35)

€ 2.50

7

0154706258
ref: 7

BOLT

€ 2.50

8

1197011400
ref: 8

GAUGE,OIL LEVEL

€ 10.50

9

0928027002
ref: 9

O-RING

€ 3.00

10

0924714012
ref: 10

PLUG (14X12)

€ 3.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12

1138144003
ref: 12

COVER,CONTACT BREAKER

€ 48.50

13

0154705208
ref: 13

BOLT (5X20)

€ 2.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

1135111402
ref: 15

COVER,MAGNETO

€ 94.00

16

1148311400
ref: 16

GASKET,MAGNETO COVER (MCA)

€ 13.00

17

0920613001
ref: 17

PIN

€ 2.50

18

0154706308
ref: 18

BOLT (6X30)

€ 2.50

19

0154706258
ref: 19

BOLT

€ 2.50

20

6823549500
ref: 20

EMBLEM

€ 21.50

21

1136111402
ref: 21

COVER,ENGINE SPROCKET

€ 62.00

22

0154706608
ref: 22

BOLT

€ 2.50

23

0154706408
ref: 23

BOLT (6X40)

€ 2.50

24

0154706308
ref: 24

BOLT (6X30)

€ 2.50

25

1138211400
ref: 25

COVER,STARTER MOTOR

€ 17.50

26

0154705088
ref: 26

BOLT

€ 2.00

27

0925030003
ref: 27

CAP(OD:36)

€ 4.00

28

3782033200
ref: 28

SWITCH ASSEMBLY

€ 29.00
