GENERATOR
GSX250E 1982 (Z) GENERAL EXPORT (E01)

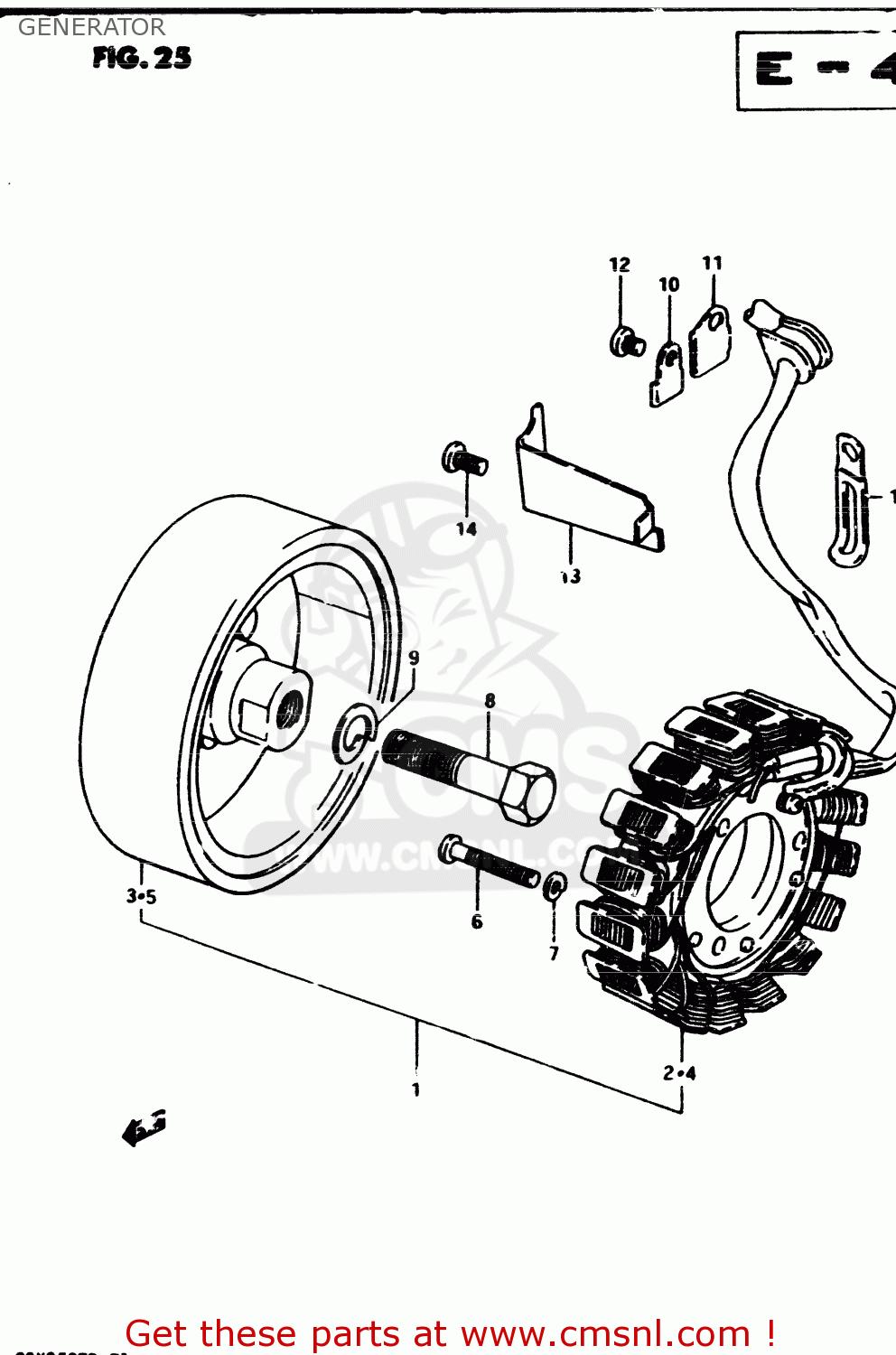

Generator diagram GSX250E 1982 (Z) GENERAL EXPORT (E01)
GENERATOR GSX250E 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3140047020
ref: 1
MODEL Z
GENERATOR ASSEMBLY
€ 371.00
2
3140147020
ref: 2
MODEL Z
STATOR ASSEMBLY
€ 371.00
3
3140245090
ref: 3
MODEL Z
ROTOR ASSEMBLY
€ 385.00
4
3140147030
ref: 4
MODEL D
STARTER ASSY
€ 371.00
5
3140247030
ref: 5
MODEL D
ROTOR ASSEMBLY
€ 385.00
6
0211205308
ref: 6
SCREW
€ 1.50
7
0832121058
ref: 7
LOCK WASHER
€ 2.00
8
0110712458
ref: 8
BOLT 12X45
€ 5.50
9
0832131128
ref: 9
WASHER,LOCK 12
€ 2.50
10
3149745000
ref: 10
CLAMP,GENERATOR LEAD WIRE
€ 1.50
11
3149711400
ref: 11
CLAMP,GENERATOR LEAD WIRE
€ 1.50
12
0211205068
ref: 12
SCREW
€ 4.00
13
3149845000
ref: 13
CLAMP,GENERATOR LEAD WIRE
€ 2.00
14
0211206108
ref: 14
SCREW
€ 1.50
15
0940406401
ref: 15
CLAMP L:35
€ 2.50
