CRANKSHAFT BALANCER

GSX250E 1982 (Z) GENERAL EXPORT (E01)

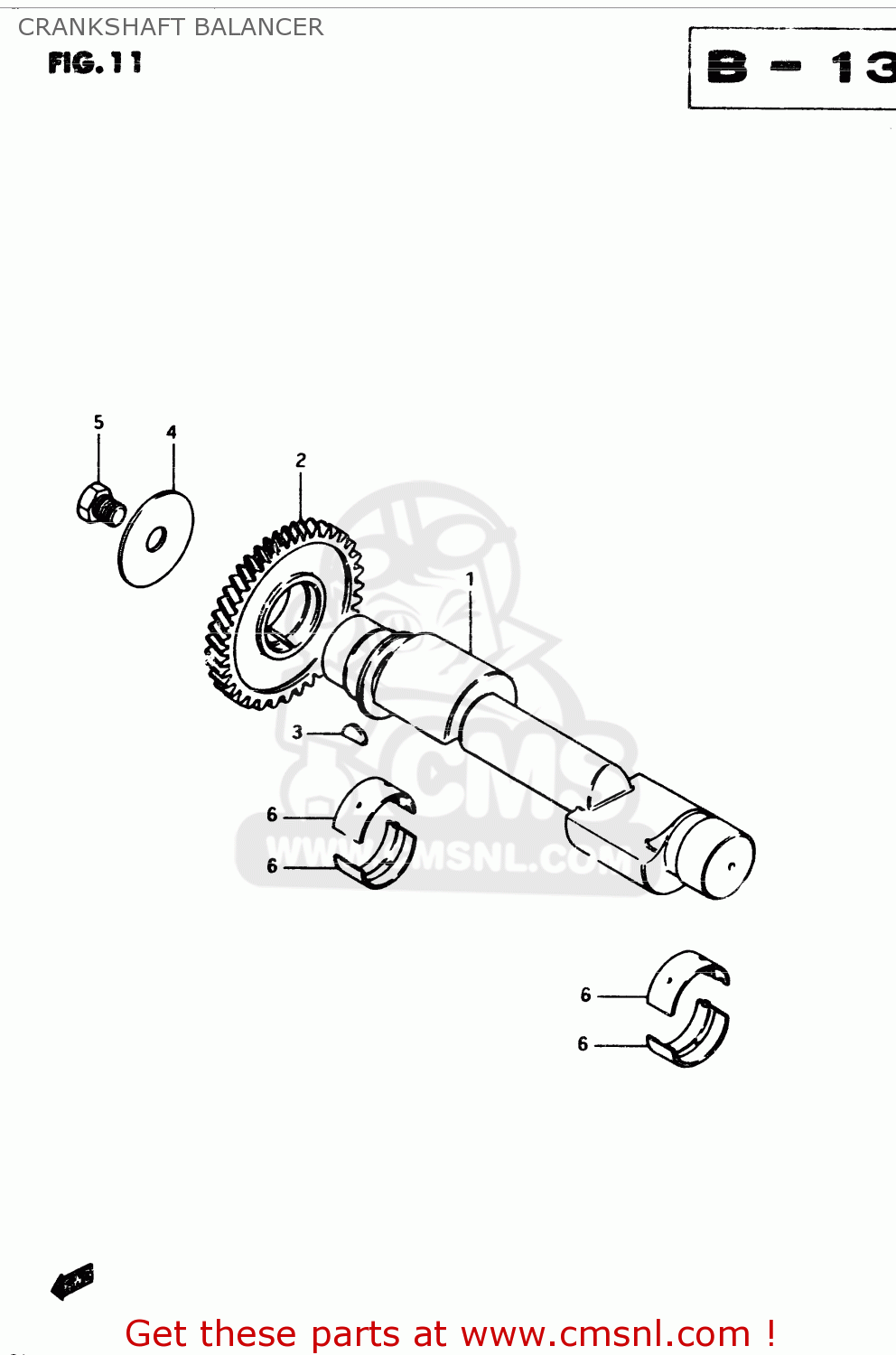

Crankshaft balancer diagram GSX250E 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1265011410
ref: 1

BALANCER,CRANKSHAFT

€ 181.50

1266611900
ref: 2

GEAR,CRANK BALANCER

€ 93.00

0834131049
ref: 3

KEY 4MM

€ 3.50

0916012039
ref: 4

WASHER(12X50X3)

€ 8.00

0110712208
ref: 5

BOLT

€ 3.00

6-1

1222911400010
ref: 6-1

BEARING (GREEN)

€ 9.50

6-2

1222911400020
ref: 6-2

METAL CRANKSHAFT (BROWN)

€ 12.00

6-3

1222911400030
ref: 6-3

METAL CRANKSHAFT (BLACK)

€ 10.00

6-4

1222911400040
ref: 6-4

METAL CRANKSHAFT (YELLOW)

€ 10.50
