TRANSMISSION
GSX250E 1982 (Z) GENERAL EXPORT (E01)

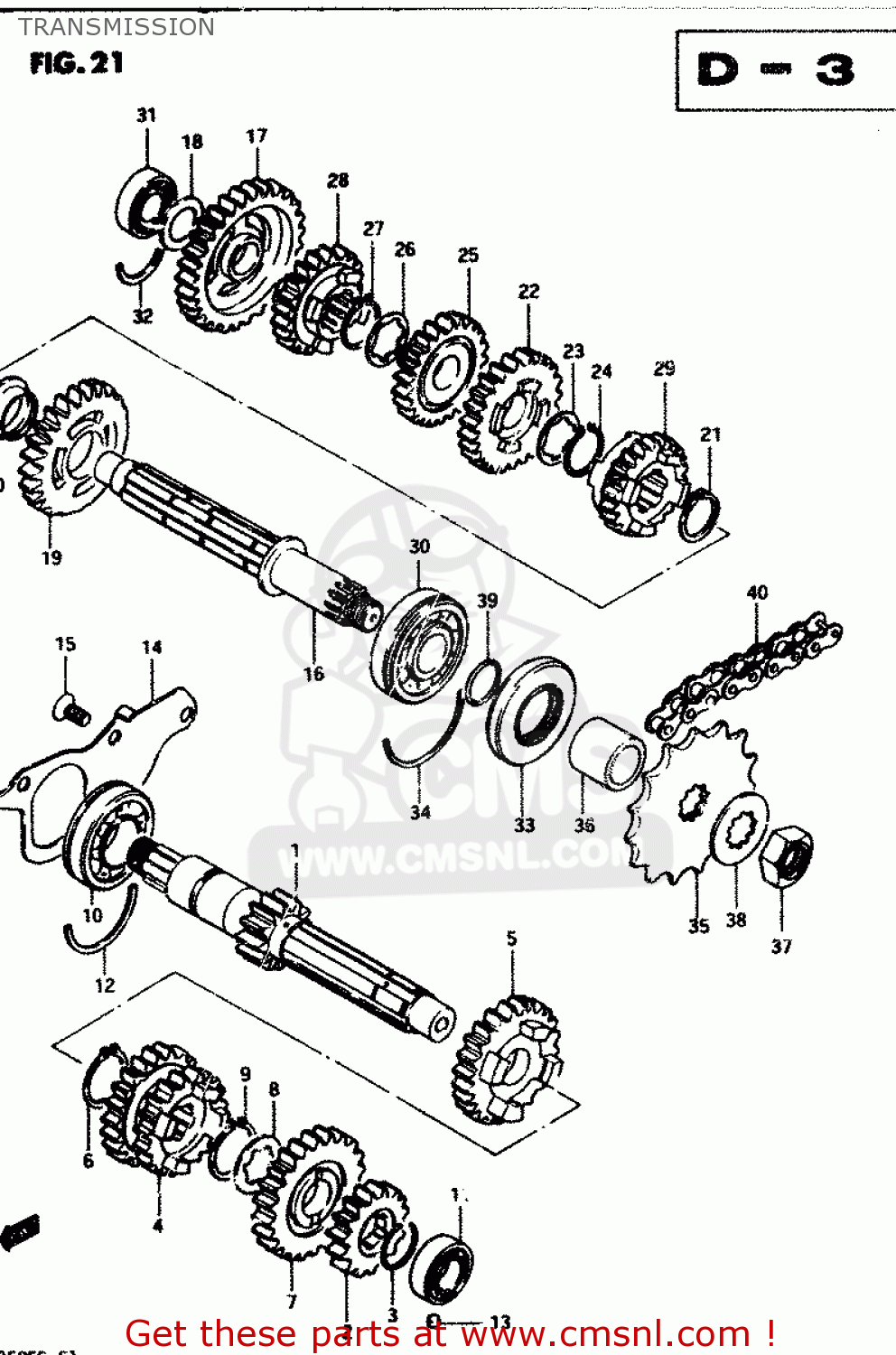

Transmission diagram GSX250E 1982 (Z) GENERAL EXPORT (E01)
TRANSMISSION GSX250E 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2412111402
ref: 1
SHAFT,COUNTER
€ 141.50
2
2422111300
ref: 2
GEAR,SECOND DRIVE
€ 54.00
3
0938022007
ref: 3
CIRCLIP
€ 2.50
4
2423111300
ref: 4
GEAR,THIRD/FOURTH DRIVE
€ 85.00
5
2425111300
ref: 5
GEAR,FIFTH DRIVE
€ 46.00
6
0833111229
ref: 6
CIRCLIP
€ 2.00
7
2426111300
ref: 7
GEAR,SIXTH DRIVE
€ 78.50
8
0916722011
ref: 8
WASHER,LOCK
€ 3.00
9
0833111229
ref: 9
CIRCLIP
€ 2.00
10
0816062050
ref: 10
BEARING
€ 21.50
11
0926317015
ref: 11
ROLLER BEARING (17X31X1
€ 16.00
12
0939052002
ref: 12
C RING
€ 3.00
13
0422107129
ref: 13
PIN
€ 1.50
14
2474111400
ref: 14
RETAINER,BEARING
€ 9.00
15
0212206128
ref: 15
SCREW
€ 3.00
16
2413111500
ref: 16
SHAFT,DRIVE
€ 0.00
17
2431011300
ref: 17
GEAR,FIRST DRIVEN
€ 54.00
18
0821115241
ref: 18
WASHER,THRUST
€ 4.00
19
2432111400
ref: 19
GEAR,SECOND DRIVEN
€ 66.00
20
0930122002
ref: 20
BUSH
€ 7.50
21
0833111229
ref: 21
CIRCLIP
€ 2.00
22
2433111400
ref: 22
GEAR,THIRD DRIVEN
€ 51.00
23
0916722011
ref: 23
WASHER,LOCK
€ 3.00
24
0833111229
ref: 24
CIRCLIP
€ 2.00
25
2434111300
ref: 25
GEAR,FOURTH DRIVEN
€ 62.50
26
0916722011
ref: 26
WASHER,LOCK
€ 3.00
27
0833111229
ref: 27
CIRCLIP
€ 2.00
28
2435111300
ref: 28
GEAR,FIFTH DRIVEN
€ 49.00
29
2436111300
ref: 29
GEAR,SIXTH DRIVEN
€ 91.00
30
0816063040
ref: 30
BEARING
€ 23.00
31
0812362020
ref: 31
BEARING, RH
€ 14.50
32
0939035001
ref: 32
C RING
€ 3.00
33
0928328012
ref: 33
SEAL,OIL(28X52X11.5)
€ 16.00
34
0939052002
ref: 34
C RING
€ 3.00
35
2751111400
ref: 35
SPROCKET,ENGINE(NT:14)
€ 18.00
36
0918020083
ref: 36
SPACER (20X28X25.2)
€ 0.00
37
0915916006
ref: 37
NUT
€ 8.50
38
0916720018
ref: 38
WASHER,LOCK
€ 2.50
39
0928020001
ref: 39
O RING(D:1,ID:19.5)
€ 2.00
40
2760011531
ref: 40
FROM 27600-11530
CHAIN, DRIVE (520X11OLE)
€ 80.00
