FOOTREST
GSX250E 1982 (Z) GENERAL EXPORT (E01)

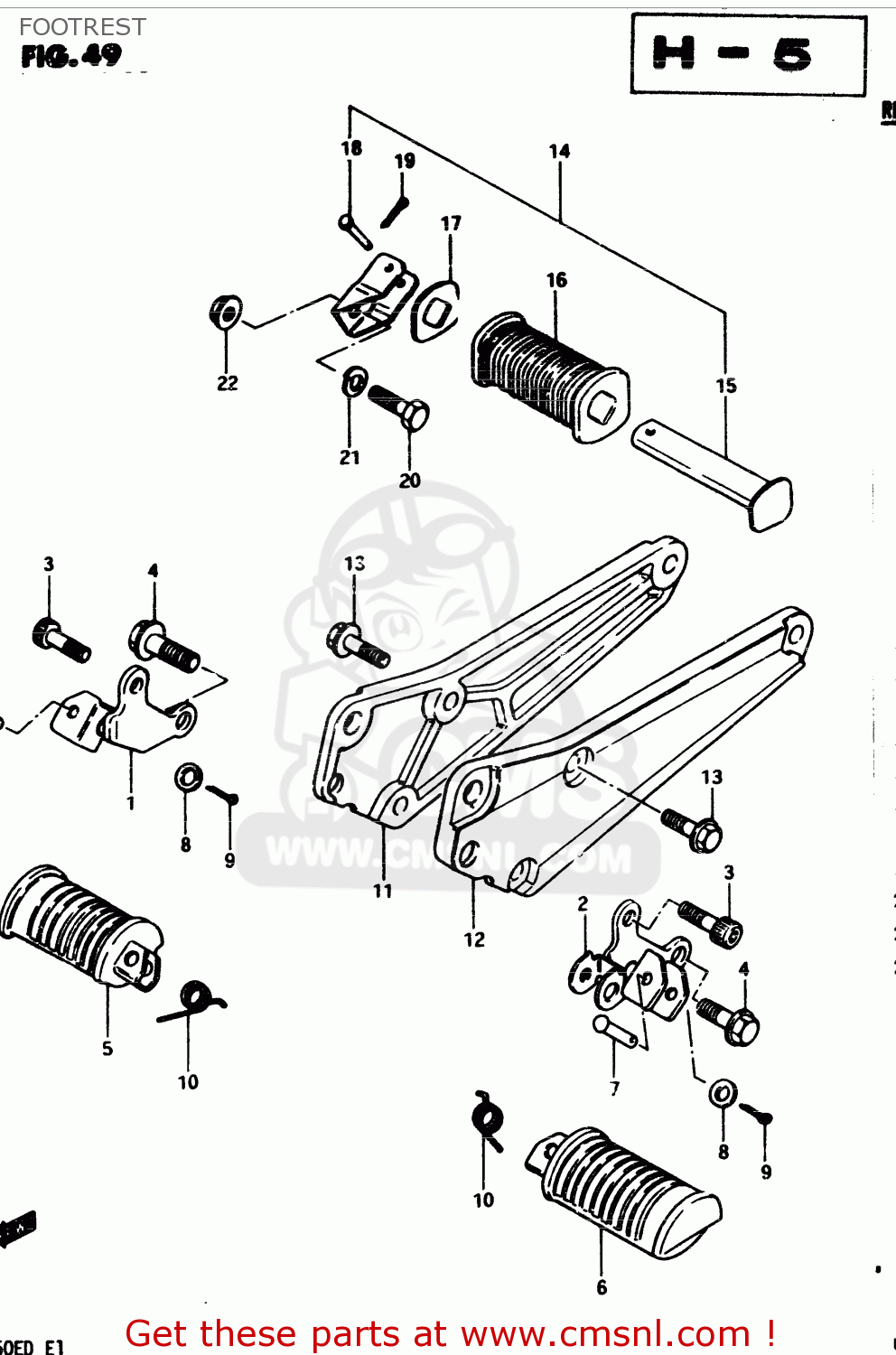

Footrest diagram GSX250E 1982 (Z) GENERAL EXPORT (E01)
FOOTREST GSX250E 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351044400
ref: 1-1
MODEL Z
BAR,FRONT FOOTREST
€ 50.50
1-2
4351044402
ref: 1-2
MODEL D
BAR,FR FOOTREST,R
€ 50.50
2-1
4352011500
ref: 2-1
MODEL Z
BAR, FOOTREST LH
€ 71.50
2-2
4352011502
ref: 2-2
MODEL D
BAR,FR FOOTREST,L
€ 71.50
3
0910608017
ref: 3
BOLT
€ 3.00
4
0152710258
ref: 4
BOLT
€ 3.00
5
4355049002
ref: 5
RUBBER,FRONT FOOTREST
€ 22.50
6
4356049002
ref: 6
FOOTREST
€ 22.50
7
0920008002
ref: 7
PIN
€ 2.00
8
0832211088
ref: 8
WASHER
€ 2.00
9
0411120208
ref: 9
PIN 20X20
€ 1.50
10
0944814012
ref: 10
SPRING
€ 3.00
11
4381144110
ref: 11
BRACKET,MUFFLER,RIGHT
€ 102.00
12
4382144110
ref: 12
BRACKET,MUFFLER,LEFT
€ 120.00
13
0151710258
ref: 13
BOLT
€ 3.00
14-1
4360034500
ref: 14-1
FOOTREST ASSY,PILLION,R
€ 118.00
14-2
4370034500
ref: 14-2
FOOTREST ASSY,PILLION,L
€ 107.50
15-1
4361049201
ref: 15-1
BAR,REAR FOOTREST,RIGHT
€ 8.00
15-2
4362049201
ref: 15-2
BAR,REAR FOOTREST,LEFT
€ 23.00
16
4361249201
ref: 16
RUBBER,PILLION FOOTREST
€ 30.50
17
4363149201
ref: 17
WASHER,FOOTREST RUBBER
€ 16.00
18
0920006010
ref: 18
PIN
€ 2.50
19
0411120208
ref: 19
PIN 20X20
€ 1.50
20
0110710358
ref: 20
BOLT,M10X1.25X
€ 2.50
21
0832121108
ref: 21
LOCK WASHER
€ 2.00
22
0831616108
ref: 22
NUT
€ 2.00
