BATTERY

GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

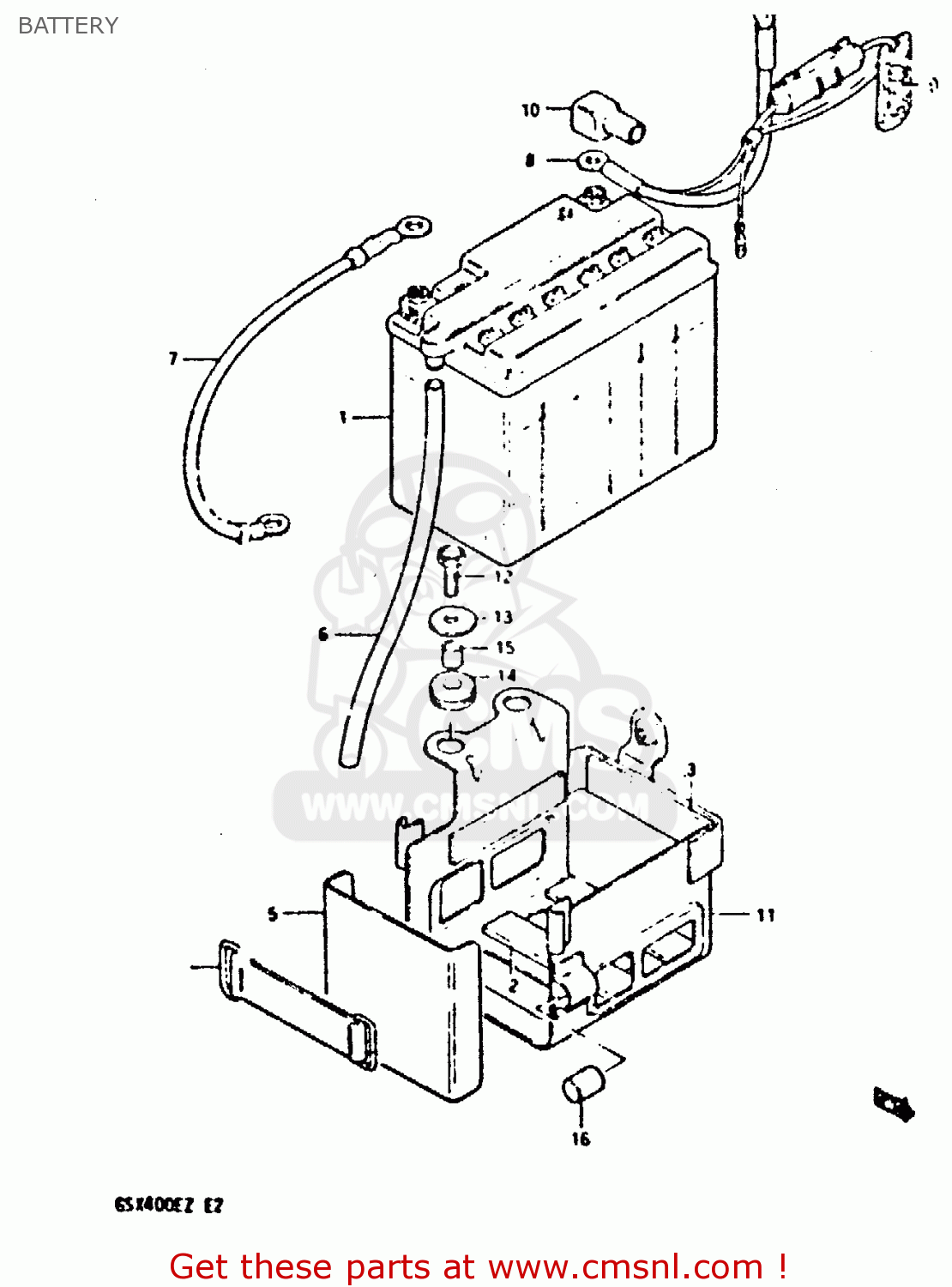

Battery diagram GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

prices are in EUR

ref

part #

description

quantity

3361011010
ref: 1

BATTERY(YB12B-B2,12V11.6A)

€ 93.50

3365249000
ref: 2

PROTECTOR(20X90)X4

€ 2.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0946200008
ref: 4

BAND

€ 4.50

3366144100
ref: 5

COVER,BATTERY

€ 4.50

3368031003
ref: 6

HOSE,BATTERY EXHAUST

€ 4.50

3385003201
ref: 7

LEAD WIRE,BATTERY(-)

€ 8.50

3674011500
ref: 8

FUSE CASE AND PLUS CABLE

€ 18.00

0948115001
ref: 9

FUSE(15A)

€ 3.00

3362445000
ref: 10

CAP,TERMINAL

€ 5.50

4154011500
ref: 11

HOLDER,BATTERY

€ 31.00

0110706208
ref: 12

BOLT

€ 2.00

0916006007
ref: 13

WASHER

€ 2.00

0932008001
ref: 14

CUSHION

€ 3.50

0918006011
ref: 15

SPACER (6.1X9X9)

€ 2.00

0932905006
ref: 16

CUSHION

€ 2.00
