MASTER CYLINDER

GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

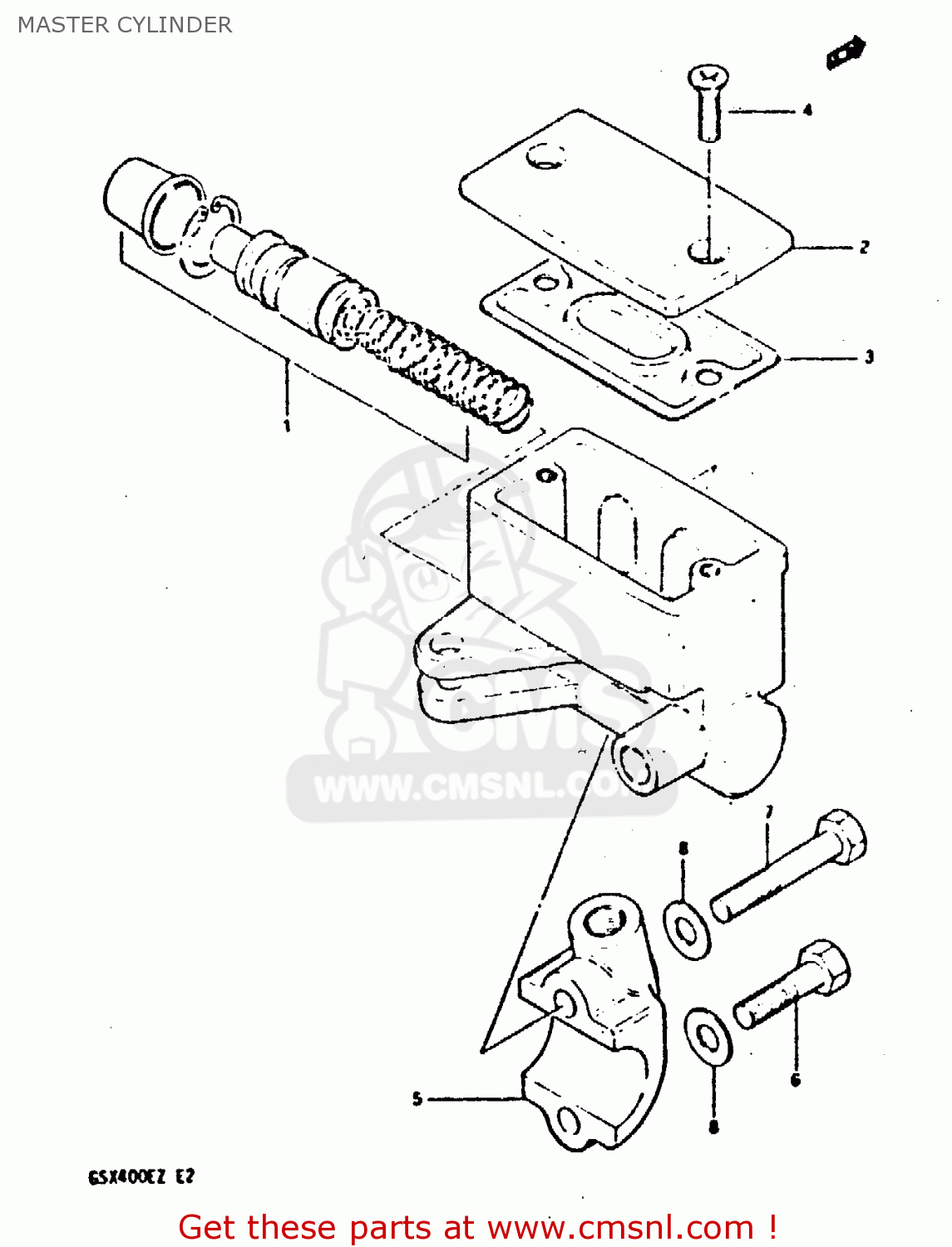

Master cylinder diagram GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

MASTER CYLINDER GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

MASTER CYLINDER GSX400S 1982 (Z) UNITED KINGDOM FRANCE (E02 E04)

prices are in EUR

ref

part #

description

quantity

0

5960044300
ref: 0

CYLINDER ASSY, MASTER

€ 210.50

1

5960045841
ref: 1

PISTON & CUP SET

€ 41.50

2

6966949300
ref: 2

CAP

€ 30.00

3

6966749300
ref: 3

6966749300

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706258
ref: 6

BOLT

€ 2.00

7

0110706408
ref: 7

BOLT 6X40

€ 2.00

8

0832121068
ref: 8

LOCK WASHER

€ 2.50
